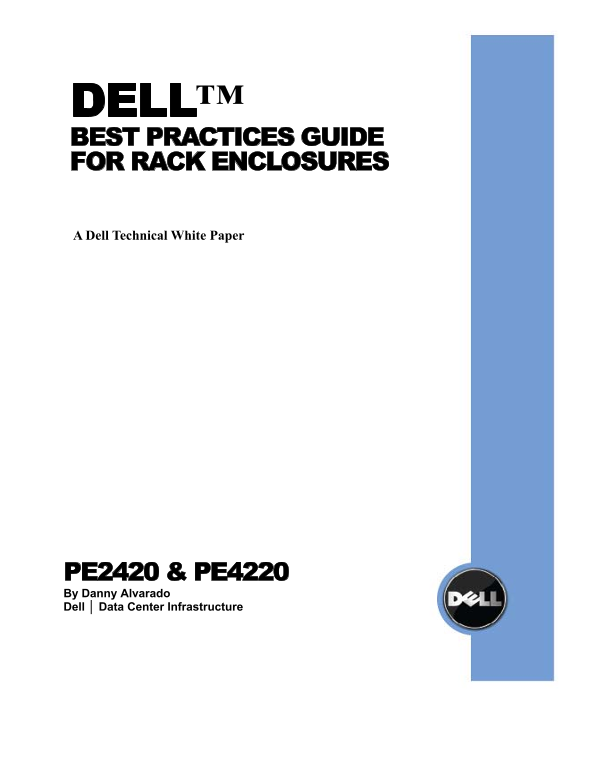

DELL™ BEST PRACTICES GUIDE FOR RACK ENCLOSURES
A Dell Technical White Paper
PE2420 & PE4220 By Danny Alvarado Dell │ Data Center Infrastructure
Page Summary Contents For Dell Best Practices Guide for Rack Enclosures
Page 1
DELL™ BEST PRACTICES GUIDE FOR RACK ENCLOSURES A Dell Technical White Paper PE2420 & PE4220 By Danny Alvarado Dell │ Data Center Infrastructure
Page 2
THIS WHITE PAPER IS FOR INFORMATIONAL PURPOSES ONLY, AND MAY CONTAIN TYPOGRAPHICAL ERRORS AND TECHNICAL INACCURACIES. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE AND IS PROV...
Page 3
Table of Contents Executive Summary ...................................................................................................4 Key Attributes ...................................................
Page 4
Executive Summary The Dell™ Power Edge™ Rack Enclosures are offered in two sizes, 24U (2420) and 42U (4220). The Dell 2420 and 4220 Rack Enclosures are designed to hold and protect server, network, an...
Page 5
The 4220 Rack Enclosure is a 42U rack that has the following dimensions shown in Figure 2. Figure 2: Dell 4220 Rack Enclosure Strength The new Dell Rack Enclosures have increased static load capacity ...
Page 6
Cooling The Dell 2420 and 4220 Rack Enclosures have been designed to provide the necessary thermal environment to help reduce inefficiency at the rack level in cooling your rack mount equipment in the...
Page 7
Figure 4: Rack Airflow Gap Allows Recirculation The 2420 and 4220 are designed to prevent the return path for hot air exhaust from traveling to the front of the rack. The sides are sealed with side cl...
Page 8
When you’re ready to remove the rack from the pallet, check the leveling feet inside the rack and be sure they are in the fully-retracted or upward position and not down towards the pallet before unbo...
Page 9
Figure 6: Leveling Feet Deployment Installing rack level stabilizers should be done next. The 4220 rack comes with a set of brackets in the rack that are used to provide stability when equipment is be...
Page 10
As shown in the installation guide included in the hardware kit, line up the stabilizers in front of the rack, then secure the stabilizers to the rack using the hardware provided in the kit. See Figur...
Page 11
Power Distribution Unit (PDU) Installation Rear Mount PDUs The Dell 4220 and 2420 Rack Enclosures have provisions to mount a larger variety of Power Distribution Units (PDUs) than the legacy rack encl...
Page 12
Figure 11: Rail Clearance to PDUs Zero U Mount PDUs The 2420 and 4220 racks still support the Dell zero U mount PDUs that mount in the sides of the rack. For PDUs with detachable input cables, simply ...
Page 13
Figure 12: Zero U Mount PDUs In order to install Zero U mount PDUs with hardwired cables and connectors that are too large to fit through the gap between the rear mounting rail and the PDU trays, foll...
Page 14
Figure 13: Installing Hardwired Zero U PDUs Cabling The Dell 2420 and 4220 Rack Enclosures have been designed with improved internal and external cable management features. Internal Cable Management T...
Page 15
Figure 14: Internal Cable Management Cable Rings Cabling is different when using rear-mount PDUs placed in PDU trays. If the user plans to separate power and data on opposite sides of the rack, then P...
Page 16
Figure 15: Cabling with Rear-mount PDUs Another option is to mount one PDU on each side of the rack. This involves a similar routing schemes to the one used above. If there is no need for redundant po...
Page 17
External cable management improvements include the enlarging and farthest-possible rear placement of top and bottom exits to accommodate a high density cable bundle. In addition, the removable tail ba...
