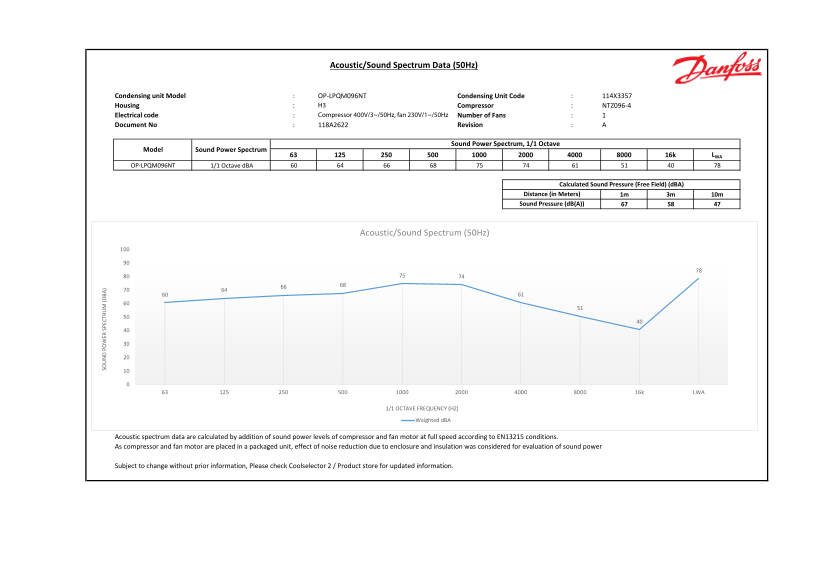

Page 1 Text Content
Acoustic/Sound Spectrum Data (50Hz)
Condensing unit Model OP-LPQM096NT Condensing Unit Code : 114X3357
Housing SO PO ER PE CT RU (D BA H3 Compressor : NTZ096-4 Electrical code Compressor 400V/3~/50Hz, fan 230V/1~/50Hz Number of Fans : 1 Document No 118A2622 Revision : A Sound Power Spectrum, 1/1 Octave Model Sound Power Spectrum 16k LWA OP-LPQM096NT 1/1 Octave d BA Calculated Sound Pressure (Free Field) (d BA) Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A)) Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ) Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power Subject to change without prior information, Please check Coolselector 2 / Product store for updated information.
