Danfoss Sound Spectrum for Optyma Plus OP-MPYM008MY Data Sheet
Summary
This detailed technical document provides comprehensive acoustic and sound power spectrum data for Model OP-MPYM008MY Condensing Units. It covers precise noise levels across a wide frequency range (50Hz to 16k Hz) measured at various distances. Designed for HVAC professionals, engineers, and system integrators, this guide ensures accurate selection based on operational noise requirements, verifying compliance under EN13215 testing standards.
Page 1 Text Content

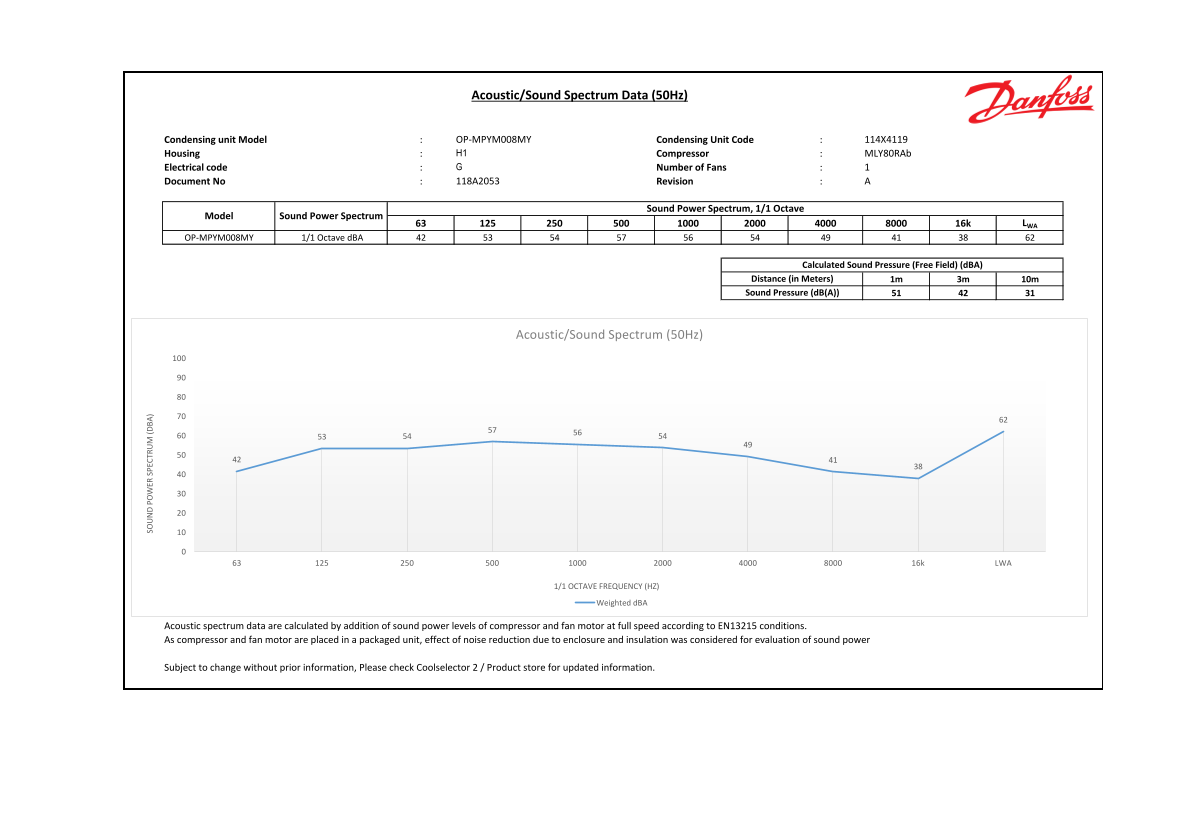

Acoustic/Sound Spectrum Data (50Hz)
Condensing unit Model OP-MPYM008MY Condensing Unit Code : 114X4119
SO ER EC TR
Housing H1 Compressor : MLY80RAb
Electrical code Number of Fans : 1
Document No 118A2053 Revision : A
Sound Power Spectrum, 1/1 Octave
Model Sound Power Spectrum
16k LWA
OP-MPYM008MY 1/1 Octave d BA
Calculated Sound Pressure (Free Field) (d BA)
Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A))
Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ)
Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power
Subject to change without prior information, Please check Coolselector 2 / Product store for updated information.
