Danfoss Sound Spectrum for Optyma INVERTER OP-MPPM035VV Data Sheet
Summary
A comprehensive technical guide detailing the acoustic performance of the OP-MPPM035VV Condensing Unit. This manual provides the full sound power spectrum and detailed acoustic data across multiple frequencies and distances, measuring output in dBA. It is essential documentation for HVAC engineers, system integrators, and facility managers who require precise noise specifications to ensure compliance, plan installations, and optimize cooling efficiency.
Page 1 Text Content

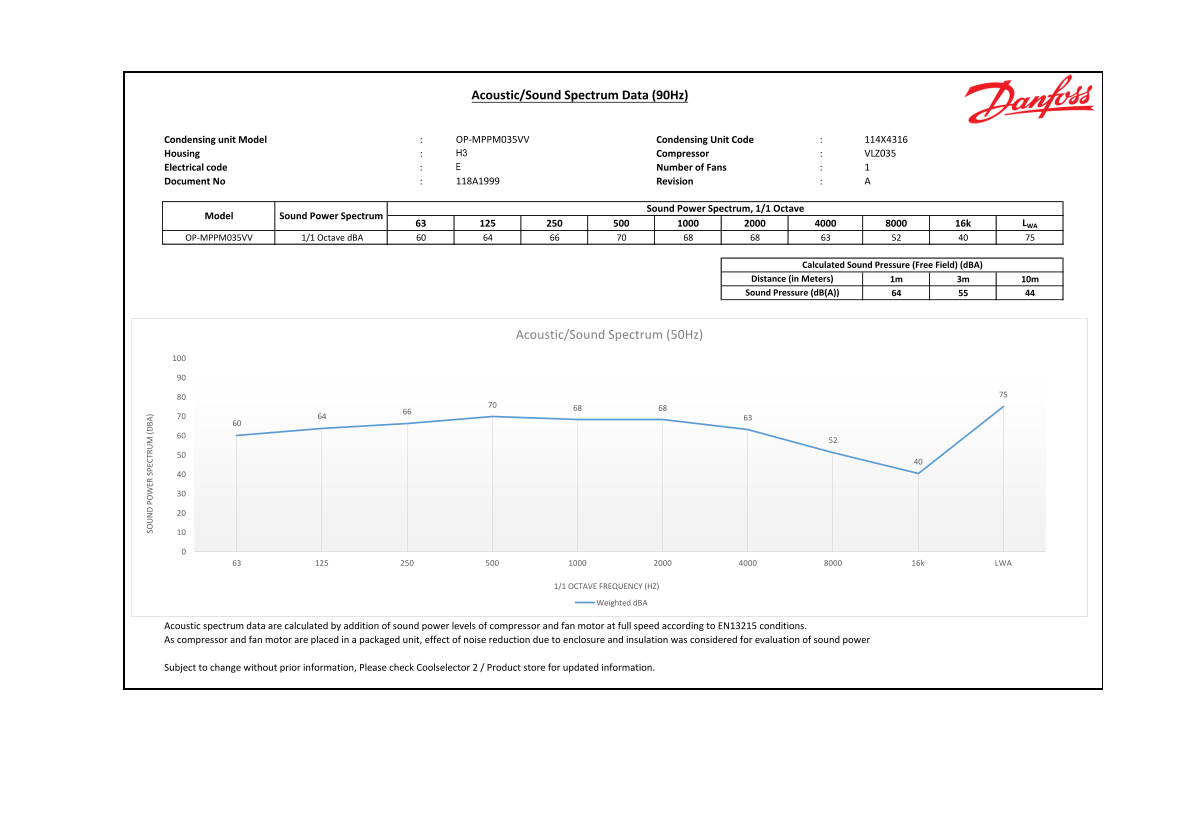

Acoustic/Sound Spectrum Data (90Hz)
Condensing unit Model OP-MPPM035VV Condensing Unit Code : 114X4316
SO ER EC TR
Housing H3 Compressor : VLZ035
Electrical code Number of Fans : 1
Document No 118A1999 Revision : A
Sound Power Spectrum, 1/1 Octave
Model Sound Power Spectrum
16k LWA
OP-MPPM035VV 1/1 Octave d BA
Calculated Sound Pressure (Free Field) (d BA)
Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A))
Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ)
Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power
Subject to change without prior information, Please check Coolselector 2 / Product store for updated information.
Page Summary Contents For Danfoss Sound Spectrum for Optyma INVERTER OP-MPPM035VV Data Sheet
Manual Details
| Brand | Spectrum |
|---|---|
| Pages | 1 |
| File Size | 181.56 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the model number of this condensing unit?
The model number is OP-MPPM035VV.
How are the acoustic spectrum data calculated?
They are calculated by adding the sound power levels of the compressor and fan motor at full speed per EN13215 conditions.
What noise reduction considerations were used for testing?
The effect of noise reduction due to enclosure and insulation was considered for evaluation.
Where can I find updated product information?
Please check Coolselector 2 or the Product store for updated information.
