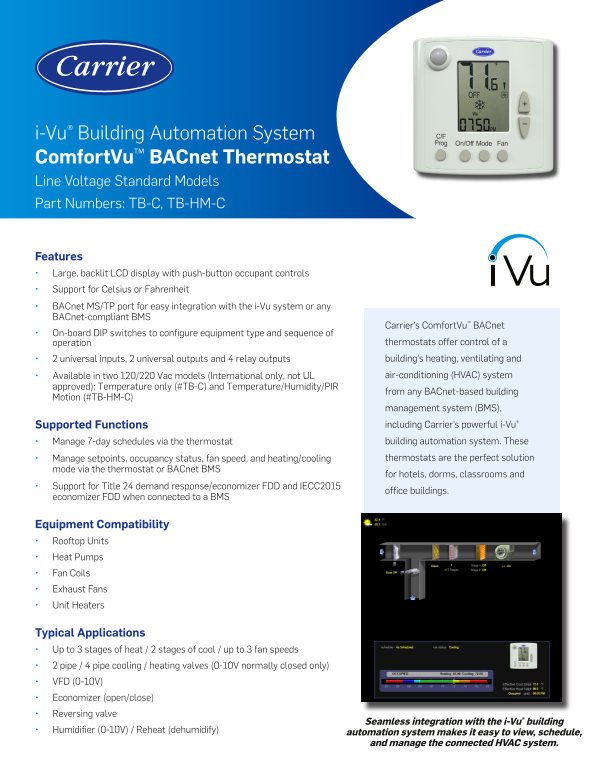

i-Vu® Building Automation System Comfort Vu™ BACnet Thermostat Line Voltage Standard Models Part Numbers: TB-C, TB-HM-C
Features • Large, backlit LCD display with push-button occupant controls • Support for Celsius or Fahrenheit • BACnet MS/TP port for easy integration with the i-Vu system or any BACnet-compliant BMS
Carrier’s Comfort Vu™ BACnet
• On-board DIP switches to configure equipment type and sequence of
operation thermostats offer control of a • 2 universal inputs, 2 universal outputs and 4 relay outputs building’s heating, ventilating and • Available in two 120/220 Vac models (International only, not UL air-conditioning (HVAC) system
approved): Temperature only (#TB-C) and Temperature/Humidity/PIR
from any BACnet-based building
Motion (#TB-HM-C)
management system (BMS), Supported Functions including Carrier’s powerful i-Vu® • Manage 7-day schedules via the thermostat building automation system. These • Manage setpoints, occupancy status, fan speed, and heating/cooling thermostats are the perfect solution
mode via the thermostat or BACnet BMS
for hotels, dorms, classrooms and
• Support for Title 24 demand response/economizer FDD and IECC2015
office buildings.
economizer FDD when connected to a BMS
Equipment Compatibility • Rooftop Units • Heat Pumps • Fan Coils • Exhaust Fans • Unit Heaters
Typical Applications • Up to 3 stages of heat / 2 stages of cool / up to 3 fan speeds • 2 pipe / 4 pipe cooling / heating valves (0-10V normally closed only) • VFD (0-10V) • Economizer (open/close) • Reversing valve
Seamless integration with the i-Vu® building
• Humidifier (0-10V) / Reheat (dehumidify)
automation system makes it easy to view, schedule, and manage the connected HVAC system.
