Carrier ComfortVu™ BACnet® Plus Thermostat TBPL-H-C ComfortVu™ BACnet Thermostats - Line Voltage Plus Models Product Data
Summary
This advanced BACnet thermostat provides sophisticated control over complex commercial HVAC systems. Featuring a backlit touchscreen and integrated with the i-Vu building automation platform, it offers granular management of heating/cooling setpoints, occupancy status, and critical energy functions like Title 24 demand response. The system supports seamless integration with various equipment—including fan coils and heat pumps—via its BACnet port. Ideal for BIM integrators, HVAC professionals, and facilities managers who require precise, networked control of commercial buildings' climate systems.
Page 1 Text Content

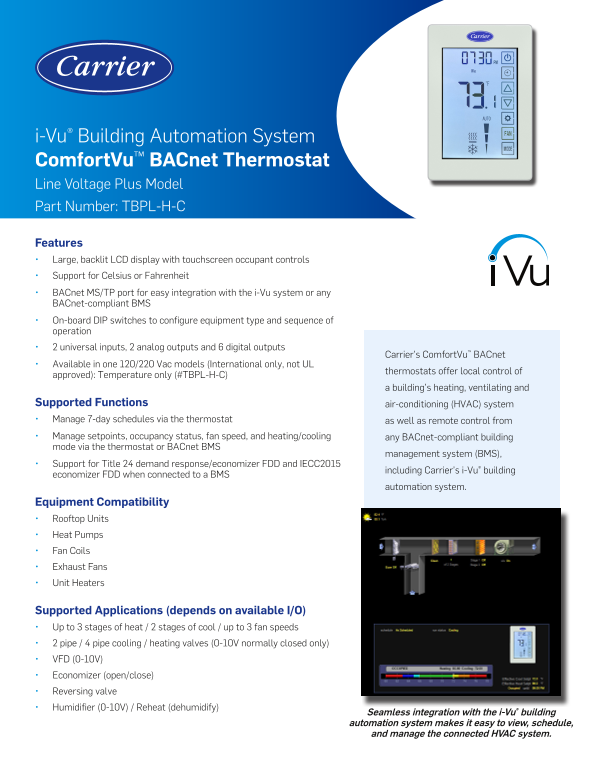

i-Vu® Building Automation System Comfort Vu™ BACnet Thermostat Line Voltage Plus Model Part Number: TBPL-H-C
Features • Large, backlit LCD display with touchscreen occupant controls • Support for Celsius or Fahrenheit • BACnet MS/TP port for easy integration with the i-Vu system or any BACnet-compliant BMS • On-board DIP switches to configure equipment type and sequence of operation • 2 universal inputs, 2 analog outputs and 6 digital outputs
Carrier’s Comfort Vu™ BACnet
• Available in one 120/220 Vac models (International only, not UL
thermostats offer local control of
approved): Temperature only (#TBPL-H-C)
a building’s heating, ventilating and
Supported Functions air-conditioning (HVAC) system • Manage 7-day schedules via the thermostat as well as remote control from • Manage setpoints, occupancy status, fan speed, and heating/cooling any BACnet-compliant building mode via the thermostat or BACnet BMS
management system (BMS),
• Support for Title 24 demand response/economizer FDD and IECC2015
including Carrier’s i-Vu® building
economizer FDD when connected to a BMS
automation system.
Equipment Compatibility • Rooftop Units • Heat Pumps • Fan Coils • Exhaust Fans • Unit Heaters
Supported Applications (depends on available I/O) • Up to 3 stages of heat / 2 stages of cool / up to 3 fan speeds • 2 pipe / 4 pipe cooling / heating valves (0-10V normally closed only) • VFD (0-10V) • Economizer (open/close) • Reversing valve • Humidifier (0-10V) / Reheat (dehumidify)
Seamless integration with the i-Vu® building automation system makes it easy to view, schedule, and manage the connected HVAC system.
Page Summary Contents For Carrier ComfortVu™ BACnet® Plus Thermostat TBPL-H-C ComfortVu™ BACnet Thermostats - Line Voltage Plus Models Product Data
Manual Details
| Brand | Carrier |
|---|---|
| Pages | 2 |
| File Size | 400.62 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended power supply voltage range?
The system supports 85-240 Vac line voltage for operation.
How can I integrate this thermostat with a building management system (BMS)?
It uses a BACnet MS/TP port, allowing integration with any BACnet-compliant BMS or the i-Vu system.
Does the unit handle multiple types of HVAC components?
Yes, it is compatible with Rooftop Units, Heat Pumps, Fan Coils, Exhaust Fans, and Unit Heaters.
What are the limitations for controlling cooling/heating valves?
It can manage up to 2 pipe / 4 pipe valves, but they must be 0-10V normally closed only.
