Baldor Series 10 Inverter Control Installation and Operating Manual
Summary
Master this industrial motor controller with the comprehensive Series 10 AC Inverter Manual. This guide provides professional-grade instructions for skilled technicians and operators, covering everything from safe electrical installation, mounting, and detailed wiring diagrams to complex operational settings. Learn how to configure precise motor control parameters, including acceleration times, torque limits, analog inputs/outputs, and various run modes. An essential resource for integrating customizable and reliable AC motor control into your industrial processes.

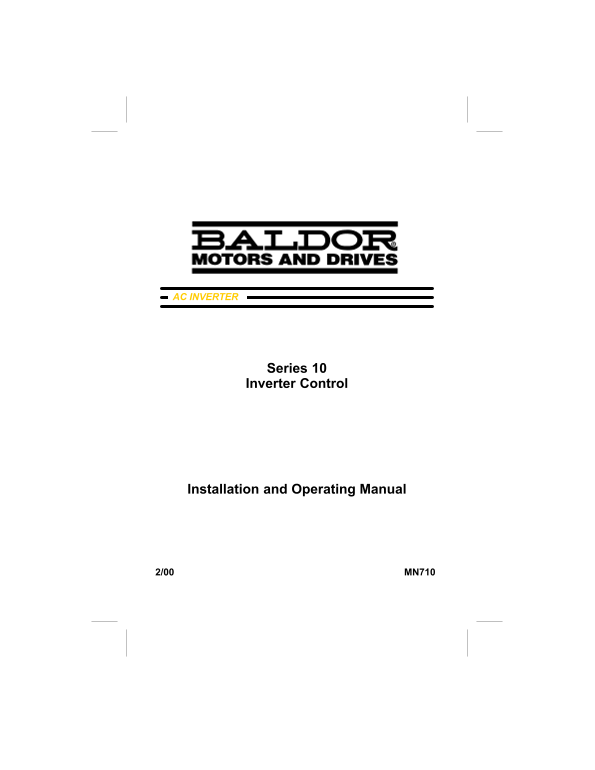

Page 1 Text Content
AC INVERTER
Series 10 Inverter Control
Installation and Operating Manual
2/00 MN710
Page Summary Contents For Baldor Series 10 Inverter Control Installation and Operating Manual
Page 1
AC INVERTER Series 10 Inverter Control Installation and Operating Manual 2/00 MN710
Page 2
Table of Contents Section 1 General Information 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Limited Warranty 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Safety No...
Page 3
Selection Of Operation Mode And Connection Diagrams 2-13 2 Wire Run/Stop Connections 2-14. . . . . . . . . . . . . . . . . . 3 Wire Run/Stop Connections 2-16. . . . . . . . . . . . . . . . . . 2 Wire ...
Page 4
16-Load Torque 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-Heatsink Temp 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-Operating Mode 3-8. . . . . . . . . . . . ....
Page 5
45-Decel Time #2 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-Decel Time Torque Limit 3-17. . . . . . . . . . . . . . . . . . . . 47-DC Brake Time 3-17. . . . . . . . . . . . . . . ....
Page 6
Section 1 General Information Limited Warranty For a period of two (2) years from the date of original purchase, BALDOR will repair or replace without charge controls which our examination proves to b...
Page 7
Safety Notice This equipment contains voltages that may be as great as 800 volts! Electrical shock can cause serious or fatal injury. Only qualified personnel should attempt the start-up procedure or ...
Page 8
WARNING: Be sure the system is properly grounded before applying power. Do not apply AC power before you ensure that all grounding instructions have been followed. Electrical shock can cause serious o...
Page 9
Specifications Horse Power 0.5 - 1 HP @ 115VAC, 1PH 0.5 - 5 HP @ 230VAC, 3PH 1 - 5 HP @ 460VAC, 3PH Input Voltage 95 - 127 VAC, 50/60Hz, Single Phase 187 - 253VAC, 50/60Hz, Three Phase 342 - 506VAC, 5...
Page 10
Auto Restart Manual or Automatic Min. Output Frequency 0.1 to 400Hz Max. Output Frequency 20 to 400Hz Slip Compensation 0 to 12% Opto Input Impedance 4.5 k Ohms Ambient Temperature 0°C to 40°C (Maximu...
Page 11
Operator Keypad Display Custom Backlit LCD Keypad 8 Key with Tactile Feel Functions Output Status Monitoring, Digital Speed Control, Parameter Setting and Display and Fault Log Display LED Indicators ...
Page 12
Ratings Catalog No. HP Input Output VAC Amps Volts Amps Amps VAC Cont * Peak ID101F50-E 0.5 4.5 2.2 3.3 ID10101-E 1.0 8.9 4.0 6.0 ID102F50-E 0.5 1.9 2.2 3.3 ID10201-E 1.0 3.8 4.0 6.0 ID10202-E 2.0 7.5...
Page 13
1-8 General Information
Page 14
Section 2 Installation This section describes the proper mounting and wiring of the BALDOR Series 10 Inverter. If problems arise, please refer to the troubleshooting information located in Section 4. ...
Page 15
Terminal Access Cover Removal To remove the Terminal Access Cover insert a small blade screwdriver into the slots located on the lower left and right hand corners of the access cover. Use a slight twi...
Page 16
Terminal and Jumper Locations Figure 2-2 shows the location of the power terminal strip , control terminal strip , ground lug, and user adjustable jumper locations. Only motor and input power should b...
Page 17
Caution: Separate over-current protection may be required by the National Electrical Code. The installer of this equipment is responsible for complying with the National Electrical Code and any applic...
Page 18
Caution: Do not use power factor correction capacitors on the input power lines to the inverter or damage to the control may result. All external control wiring to the inverter should be run in a sepa...
Page 19
Recommended Terminal Tightening Torques Catalog No. Tightening Torques Power Terminal TB1 Control Terminal Strip All Series 10 10 In-Lb (1.13 Nm) 2 In-Lb (0.23 Nm) Caution: Do not use this control wit...
Page 20
AC Power Connections Connect the fused three phase AC power lines to the input power terminals L1, L2, and L3. The phase rotation of the input power is not important since the control is not sensitive...
Page 21
Motor Connections Connect the three phase power leads of the AC motor to terminals M1, M2, and M3 of the inverter power terminal strip. The motor ground lead or case ground should be connected to the ...
Page 22
M-Contactor If required by local codes or for safety reasons, an M-Contactor (motor circuit contactor) may be installed. However, incorrect installation or failure of the M-Contactor or wiring may dam...
Page 23
Logic Wiring All logic and control connections are made at the control terminal strip located on the motor control board. Screw type terminals are provided for easy connection to your external control...
Page 24
Analog Output One programmable analog output is available for external monitoring of the drive condition. This output is available at terminals CM and MET. The output will be 0-10VDC. The positive lea...
Page 25
motor to coast to a stop. The fault or coast to stop operation of the MOL input terminal is selected by parameter 77-External Trip Select. The selection of pull- up or pull-down logic is set by jumper...
Page 26
Relay Outputs Programmable relay outputs are available for external monitoring of the drive condition. These outputs are available at terminals NO (Normally Open) and NC (Normally Closed) with a commo...
Page 27
2 Wire Run/Stop Connections Parameter 21 - Operating Mode = 2 or 3 Parameter 41 - Accel/Decel/Coast select = 0, 1, 2, 4, 5 or 6 J19 J19 Pull–Up Logic Pull–Down Logic See recommended tightening torques...
Page 28
2 Wire Run/Stop Connections Parameter 21 - Operating Mode = 2 or 3 Parameter 41 - Accel/Decel/Coast select = 3 or 7 J19 J19 Pull–Up Logic Pull–Down Logic See recommended tightening torques for termina...
Page 29
3 Wire Run/Stop Connections Parameter 21 - Operating Mode = 4 or 5 J19 J19 Pull–Up Logic Pull–Down Logic See recommended tightening torques for terminal connectors. Speed Select PS2 PS1 Function Open ...
Page 30
2 Wire Run/Stop, Electronic Potentiometer Connections Parameter 21 - Operating Mode = 6 J19 J19 Pull–Up Logic Pull–Down Logic 3 Wire Run/Stop, Electronic Potentiometer Connections Parameter 21 - Opera...
Page 31
MOL Terminal Connections (77-External Trip Select) J19 J19 Pull–Up Logic Pull–Down Logic Analog Meter Relay Output See recommended tightening torques for terminal connectors. 2-18 Installation
Page 32
Jumper J19 - Used to select the active state of the opto isolated inputs (Pull-Up or Pull-down Logic) and to select the type of analog speed command signal to be applied. The available analog speed co...
Page 33
Pre-Operation Checks Check of Electrical Items After completing all the installation steps and before applying line power to the system, carefully check the following items: 1. Verify AC line voltage ...
Page 34
Temporary Application of Power Double check electrical and mechanical connections before applying power to the control. Temporarily apply power and observe that the display is on. If this indication d...
Page 35
2-22 Installation
Page 36
Section 3 Operation Keypad Key Functions The programming and basic operation of the Series 10 Inverter is accomplished by simple keystrokes on the operator control panel. The function of the keys are ...
Page 37
STOP Push to initiate a stop command. Depending on the setup of the control the motor will either ramp (Regen) or Coast to Stop. See 41-Accel/Decel/Coast Select in Section 3 for more information. FWD ...
Page 38
Arrow is also used to decrement the set speed in the Stop Mode and decrement the actual speed in the Run Mode. The value will decrease at a faster rate after holding the DOWN Arrow key for 5 seconds. ...
Page 39
Description of Keypad Displays The custom, back-lit, LCD display provides information on drive operation and programming. The four large 7-segment displays show inverter output and programming data. T...
Page 40
Symbol Description FWD Forward direction commanded REV Reverse direction commanded PRG Program Mode Selected (Steady) Parameter Value may be changed (Blinking) SET Drive is Stopped or running frequenc...
