This high-linearity active mixer utilizes advanced Silicon-Germanium technology to efficiently convert Radio Frequency (RF) signals in the 2200 MHz to 2700 MHz band. Operating on a single 5V supply, it delivers significant conversion gain ideal for modern wireless links. This comprehensive manual is an essential technical resource for RF and communication engineers designing transceivers and base stations. It covers all critical operational parameters, pinning diagrams, electrical performance curves, and integration guidelines required for robust implementation in digital communication systems.

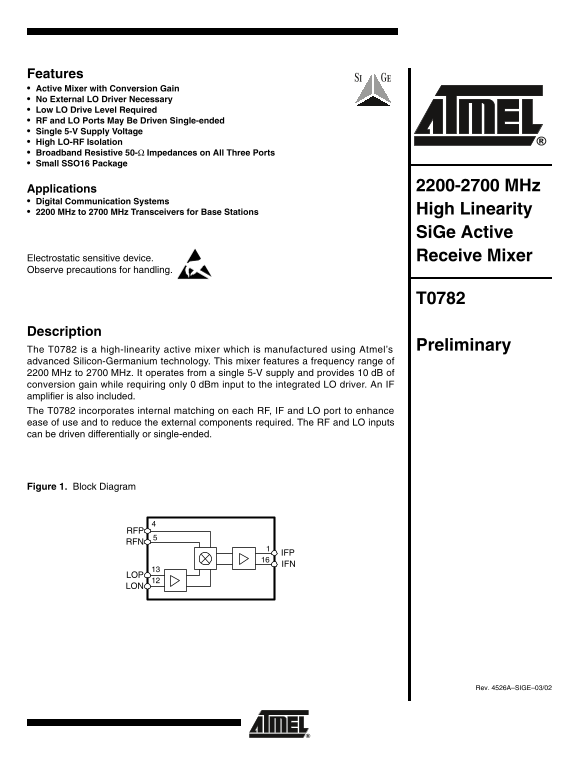

Page 1 Text Content
Features Active Mixer with Conversion Gain No External LO Driver Necessary Low LO Drive Level Required RF and LO Ports May Be Driven Single-ended Single 5-V Supply Voltage High LO-RF Isolation Broadband Resistive 50-Ω Impedances on All Three Ports Small SSO16 Package
Applications 2200-2700 MHz
Digital Communication Systems
MHz to 2700 MHz Transceivers for Base Stations High Linearity Si Ge Active Electrostatic sensitive device. Receive Mixer
Observe precautions for handling.
Description
The T0782 is a high-linearity active mixer which is manufactured using Atmel’s Preliminary
advanced Silicon-Germanium technology. This mixer features a frequency range of MHz to 2700 MHz. It operates from a single 5-V supply and provides 10 d B of conversion gain while requiring only 0 d Bm input to the integrated LO driver. An IF amplifier is also included. The T0782 incorporates internal matching on each RF, IF and LO port to enhance ease of use and to reduce the external components required. The RF and LO inputs can be driven differentially or single-ended.
Figure 1. Block Diagram
RFP RFN
IFP IFN
LOP LON
Rev. 4526A–SIGE–03/02
Page Summary Contents For ATMEL T0782 Data Sheet
Manual Details
| Brand | Atmel |
|---|---|
| Pages | 8 |
| File Size | 294.05 KB |
| Published | May 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating frequency range for this mixer?
The T0782 operates in a frequency range of 2200 MHz to 2700 MHz.
Is external LO driver required for the T0782?
No, it features an active mixer with conversion gain and no external LO Driver is necessary.
What power supply voltage does the device use?
It operates from a single 5-V supply voltage (4.75 V to 5.25 V recommended).
Does the mixer include internal matching features?
Yes, it incorporates internal matching on each RF, IF and LO port to reduce required external components.
