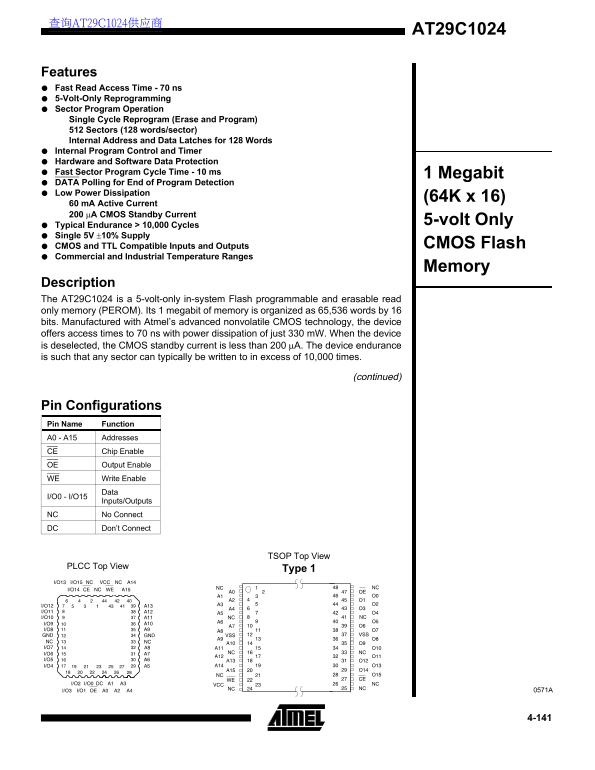

Page 1 Text Content
查询AT29C1024供应商
AT29C1024
Features Fast Read Access Time - 70 ns 5-Volt-Only Reprogramming Sector Program Operation Single Cycle Reprogram (Erase and Program) 512 Sectors (128 words/sector) Internal Address and Data Latches for 128 Words Internal Program Control and Timer Hardware and Software Data Protection Fast Sector Program Cycle Time - 10 ms 1 Megabit DATA Polling for End of Program Detection Low Power Dissipation
60 m A Active Current 200 µA CMOS Standby Current
5-volt Only
Typical Endurance > 10,000 Cycles Single 5V ±10% Supply
CMOS and TTL Compatible Inputs and Outputs CMOS Flash
Commercial and Industrial Temperature Ranges
Memory
Description The AT29C1024 is a 5-volt-only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 70 ns with power dissipation of just 330 m W. When the device is deselected, the CMOS standby current is less than 200 µA. The device endurance is such that any sector can typically be written to in excess of 10,000 times.
(continued)
Pin Configurations
AT29C1024
Pin Name Function A0 - A15 Addresses CE Chip Enable OE Output Enable WE Write Enable
Inputs/Outputs
NC No Connect DC Don’t Connect
TSOP Top View Type 1PLCC Top View
Page Summary Contents For ATMEL AT29C1024 Data Sheet
Manual Details
| Brand | Atmel |
|---|---|
| Pages | 12 |
| File Size | 708.38 KB |
| Published | May 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical endurance for a sector write?
Any sector can typically be written to in excess of 10,000 times.
Does the device support built-in data protection features?
Yes, it includes a software data protection feature that guards against inadvertent program cycles.
What is the required operating voltage and memory capacity?
It is a 5-volt-only Flash memory with 1 megabit (65,536 words by 16 bits) of memory.
How are address locations handled during read operations?
The low transition of WE (or CE), while A0 to A6 specify the word address within the sector, and the outputs load data in any order.
