ASRock Penryn1600SLIX3-WiFi User Manual
Summary
The comprehensive manual for the Penryn1600SLIX3-WiFi motherboard provides detailed guidance for advanced PC users and system builders. It covers end-to-end hardware installation, including proper CPU mounting, RAM configuration, and multi-GPU setup using specialized SLI modes. Furthermore, the guide includes essential walkthroughs for operating system installation, installing necessary device drivers, and utilizing support utilities to ensure peak performance from your new system build.
Page 1 Text Content

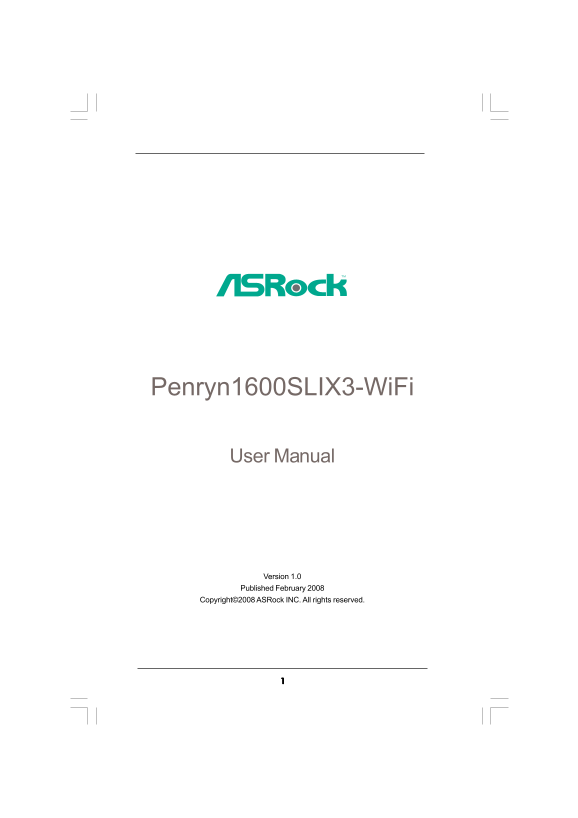

Penryn1600SLIX3-Wi Fi
User Manual
Version 1.0 Published February 2008
Copyright©2008 ASRock INC. All rights reserved.
Page Summary Contents For ASRock Penryn1600SLIX3-WiFi User Manual
Page 1
Penryn1600SLIX3-Wi Fi User Manual Version 1.0 Published February 2008 Copyright©2008 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents 1 Introduction 1.1 Package Contents 1.2 Specifications 1.3 Minimum Hardware Requirement Table for Windows® Vista TM Premium 2008 and Basic Logo......................... 9 1.4 Supported PCI Ex...
Page 4
2.18 Installing Windows® 2000 / XP / XP 64-bit / Vista TM / Vista TM 64-bit Without RAID Functions 2.19 Installing Windows® 2000 / XP / XP 64-bit / Vista TM / Vista TM 64-bit With RAID Functions 2.19....
Page 5
Chapter 1 Introduction Thank you for purchasing ASRock Penryn1600SLIX3-Wi Fi motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent p...
Page 6
.2 Specifications Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - All Solid Capacitor design CPU - LGA 775 for Intel® Core TM 2 Extreme / Core TM 2 Quad / Core TM 2 Duo / Pentium® Du...
Page 7
- 1 x IEEE 1394 Port - HD Audio Jack: Side Speaker/Rear Speaker/Central/Bass/ Line in/Front Speaker/Microphone (see CAUTION 8) Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0, RAID 1, ...
Page 8
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista TM / Vista TM 64-bit compliant (see CAUTION 16) Certifications - FCC, CE, WHQL * For detailed product information, please visit our website: http...
Page 9
10. This motherboard supports e SATAII interface, the external SATAII specification. Please read “e SATAII Interface Introduction” on page 33 for details about e SATAII and e SATAII installation proce...
Page 10
.4 Supported PCI Express VGA Card List for SLITM Mode (for Windows® XP / XP 64-bit / Vista TM / Vista TM 64-bit only) Graphics Chip Model Name Chipset Name Vendor NVIDIA ASUS EN8800GTX Ge Force 8800GT...
Page 11
1.6 Motherboard Layout 24.4cm (9.6 in) 7. 1C II ig it PS2_USB_PWR1 CPU_FAN1 ATX12V1 USB 2.0 Top: T: USB2 IEEE B: USB3 USB 2.0 Top: T: USB0 RJ-45 B: USB1 NVIDIA rk fi ld n Force lf le 680i SLI Chipset ...
Page 12
.7 ASRock Wi Fi_e SATAII I/O Plus PS/2 Mouse Port (Green) ** 9 Front Speaker (Lime) Parallel Port Microphone (Pink) IEEE 1394 Port USB 2.0 Ports (USB01) LAN RJ-45 Port USB 2.0 Ports (USB23) Side Speak...
Page 13
.8 ASRock Wi Fi-802.11g Module Specifications ASRock Wi Fi-802.11g module is an easy-to-use wireless local area network (WLAN) adapter to support Wi Fi+AP function. With ASRock Wi Fi-802.11g module, y...
Page 14
Chapter 2 Installation This is an ATX form factor (12.0" x 9.6", 30.5 x 24.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the m...
Page 15
black line 2.3 CPU Installation For the installation of Intel 775-LAND CPU, please follow the steps below. black line 775-Pin Socket Overview Before you insert the 775-LAND CPU into the socket, please...
Page 16
For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Step 2-3. Carefully place the CPU into the socket by using a purely v...
Page 17
2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 775-L...
Page 18
2.5 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you ...
Page 19
Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Alig...
Page 20
2.6 Expansion Slots (PCI and PCI Express Slots) There are 2 PCI slots and 5 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI int...
Page 21
2.7 SLITM and 3-Way SLITM Operation Guide This motherboard supports NVIDIA® SLITM and 3-Way SLITM (Scalable Link Interface) technology that allows you to install up to three identical PCI Express x16 ...
Page 22
Step4. Connect a VGA cable or a DVI cable to the monitor connector or the DVI connector of the graphics card that is inserted to PCIE1 slot. 2.7.1.2 Installing Three SLITM-Ready Graphics Cards Step 1....
Page 23
2.7.2 Driver Installation and Setup Install the graphics card drivers to your system. After that, you can enable the Multi- Graphics Processing Unit (GPU) feature in the NVIDIA® n View system tray uti...
Page 24
E. From the Display Properties dialog box, select the Settings tab then click Advanced. F. Select the NVIDIA Ge Force tab. G. Click the slider to display the following screen, then select the SLI mult...
Page 25
For Windows® Vista TM / Vista TM 64-bit OS: (For SLITM and 3-way SLITM mode) A. Click the Start icon on your Windows taskbar. B. From the pop-up menu, select All Programs, and then click NVIDIA Corpor...
Page 26
2.8 Surround Display Feature This motherboard supports Surround Display upgrade. With the external add-on PCI Express VGA card, you can easily enjoy the benefits of Surround Display feature. For the d...
Page 27
2.10 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will...
Page 28
e SATAII Connector This e SATAII connector (e SATAII_TOP: see p.11, No. 37) supports SATA data cable for external SATAII function. The current e SATAII interface e SATAII_TOP allows up to 3.0 Gb/s dat...
Page 29
USB_PWR (9-pin USB4_5) (see p.11 No. 21) GND DUMMY GND P+4 P-4 USB_PWR Desk Express Hot Plug Detection This header supports the Hot IRTX +5VSB Header Hotplug# Plug detection function for (5-pin IR1) A...
Page 30
For Windows® Vista TM / Vista TM 64-bit OS: Click the right-top “Folder” icon , choose “Disable front panel jack detection”, and save the change by clicking “OK”. PLED+ System Panel Header PLED- This ...
Page 31
ATX 12V Power Connector 4 8 Please connect an ATX 12V (8-pin ATX12V1) power supply to this connector. (see p.11 No. 2) Though this motherboard provides 8-pin ATX 12V power connector, it can still work...
Page 32
2.11 HDMI_SPDIF Header Connection Guide HDMI (High-Definition Multi-media Interface) is an all-digital audio/video specification, which provides an interface between any compatible digital audio/ vide...
Page 33
2.12 e SATAII Interface Introduction What is e SATAII? This motherboard supports e SATAII interface, the external SATAII specification. e SATAII allows you to enjoy the SATAII function provided by the...
Page 34
How to install e SATAII? SATAII connector SATAII_6 (PORT3.1) e SATAII connector (e SATAII_TOP) 1. In order to enable the e SATAII port of the I/O shield, you need to connect the orange SATAII connecto...
Page 35
Comparison between e SATAII and other devices IEEE 1394 400Mb/s USB 2.0 480Mb/s SATA 1.5Gb/s (1500Mb/s) e SATAII/SATAII 3.0Gb/s (3000Mb/s)
Page 36
2.13 SATAII Hard Disk Setup Guide Before installing SATAII hard disk to your computer, please carefully read below SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be at...
Page 37
2.14 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Instal lat ion This motherboard adopts NVIDIA® n Force 680i SLI chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and...
Page 38
2.16 SATA / SATAII HDD Hot Plug Feature and Operation Guide This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID mode. Please read below operation guide of SATA / SATAII HDD Hot Pl...
Page 39
How to Hot Plug a SATA / SATAII HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA /...
Page 40
2.17 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive first. Then, the drivers compatible to your system can be auto-detected and lis...
