ASROCK 4Core1600P35-WiFi+ 4Core1600P35-WiFi User Manual
Summary
Upgrade your PC with this high-performance motherboard. This comprehensive guide is essential for builders and technical users, covering detailed installation procedures for CPUs, memory, and expansion cards. The manual features step-by-step instructions for connecting hardware interfaces like eSATAII and SATAII, supporting advanced functions such as CrossFire and dedicated I/O modules. It also provides crucial guidance on installing the operating system, managing necessary drivers, and utilizing included utilities for optimal PC performance.

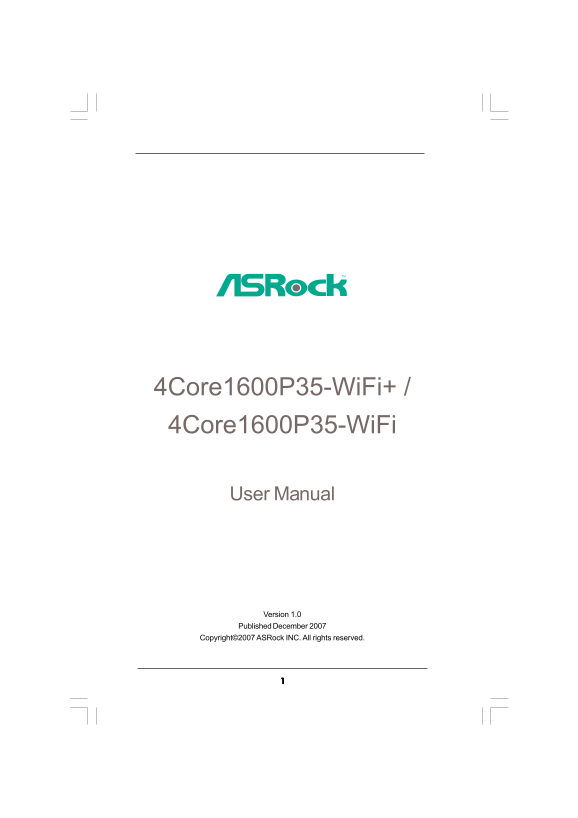

Page 1 Text Content
4Core1600P35-Wi Fi+ / 4Core1600P35-Wi Fi
User Manual
Version 1.0 Published December 2007
Copyright©2007 ASRock INC. All rights reserved.
Page Summary Contents For ASROCK 4Core1600P35-WiFi+ 4Core1600P35-WiFi User Manual
Page 1
4Core1600P35-Wi Fi+ / 4Core1600P35-Wi Fi User Manual Version 1.0 Published December 2007 Copyright©2007 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents 1 Introduction 1.1 Package Contents 1.2 Specifications 1.3 Minimum Hardware Requirement Table for Windows® Vista TM Premium 2008 and Basic Logo......................... 10 1.4 Motherboard Lay...
Page 4
2.19 Installing Windows® 2000 / XP / XP 64-bit / Vista TM / Vista TM 64-bit Without RAID Functions 2.19.1 Installing Windows® 2000 / XP / XP 64-bit Without RAID Functions 2.19.2 Installing Windows® Vi...
Page 5
Chapter 1: Introduction Thank you for purchasing ASRock 4Core1600P35-Wi Fi+ / 4Core1600P35-Wi Fi motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It ...
Page 6
.2 Specifications Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - All Solid Capacitor design CPU - LGA 775 for Intel® Core TM 2 Extreme / Core TM 2 Quad / Core TM 2 Duo / Pentium® Du...
Page 7
Wireless LAN - ASRock Wi Fi-802.11g module - 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b - Supports Software Access Point mode (AP mode) and Station mode (Infrastructure mode and Ad-hoc mode) Rear Panel...
Page 8
- 24 pin ATX power connector - 8 pin 12V power connector - SLI/XFIRE power connector - CD in header - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports) (see CAUTION 11) - 1 x...
Page 9
CAUTION! 1. FSB1600-CPU will operate in overclocking mode. If you use a FSB1600- CPU on this motherboard, you need to adjust the jumpers. Please refer to page 29 for proper jumper settings. Besides, i...
Page 10
9. Before installing SATAII hard disk to SATAII connector, please read the “SATAII Hard Disk Setup Guide” on page 40 to adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA har...
Page 11
1.4 Motherboard Layout (4Core1600P35-Wi Fi+) 24.4cm (9.6 in) ig it .0 II tte ry PS2_USB_PWR1 I/ IR ATX12V1 ESATAII USB 2.0 Top: T: USB2 IEEE B: USB3 IDE1 CPU_FAN1 USB 2.0 4C or e1 0P -W i F i+ rk fi l...
Page 12
1.5 Motherboard Layout (4Core1600P35-Wi Fi) tte ry 24.4cm (9.6 in) .1 ig it .0 II PS2_USB_PWR1 ATX12V1 I/ IR ESATAII USB 2.0 T: USB2 B: USB3 IDE1 CPU_FAN1 USB 2.0 Top: T: USB0 RJ-45 B: USB1 Intel 4C o...
Page 13
1.6 ASRock 1394_e SATAII I/O Plus (4Core1600P35-Wi Fi+) PS/2 Mouse Port (Green) ** 9 Front Speaker (Lime) Parallel Port Microphone (Pink) IEEE 1394 Port USB 2.0 Ports (USB01) LAN RJ-45 Port USB 2.0 Po...
Page 14
.7 ASRock 8CH_e SATAII I/O Plus (4Core1600P35-Wi Fi) PS/2 Mouse Port (Green) ** 8 Front Speaker (Lime) Parallel Port Microphone (Pink) LAN RJ-45 Port USB 2.0 Ports (USB01) Side Speaker (Gray) USB 2.0 ...
Page 15
.8 ASRock Wi Fi-802.11g Module Specifications ASRock Wi Fi-802.11g module is an easy-to-use wireless local area network (WLAN) adapter to support Wi Fi+AP function. With ASRock Wi Fi-802.11g module, y...
Page 16
Chapter 2: Installation This is an ATX form factor (12.0" x 9.6", 30.5 x 24.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the ...
Page 17
black line 2.3 CPU Installation For the installation of Intel 775-LAND CPU, please follow the steps below. black line 775-Pin Socket Overview Before you insert the 775-LAND CPU into the socket, please...
Page 18
For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Step 2-3. Carefully place the CPU into the socket by using a purely v...
Page 19
2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 775-L...
Page 20
2.5 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR2 (Double Data Rate 2) DIMM slots and two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Me...
Page 21
1. If you want to install two memory modules, for optimal compatibil- ity and reliability, it is recommended to install them in the slots of the same color. In other words, install them in the set of ...
Page 22
Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Alig...
Page 23
2.6 Expansion Slots (PCI, PCI Express, and AGI Express Slots) There are 3 PCI slots, 1 PCI Express slot, and 1 AGI Express slot (PCI Express x4) on this motherboard. PCI slots: PCI slots are used to i...
Page 24
What graphics cards work with Cross Fire TM? A complete Cross Fire TM system requires a Cross Fire TM Ready motherboard, a Cross Fire TM Edition graphics card and a compatible standard Radeon (Cross F...
Page 25
Step 2. Install one Radeon graphics card to PCIE1 slot. For the proper installation procedures, please refer to section “Expansion Slots”. Step 3. Install the other Radeon graphics card to AGI Express...
Page 26
Step 6. Power on your computer and boot into OS. Step 7. Remove the ATITM driver if you have any VGA driver installed in your system. The Catalyst Uninstaller is an optional download. We recommend usi...
Page 27
Although you have selected the option “Enable Cross Fire TM”, the Cross Fire TM function may not work actually. Your computer will automatically reboot. After restarting your computer, please confirm ...
Page 28
2.9 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The il- lustrati...
Page 29
FSB1 Jumper (FSB1, 3-pin jumper, see p.11 No. 34 or p.12 No. 33) FSB2 Jumper FSB2 (FSB2, 5-pin jumper, see p.11 No. 35 or p.12 No. 34) FSB3 1_2 Default 1_2 FSB3 Jumper (FSB3, 5-pin jumper, see p.11 No...
Page 30
2.10 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will...
Page 31
e SATAII Connector This e SATAII connector (e SATAII: see p.11, No. 39 or p.12, No. 38) supports SATA data cable for external SATAII function. The current e SATAII interface e SATAII allows up to 3.0 ...
Page 32
Wi Fi Header This header supports Wi Fi+AP (11-pin WIFI) USB+5V_1 function with ASRock NC NC (see p.11 No. 26 or p.12 No. 25) GND1 Wi Fi-802.11g or Wi Fi-802.11n PLTRST# +3SVB module, an easy-to-use w...
Page 33
F. Enter Windows system. Click the icon on the lower right hand taskbar to enter Realtek HD Audio Manager. For Windows® 2000 / XP / XP 64-bit OS: Click “Audio I/O”, select “Connector Settings” , choos...
Page 34
ATX Power Connector Please connect an ATX power (24-pin ATXPWR1) supply to this connector. (see p.11, No. 38 or p.12, No. 37) Though this motherboard provides 24-pin ATX power connector, it can still ...
Page 35
HDMI_SPDIF Header HDMI_SPDIF header, providing (3-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA (see p.11 No. 29 or p.12 No. 28) GND card, allows the system to SPDIFOUT +5V connect HDMI Digital TV/ ...
Page 36
2.11 HDMI_SPDIF Header Connection Guide HDMI (High-Definition Multi-media Interface) is an all-digital audio/video specification, which provides an interface between any compatible digital audio/ vide...
Page 37
2.12 e SATAII Interface Introduction What is e SATAII? This motherboard supports e SATAII interface, the external SATAII specification. e SATAII allows you to enjoy the SATAII function provided by the...
Page 38
1. In order to enable the e SATAII port of the I/O shield, you need to connect the orange SATAII connector (SATAII_6 (Port5); see p.11/12 No.19) and the e SATAII connector (e SATAII; see p.11 No.39 or...
Page 39
Comparison between e SATAII and other devices IEEE 1394 400Mb/s USB 2.0 480Mb/s SATA 1.5Gb/s (1500Mb/s) e SATAII/SATAII 3.0Gb/s (3000Mb/s)
Page 40
2.13 SATAII Hard Disk Setup Guide Before installing SATAII hard disk to your computer, please carefully read below SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be at...
Manual Details
| Brand | ASRock |
|---|---|
| Pages | 72 |
| File Size | 1.93 MB |
| Published | May 14, 2026 |
372 views
Enter the captcha to get the download link:
Frequently Asked Questions
What operating systems are supported by this motherboard?
It supports Microsoft Windows 2000, XP, Vista, and their 64-bit versions.
How should I handle the Lithium battery in California, USA?
Because it contains Perchlorate, you must follow related state regulations before discarding it for special handling.
What supplies come with the package?
The manual specifies sections for Package Contents (1.1), which detail included items.
How do I install necessary drivers and utilities?
Insert the Support CD and run 'ASSETUP.EXE' from the BIN folder, then use the Drivers or Utilities Menu to install components.
