Apple Power Mac G4 & Macintosh Server G4 - SCSI Hard Drive Replacement Instructions
Summary
Essential guide for replacing SCSI Hard Drives in Power Mac G4 and Macintosh Server G4 systems. This comprehensive manual provides detailed, step-by-step instructions covering everything from necessary safety precautions (including grounding and powering down) to proper data backup procedures. It guides users through safely removing the old drive unit and accurately installing a new replacement drive, ensuring correct cable and carrier reattachment for functional hardware repair. Ideal for authorized technicians or advanced users with vintage Apple machinery seeking reliable hard drive maintenance.

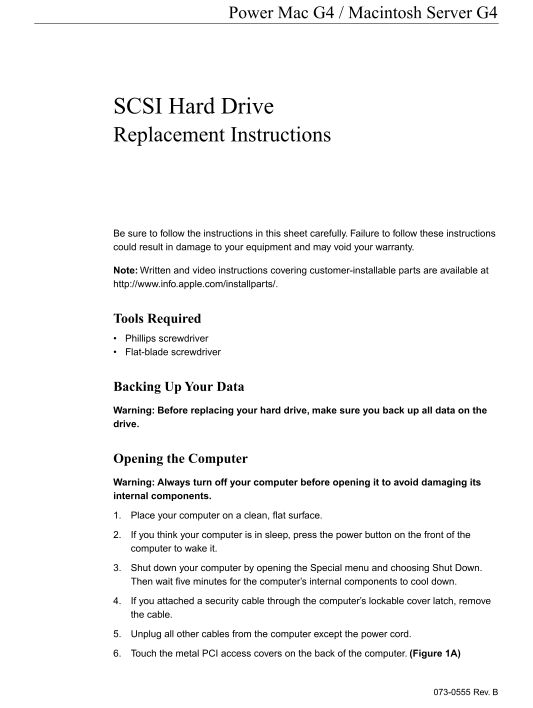

Page 1 Text Content
Power Mac G4 / Macintosh Server G4
SCSI Hard Drive Replacement Instructions
Be sure to follow the instructions in this sheet carefully. Failure to follow these instructions could result in damage to your equipment and may void your warranty.
Note: Written and video instructions covering customer-installable parts are available at http://www.info.apple.com/installparts/.
Tools Required Phillips screwdriver Flat-blade screwdriver
Backing Up Your Data Warning: Before replacing your hard drive, make sure you back up all data on the drive.
Opening the Computer Warning: Always turn off your computer before opening it to avoid damaging its internal components. 1. Place your computer on a clean, flat surface. 2. If you think your computer is in sleep, press the power button on the front of the computer to wake it. 3. Shut down your computer by opening the Special menu and choosing Shut Down. Then wait five minutes for the computer’s internal components to cool down. 4. If you attached a security cable through the computer’s lockable cover latch, remove the cable. 5. Unplug all other cables from the computer except the power cord. 6. Touch the metal PCI access covers on the back of the computer. (Figure 1A)
073-0555 Rev. B
Page Summary Contents For Apple Power Mac G4 & Macintosh Server G4 - SCSI Hard Drive Replacement Instructions
Manual Details
| Brand | Server |
|---|---|
| Pages | 6 |
| File Size | 332.84 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What must I do before replacing the hard drive?
You must back up all data currently on the drive.
How do I handle static electricity during replacement?
Always ground yourself by touching the port access covers before handling internal components.
Which tools are required for this procedure?
A Phillips screwdriver and a flat-blade screwdriver are needed.
What should I do to safely shut down the computer?
Shut down via the Special menu, wait five minutes for cooling, remove security cables, and unplug non-power cords.
