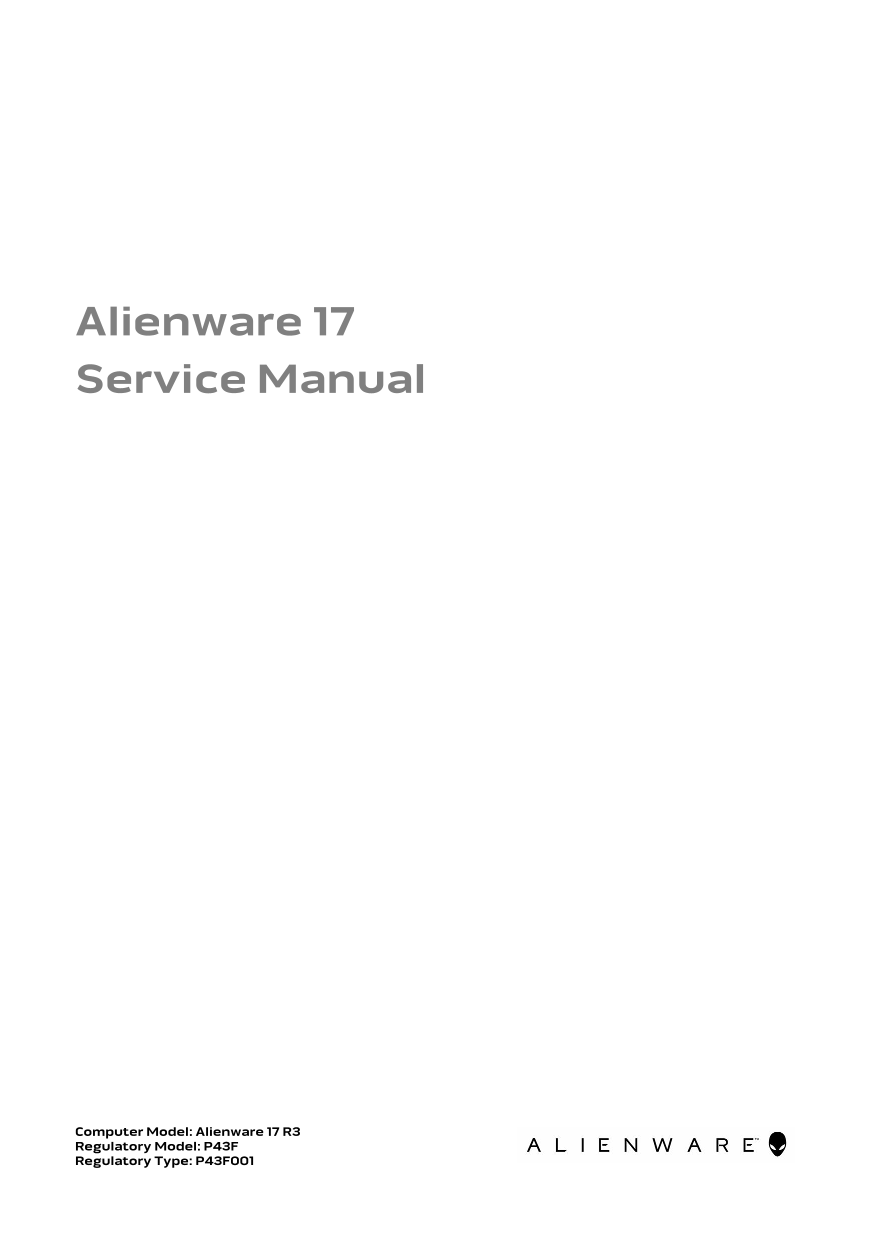

Alienware 17 Service Manual Computer Model: Alienware 17 R3 Regulatory Model: P43F Regulatory Type: P43F001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before working inside your computer........................ Before you begin ............................................................................................... Safety instruction...
Page 4
Removing the hard drive..................................................25 Prerequisites.....................................................................................................25 Procedu...
Page 5
Removing the keyboard................................................... Prerequisites.....................................................................................................43 Procedure....
Page 6
Removing the I/O board.................................................... Prerequisites.....................................................................................................62 Procedur...
Page 7
Removing the system board.......................................... Prerequisites..................................................................................................... Procedure...........
Page 8
Removing the video-card fan..........................................91 Prerequisites......................................................................................................91 Procedure....
Page 9
Removing the display panel......................................... Prerequisites................................................................................................... Procedure.............
Page 10
Removing the camera.......................................................121 Prerequisites.................................................................................................... Procedur...
Page 11
BIOS setup program..........................................................136 Overview.......................................................................................................... Enter...
Page 12
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 13
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power s...
Page 14
After working inside your tablet CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside your ...
Page 15
Removing the base panel WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 16
5 Disconnect the battery cable from the system board. battery cable 6 Turn the computer over. 7 Press and hold the power button for 5 seconds to ground the system board.
Page 17
Replacing the base panel WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 18
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 19
2 Slide and remove the memory module from the memory-module slot. securing clips (2) memory modules (2) memory-module slot
Page 20
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 21
2 Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. s...
Page 22
Removing the solid-state drives WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 23
2 Slide and remove the solid-state drive from the solid-state drive slot. solid-state drive slot solid-state drive screw
Page 24
Replacing the solid-state drives WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. ...
Page 25
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 26
4 Lift the hard-drive assembly off the computer base. pull tab hard-drive cable screws (4) hard-drive assembly 5 Remove the screws that secure the hard-drive bracket to the hard drive. 6 Lift the hard...
Page 27
7 Disconnect the interposer from the hard drive. interposer hard drive
Page 28
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 29
Removing the palm rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 30
Procedure 1 Lift the latches and disconnect the keyboard cable, keyboard-backlight cable, macro-keys cable and macro-keys backlight cable from the system board. keyboard-backlight cable keyboard cable...
Page 31
2 Remove the screws that secure the palm-rest assembly to the computer base. computer base screws (16)
Page 32
3 Lift the computer base slightly and push the palm-rest assembly through the slot on the computer base to release the tabs on the palm-rest assembly. slot palm-rest assembly 4 Turn the computer over ...
Page 33
6 Gently lift the palm-rest assembly and turn it over. plastic scribe palm-rest assembly 7 Peel the tape that secures the power-button board cable to the system board. 8 Disconnect the power-button bo...
Page 34
9 Lift the palm-rest assembly off the computer base. palm-rest assembly power-button board cable latch 10 Remove the power-button board. 11 Remove the status-light board. 12 Remove the keyboard.
Page 35
13 Remove the touch pad. palm rest
Page 36
Replacing the palm rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 37
Removing the power-button board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 38
4 Lift the power-button board off the palm-rest assembly. power-button board cable latches (2) touch-pad cable status-light cable screws (2) power-button board
Page 39
Replacing the power-button board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. ...
Page 40
Removing the status-light board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
