Medium voltage AC drive ACS 2000, 250 – 1600 k W, 4.0 – 6.9 k V

Page Summary Contents For ABB ACS 2000, 250 – 1600 kW, 4.0 – 6.9 kV User Manual and Specifications

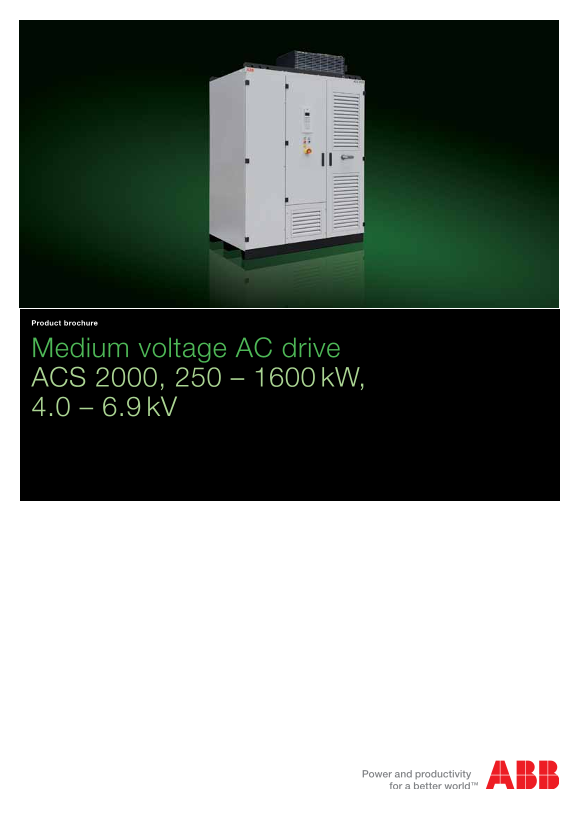

Page 1 Product brochure Medium voltage AC drive ACS 2000, 250 – 1600 k W, 4.0 – 6.9 k V

Page 2 2 ACS 2000 brochure | ABB

Page 3 ACS 2000 – simple and reliable motor control The ACS 2000 medium voltage AC drive provides reliable motor control for a wide range of applications. The ACS 2000 is designed for high reliability, easy ...

Page 4 Key features The ACS 2000 general purpose drive offers unique features which provide superior application flexibility with a standard solution. Line supply connection flexibility The ACS 2000 provides...

Page 5 Vo lts Powerful performance with DTC Low harmonic signature Precise and reliable process control, together with low energy A low harmonic solution is available which meets the most consumption, result...

Page 6 ACS 2000 – the right choice for general purpose applications Depending on the application, variable speed drives have to fulfill different requirements. The ACS 2000 provides the right solution for ge...

Page 7 ACS 2000 The air-cooled general purpose drive provides simple and reliable motor control for a wide range of applications. ACS 2000 direct-to-line, 800 k W, 4.0 – 4.16 k V Electromechanically interloc...

Page 8 ACS 2000 It is designed for easy installation, fast commissioning and efficient maintenance reducing the total cost of ownership. ACS 2000, 800 k W, 6.6 k V, for operation with an external transformer...

Page 9 Features and benefits Features Advantages Benefits Operation without transformer (direct-to-line) No transformer required Reduces capital expenditure Easy retrofit to fixed-speed motors Minimizes inve...

Page 10 Simple drive system integration Installing a medium voltage AC drive could not be easier with ABB’s three in - three out concept. Simply disconnect the direct- on-line cable, connect the drive, and co...

Page 11 Service and support The ACS 2000 is backed by comprehensive service and support, from the customer’s initial inquiry throughout the entire life cycle of the drive system. Installation and commissionin...

Page 12 Data sheet ACS 2000 Inverter type Ambient temperature Voltage Source Inverter (VSI), 9 levels line-to-line, with high voltage +1 to 40 o C (higher with derating) IGBT (Insulated Gate Bipolar Transisto...

Page 13 Data sheet ACS 2000, 4.0 – 4.16 k V Converter length and weight (approx. values) for operation Motor data Converter verter with integrated direct-to-line with external data transformer transformer No ...

Page 14 Data sheet ACS 2000, 6.0 – 6.9 k V Motor data Converter data No over- Frame Nominal rating * Light overload * Heavy duty * Type code ** Power load * reference Pcont. max Icont. max Imax PN IN Phd Ihd ...

Page 15 Data sheet ACS 2000, 6.0 – 6.9 k V, continued Motor data Converter data No over- Nominal rating * Light overload * Heavy duty * Type code ** Power Frame size load * Pcont. max Icont. max Imax PN IN Ph...

Page 16 Contact us op yr ig ht ll rig ht re se rv ed ec ifi ca tio ns ub je ct ch an ge ith ou no tic e. T4 0R ev Dwww.abb.com/drives
