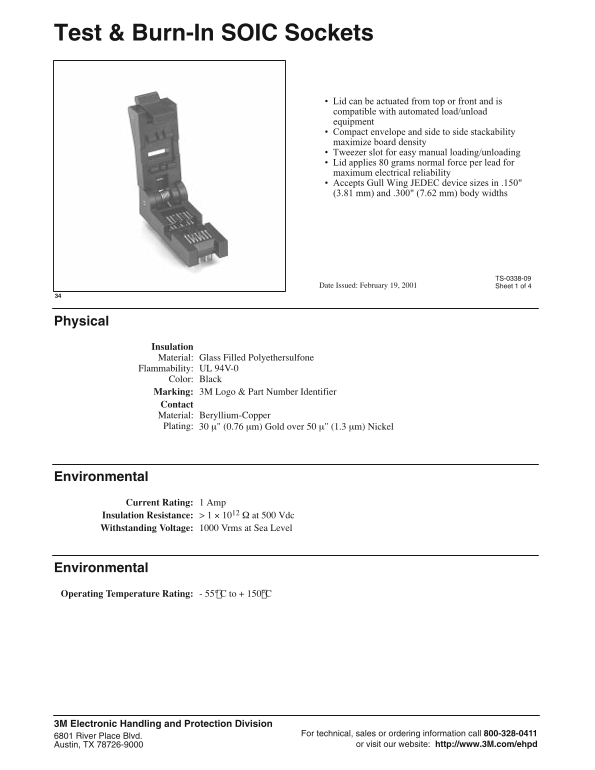

Test & Burn-In SOIC Sockets
• Lid can be actuated from top or front and is compatible with automated load/unload equipment • Compact envelope and side to side stackability maximize board density • Tweezer slot for easy manual loading/unloading • Lid applies 80 grams normal force per lead for maximum electrical reliability • Accepts Gull Wing JEDEC device sizes in .150" (3.81 mm) and .300" (7.62 mm) body widths
TS-0338-09
Date Issued: February 19, 2001 Sheet 1 of 4
Physical
Insulation Material: Glass Filled Polyethersulfone Flammability: UL 94V-0 Color: Black Marking: 3M Logo & Part Number Identifier Contact Material: Beryllium-Copper Plating: 30 m" (0.76 mm) Gold over 50 m" (1.3 mm) Nickel
Environmental
Current Rating: 1 Amp Insulation Resistance: > 1 ¥ 1012 W at 500 Vdc Withstanding Voltage: 1000 Vrms at Sea Level
Environmental Operating Temperature Rating: - 55°°C to + 150°C
3M Electronic Handling and Protection Division
For technical, sales or ordering information call 800-328-0411
6801 River Place Blvd.
Austin, TX 78726-9000 or visit our website: http://www.3M.com/ehpd
