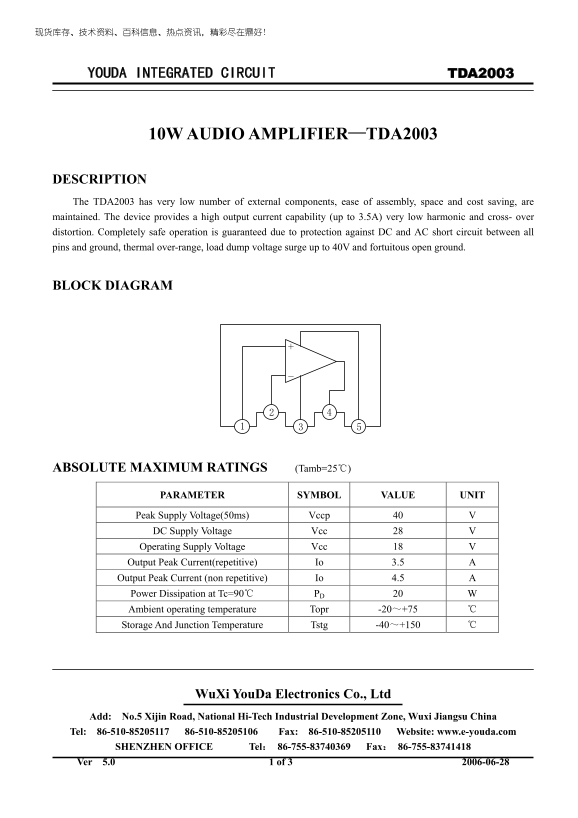

YOUDA INTEGRATED CIRCUIT TDA2003
10W AUDIO AMPLIFIER—TDA2003
DESCRIPTION The TDA2003 has very low number of external components, ease of assembly, space and cost saving, are maintained. The device provides a high output current capability (up to 3.5A) very low harmonic and cross- over distortion. Completely safe operation is guaranteed due to protection against DC and AC short circuit between all pins and ground, thermal over-range, load dump voltage surge up to 40V and fortuitous open ground.
BLOCK DIAGRAM
ABSOLUTE MAXIMUM RATINGS (Tamb=25℃)
PARAMETER SYMBOL VALUE UNIT
Peak Supply Voltage(50ms) Vccp 40 V DC Supply Voltage Vcc 28 V Operating Supply Voltage Vcc 18 V Output Peak Current(repetitive) Io 3.5 A Output Peak Current (non repetitive) Io 4.5 A Power Dissipation at Tc=90℃ PD 20 W Ambient operating temperature Topr -20～+75 ℃ Storage And Junction Temperature Tstg -40～+150 ℃
Wu Xi You Da Electronics Co., Ltd
Add: No.5 Xijin Road, National Hi-Tech Industrial Development Zone, Wuxi Jiangsu China Tel: 86-510-85205117 86-510-85205106 Fax: 86-510-85205110 Website: www.e-youda.com SHENZHEN OFFICE Tel： 86-755-83740369 Fax： 86-755-83741418 Ver 5.0 1 of 3 2006-06-28
