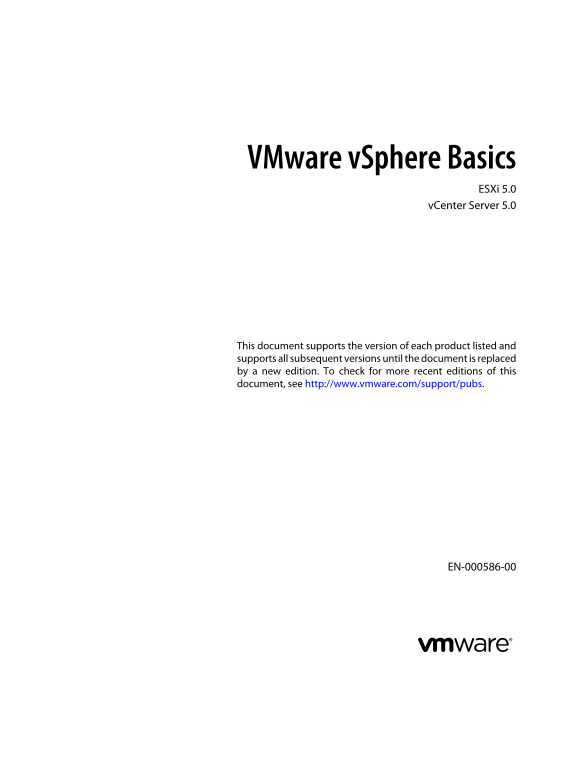

VMware v Sphere Basics
ESXi 5.0
v Center Server 5.0
This document supports the version of each product listed and supports all subsequent versions until the document is replaced by a new edition. To check for more recent editions of this document, see http://www.vmware.com/support/pubs.
EN-000586-00
Page Summary Contents For VMware vSphere Basics ESXi 5.0 vCenter Server 5.0 User Guide
Page 1
VMware v Sphere Basics ESXi 5.0 v Center Server 5.0 This document supports the version of each product listed and supports all subsequent versions until the document is replaced by a new edition. To c...
Page 2
VMware v Sphere Basics You can find the most up-to-date technical documentation on the VMware Web site at: http://www.vmware.com/support/ The VMware Web site also provides the latest product updates. ...
Page 3
Contents VMware v Sphere Basics VMware v Sphere and Virtualizing the IT Infrastructure Aspects of Virtualization VMware v Sphere , a Platform for Virtualization and Cloud Infrastructure VMware v Spher...
Page 4
VMware v Sphere Basics 4 VMware, Inc.
Page 5
VMware v Sphere Basics VMware v Sphere Basics provides information about the features and functionality of VMware v Sphere®. This document describes VMware ESXi™, VMware v Center Server™, and v Sphere...
Page 6
VMware v Sphere Basics 6 VMware, Inc.
Page 7
VMware v Sphere and Virtualizing the IT Infrastructure VMware v Sphere uses virtualization to transform datacenters into scalable, aggregated computing infrastructures. A virtual infrastructure presen...
Page 8
VMware v Sphere Basics Virtualizing the Computer The x86 computer hardware is designed to run a single operating system and a single application, leaving most machines underused. Even with many applic...
Page 9
Chapter 1 VMware v Sphere and Virtualizing the IT Infrastructure Figure 1-2. The Infrastructure Can Span Many Physical Devices ESXi host ESXi host ESXi host ESXi host ESXi host VM VM VM VM VM VM VM VM...
Page 10
VMware v Sphere Basics Figure 1-3. In Server Consolidation, Physical Machines Are Converted to Virtual Machines to Run in a v Sphere ESXi Host physical machine 01 ESXi host virtual machines physical m...
Page 11
Chapter 1 VMware v Sphere and Virtualizing the IT Infrastructure Figure 1-4. Relationships Between the Component Layers of VMware v Sphere VMware v Sphere v Sphere v Sphere v Sphere other other Interf...
Page 12
VMware v Sphere Basics VMware v Sphere Components and Features An introduction to the components and features of VMware v Sphere helps you to understand the parts and how they interact. VMware v Spher...
Page 13
Chapter 1 VMware v Sphere and Virtualizing the IT Infrastructure v Sphere High A feature that provides high availability for virtual machines. If a server fails, Availability (HA) affected virtual mac...
Page 14
VMware v Sphere Basics Physical Topology of v Sphere Datacenter A typical VMware v Sphere datacenter consists of basic physical building blocks such as x86 virtualization servers, storage networks and...
Page 15
Chapter 1 VMware v Sphere and Virtualizing the IT Infrastructure Figure 1-5. VMware v Sphere Datacenter Physical Topology v Sphere v Center Server terminal Web Clientv Sphere Client server server serv...
Page 16
VMware v Sphere Basics 16 VMware, Inc.
Page 17
Virtualization Layer: v Sphere Datacenter The virtualization layer consists of the ESXi hypervisor, which abstracts processor, memory, video, storage, and resources into virtual machines. The virtuali...
Page 18
VMware v Sphere Basics You can use v Sphere to view, configure, and manage these key elements. The following is a list of the key elements: Computing and memory resources called hosts, clusters, and r...
Page 19
Chapter 2 Virtualization Layer: v Sphere Datacenter Resource pools are partitions of computing and memory resources from a single host or a cluster. Resource pools can be hierarchical and nested. You ...
Page 20
VMware v Sphere Basics VMware v Sphere Distributed Services v Sphere v Motion, v Sphere Storage v Motion, v Sphere DRS, v Sphere Storage DRS, Storage I/O Control, v Sphere HA, and Fault Tolerance are ...
Page 21
Chapter 2 Virtualization Layer: v Sphere Datacenter Figure 2-4. v Sphere DRS VM VM VM VM VM VM VM VM VM VM virtual machines virtual machines virtual machines ESXi host ESXi host ESXi host cluster phys...
Page 22
VMware v Sphere Basics Storage I/O Control congestion management allows cluster-wide storage I/O prioritization. You can control the amount of storage I/O that is allocated to virtual machines during ...
Page 23
Chapter 2 Virtualization Layer: v Sphere Datacenter Network Architecture VMware v Sphere has a set of virtual networking elements that lets you network the virtual machines in the datacenter like phys...
Page 24
VMware v Sphere Basics Figure 2-7. Relationship Between the Networks with v Sphere Distributed Switches Inside and Outside the Virtual Environment VM VM VM VMVM Network Distributed Port Groups v Spher...
Page 25
Chapter 2 Virtualization Layer: v Sphere Datacenter Figure 2-8. Relationship Between the Networks with v Sphere Standard Switches, Inside and Outside the Virtual Environment VM VM VM VMVM Network port...
Page 26
VMware v Sphere Basics Storage Architecture The VMware v Sphere storage architecture consists of layers of abstraction that hide the differences and manage the complexity among physical storage subsys...
Page 27
Chapter 2 Virtualization Layer: v Sphere Datacenter Each virtual machine is stored as a set of files in a directory in the datastore. The disk storage associated with each virtual guest is a set of fi...
Page 28
VMware v Sphere Basics 28 VMware, Inc.
Page 29
Management Layer: VMware v Center Server VMware v Center Server provides centralized management for datacenters. v Center Server aggregates physical resources from multiple ESXi hosts and presents a c...
Page 30
VMware v Sphere Basics Figure 3-1. v Center Server Components active third-party directory application server Fault Tolerance plug-in da ta ba se in te rfa ce v Sphere HA v Center Server Storage DRS D...
Page 31
Chapter 3 Management Layer: VMware v Center Server v Center Server Core Services Core Services are basic management services for a virtual datacenter. Core Services include the following services: Vir...
Page 32
VMware v Sphere Basics Some plug-ins are packaged separately from the base product and require separate installation. You can update plug-ins and the base product independently of each other. VMware m...
Page 33
da ta ba se in te rfa ce Interface Layer: Accessing the Virtual Infrastructure Users can access a VMware v Sphere datacenter through the v Sphere Client, through a Web browser with v Sphere Web Client...
Page 34
VMware v Sphere Basics This chapter includes the following topics: “v Sphere Client and v Sphere Web Client,” on page 34 “SDKs and Command-Line Interfaces,” on page 35 “Direct Virtual Machine Console ...
Page 35
Chapter 4 Interface Layer: Accessing the Virtual Infrastructure Using the v Sphere Web Client The v Sphere Web Client is a browser-based interface for configuring and administering virtual machines. W...
Page 36
VMware v Sphere Basics Direct Virtual Machine Console Access If the virtual machine is running and the user knows the IP address of the virtual machine, the user can directly access the virtual machin...
Page 37
Index Active Directory interface 32 HA 12, 20 alarms 31 high availability 20 APIs, database interface 32 host and VM configuration 31 host profiles 12 hosts 18 baselines, security 31 logging 31 CLI 35...
Page 38
VMware v Sphere Basics interfaces 32 plug-ins 31 VDS 23 virtual datacenter, architecture 17 virtual infrastructure, accessing 33 virtual machine inventory management 31 virtual machines convert 31 dir...
