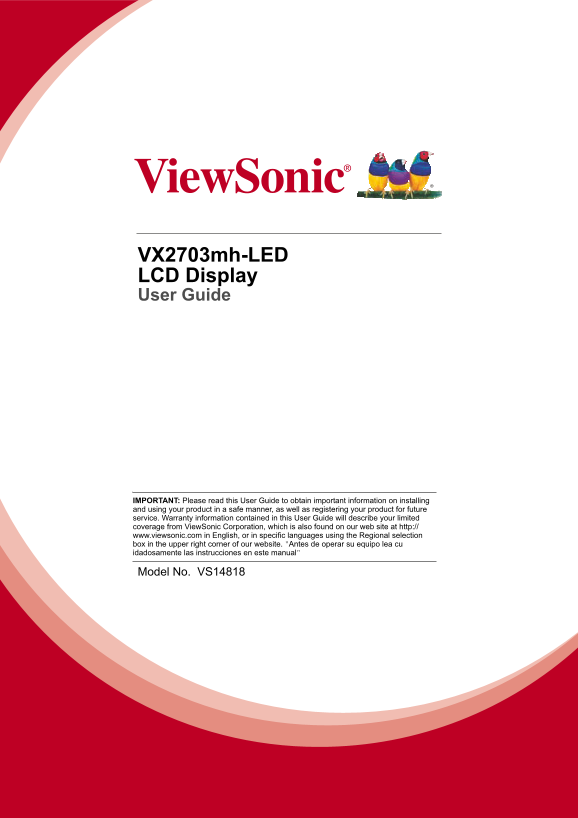

VX2703mh-LED LCD Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product fo...
Page 2
TCO Information Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, ...
Page 3
Contents Compliance Information.............................................................................. Important Safety Instructions................................................................
Page 4
Compliance Information For U.S.A. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this...
Page 5
Important Safety Instructions 1. Read these instructions completely before using the equipment. 2. Keep these instructions in a safe place. 3. Heed all warnings. 4. Follow all instructions. 5. Do not ...
Page 6
Declaration of Ro HS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain ...
Page 7
Copyright Information Copyright © View Sonic® Corporation, 2012. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Wind...
Page 8
Getting Started Congratulations on your purchase of a View Sonic® LCD display. Important! Save the original box and all packing material for future shipping needs. NOTE: The word “Windows” in this use...
Page 9
Quick Installation 1. Connect power cord (and AC/DC Wait for the CD-ROM to auto-start. adapter if required) NOTE: If the CD-ROM does not auto- 2. Connect video cable start: double-click on the CD-ROM ...
Page 10
Wall Mounting (Optional) For use only with UL Listed Wall Mount Bracket To obtain a wall-mounting kit or height adjustment base, contact View Sonic® or your local dealer. Refer to the instructions tha...
Page 11
Using the LCD Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution ...
Page 12
Adjusting the Screen Image Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. The OSD controls are explained at the top of the next page and...
Page 13
Do the following to adjust the display setting: 1. To display the Main Menu, press button [1]. NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds. This is adjust...
Page 14
Main Menu Controls Adjust the menu items shown below by using the up and down buttons. Control Explanation Auto Image Adjust automatically sizes, centers, and fine tunes the video signal to eliminate ...
Page 15
Control Explanation Color Adjust provides several color adjustment modes, including preset color temperatures and a User Color mode which allows independent adjustment of red (R), green (G), and blue ...
Page 16
Control Explanation Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the View Sonic® website URL. S...
Page 17
Control Explanation Dynamic Contrast allows the user to turn the contrast ratio enhancement on or off. Aspect ratio Selects the image size for 4:3 and full screen. Overscan allows the user to cut off ...
Page 18
Control Explanation Power Indicator allows the user to select the Power Indicator On/Off for Power On/Off mode. Memory Recall returns the adjustments back to factory settings if the display is operati...
Page 19
Other Information Specifications LCD Type TFT (Thin Film Transistor), Active Matrix 1920 x 1080 LCD, 0.3114 mm pixel pitch Display Size Metric: 68.58cm Imperial: 27” (27” viewable) Color Filter RGB ve...
Page 20
Troubleshooting No power Make sure power button (or switch) is ON. Make sure A/C power cord is securely connected to the LCD display. Plug another electrical device (like a radio) into the power outle...
Page 21
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. Country/Region Website T = Telephone Email F = F...
Page 22
Cleaning the LCD Display MAKE SURE THE LCD DISPLAY IS TURNED OFF. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE. To clean the screen: 1. Wipe the screen with a clean, soft, lint-free...
Page 23
Limited Warranty VIEWSONIC® LCD DISPLAY What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If...
Page 24
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
Page 25
Mexico Limited Warranty VIEWSONIC® DISPLAY PRODUCTS What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warrant...
Page 26
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
