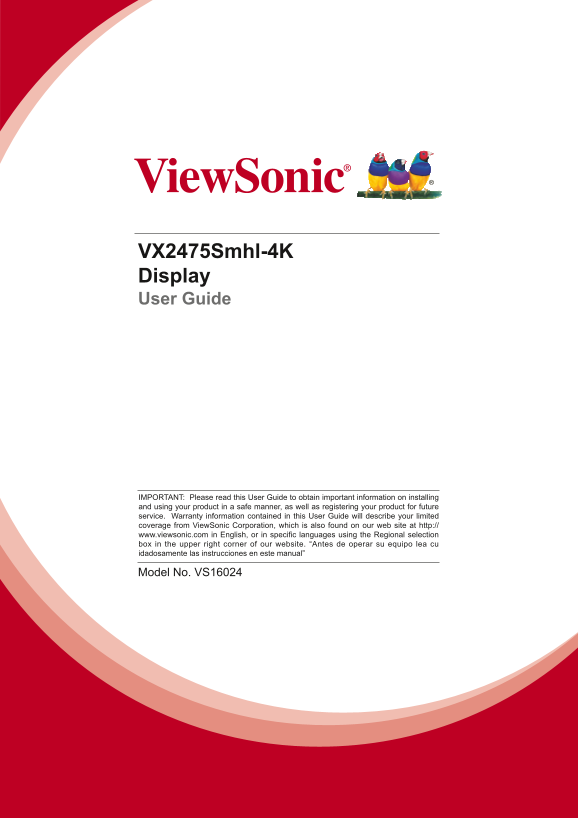

Page 1
VX2475Smhl-4K Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for f...
Page 2
Thank you for choosing View Sonic With over 25 years as a world leading provider of visual solutions, View Sonic is dedicated to exceeding the world’s expectations for technological evolution, innovat...
Page 3
Compliance Information NOTE: This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant m...
Page 4
TCO Information Congratulations! This product is TCO Certified – for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures th...
Page 5
Declaration of Ro HS2 Compliance This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain...
Page 6
Cautions and Warnings 1. Read these instructions completely before using the equipment. 2. Keep these instructions in a safe place. 3. Heed all warnings and follow all instructions. 4. Sit at least 18...
Page 7
20. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the equipment. When a cart is used, use caution when moving the cart/equipment combination to a...
Page 8
Contents Compliance Information FCC Compliance Statement ...................................................................................i Industry Canada Statement ...................................
Page 9
Copyright Information Copyright © View Sonic Corporation, 2015. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, and the Windows logo are ...
Page 10
Product Registration To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on View Sonic’s website to regist...
Page 11
Getting Started Congratulations on your purchase of a View Sonic® display. Important! Save the original box and all packing material for future shipping needs. NOTE: The word “Windows” in this user gu...
Page 12
Quick Installation 1. Connect video cable • Make sure both the display and computer are turned OFF. • Remove rear panel covers if necessary. • Connect the video cable from the display to the computer....
Page 13
Wall Mounting (Optional) NOTE: For use only with UL Listed Wall Mount Bracket with minimum weight/load: 3.7kg To obtain a wall-mounting kit or height adjustment base, contact View Sonic® or your local...
Page 14
Using the Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution (exa...
Page 15
Adjusting the Screen Image Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. Standby Power On/Off Power light Blue = ON Amber = Power Savin...
Page 16
Main Menu Controls Adjust the menu items by using the up ▲ and down ▼ buttons. NOTE: Check the Main Menu items on your display OSD and refer to Main Menu Explanation below. Main Menu Explanation NOTE:...
Page 17
Input Select toggles between inputs if you have more than one computer connected to the display. Manual Image Adjust displays the Manual Image Adjust menu. You can manually set a variety of image qual...
Page 18
Other Information Specifications Display Type TFT (Thin Film Transistor), Active Matrix 3840 x 2160 Display, 0.4525mm pixel pitch Display Size Metric: 59.9 cm Imperial: 23.6” (23.6” viewable) Color Fi...
Page 19
Cleaning the Display • MAKE SURE THE DISPLAY IS TURNED OFF. • NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE. To clean the screen: 1. Wipe the screen with a clean, soft, lint-free clo...
Page 20
Troubleshooting No power • Make sure power button (or switch) is ON. • Make sure A/C power cord is securely connected to the display. • Plug another electrical device (like a radio) into the power out...
Page 21
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. T= Telephone Country/Region Website Email C = CH...
Page 22
Limited Warranty View Sonic® Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a ...
Page 23
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
Page 24
Mexico Limited Warranty View Sonic® Display What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period...
Page 25
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
