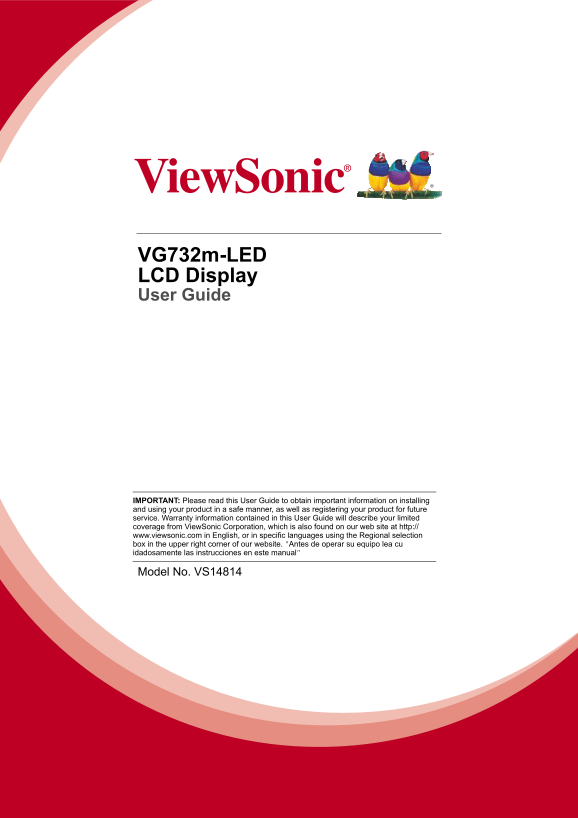

VG732m-LED LCD Display User Guide IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for ...
Page 2
Contents Compliance Information.............................................................................. Important Safety Instructions................................................................
Page 3
Compliance Information For U.S.A. This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this...
Page 4
Important Safety Instructions 1. Read these instructions completely before using the equipment. 2. Keep these instructions in a safe place. 3. Heed all warnings. 4. Follow all instructions. 5. Do not ...
Page 5
Declaration of Ro HS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain ...
Page 6
Copyright Information Copyright © View Sonic® Corporation, 2012. All rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Wind...
Page 7
Getting Started Congratulations on your purchase of a View Sonic® LCD display. Important! Save the original box and all packing material for future shipping needs. NOTE: The word “Windows” in this use...
Page 8
Quick Installation 1. Connect AC/DC Adapter to LCD Dis- Wait for the CD-ROM to auto-start. play, and then plug in power cord to AC NOTE: If the CD-ROM does not auto- outlet. start: double-click on the...
Page 9
Wall Mounting (Optional) For use only with UL Listed Wall Mount Bracket To obtain a wall-mounting kit, contact View Sonic® or your local dealer. Refer to the instructions that come with the base mount...
Page 10
To Raise and Lower the display You can easily raise and lower the display panel (the head) manually. As you face the front of the display, take hold of each side of the head and pull up or down. The p...
Page 11
Using the LCD Display Setting the Timing Mode Setting the timing mode is important for maximizing the quality of the screen image and minimizing eye strain. The timing mode consists of the resolution ...
Page 12
Adjusting the Screen Image Use the buttons on the front control panel to display and adjust the OSD controls which display on the screen. The OSD controls are explained at the top of the next page and...
Page 13
Do the following to adjust the display setting: 1. To display the Main Menu, press button [1]. NOTE: All OSD menus and adjustment screens disappear automatically after about 15 seconds. This is adjust...
Page 14
Main Menu Controls Adjust the menu items shown below by using the up and down buttons. Control Explanation Auto Image Adjust sizes and centers the screen image automatically. Contrast adjusts the diff...
Page 15
Control Explanation 7500K-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). 6500K-Adds red to the screen image for warmer white and richer red. 5...
Page 16
Control Explanation H./V. Position (Horizontal/Vertical Position) moves the screen image left or right and up or down. Fine Tune sharpens the focus by aligning text and/or graphics with pixel boundari...
Page 17
Control Explanation OSD Position allows the user to move the OSD menus and control screens. OSD Time Out sets the length of time the OSD screen is displayed. For example, with a “15 second” setting, i...
Page 18
Other Information Specifications LCD Type TFT (Thin Film Transistor), Active Matrix 1280 x 1024 LCD, 0.264 mm pixel pitch Display Size Metric: 43cm Imperial: 17” (17” viewable) Color Filter RGB vertic...
Page 19
Troubleshooting No power Make sure power button (or switch) is ON. Make sure A/C power cord is securely connected to the LCD display. Plug another electrical device (like a radio) into the power outle...
Page 20
Customer Support For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product serial number. Country/Region Website T = Telephone Email F = F...
Page 21
Cleaning the LCD Display MAKE SURE THE LCD DISPLAY IS TURNED OFF. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE. To clean the screen: 1. Wipe the screen with a clean, soft, lint-free...
Page 22
Limited Warranty VIEWSONIC® LCD DISPLAY What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If...
Page 23
Exclusion of damages: View Sonic's liability is limited to the cost of repair or replacement of the product. View Sonic shall not be liable for: 1. Damage to other property caused by any defects in th...
Page 24
Mexico Limited Warranty VIEWSONIC® DISPLAY PRODUCTS What the warranty covers: View Sonic warrants its products to be free from defects in material and workmanship, under normal use, during the warrant...
Page 25
Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico: Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corp...
