Summary
These Vishay Semiconductor Zener Diodes are essential, low-profile Surface Mount Device (SMD) components engineered for highly reliable voltage regulation and circuit protection. The manual provides comprehensive electrical and thermal data for a wide range of voltages (3V to 200V), detailing surge current specifications, leakage characteristics, and operational stability. It is designed for electronics engineers and designers requiring stable power solutions that meet modern compliance standards (RoHS/Pb-free) in demanding applications.

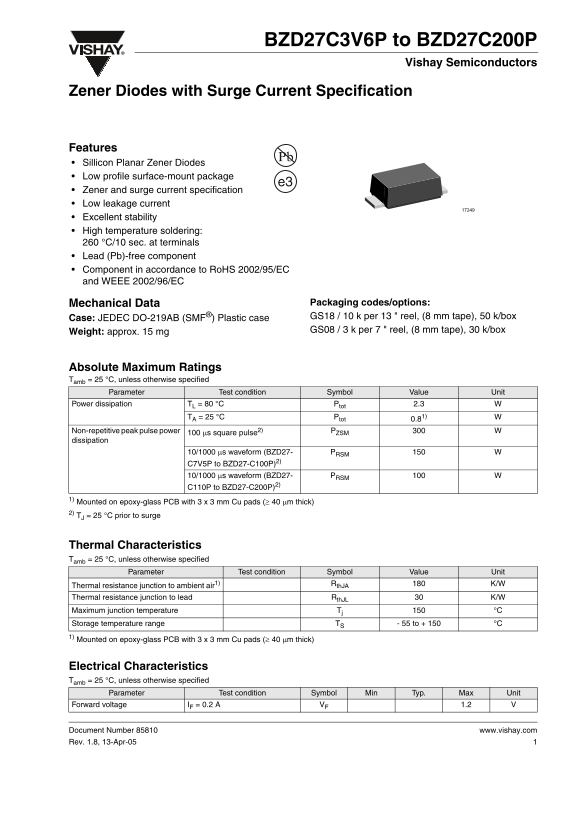

Page 1 Text Content
BZD27C3V6P to BZD27C200P
Vishay Semiconductors
Zener Diodes with Surge Current Specification
Features Sillicon Planar Zener Diodes Low profile surface-mount package
Zener and surge current specification Low leakage current Excellent stability High temperature soldering: °C/10 sec. at terminals Lead (Pb)-free component Component in accordance to Ro HS 2002/95/EC and WEEE 2002/96/EC
Mechanical Data Packaging codes/options: Case: JEDEC DO-219AB (SMF®) Plastic case GS18 / 10 k per 13 " reel, (8 mm tape), 50 k/box Weight: approx. 15 mg GS08 / 3 k per 7 " reel, (8 mm tape), 30 k/box
Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Power dissipation TL = 80 °C Ptot 2.3
TA = 25 °C Ptot
Non-repetitive peak pulse power PZSM
100 µs square pulse2)
dissipation
10/1000 µs waveform (BZD27- PRSM
C7V5P to BZD27-C100P)2)
10/1000 µs waveform (BZD27- PRSM
C110P to BZD27-C200P)2)
1) Mounted on epoxy-glass PCB with 3 x 3 mm Cu pads (≥ 40 µm thick)
2) TJ = 25
°C prior to surge
Thermal Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Value Unit
Rth JA K/W
Thermal resistance junction to ambient air1) Thermal resistance junction to lead Rth JL K/W Maximum junction temperature Tj °C Storage temperature range TS - 55 to + 150 °C 1) Mounted on epoxy-glass PCB with 3 x 3 mm Cu pads (≥ 40 µm thick)
Electrical Characteristics Tamb = 25 °C, unless otherwise specified
Parameter Test condition Symbol Min Typ. Max Unit
Forward voltage IF = 0.2 A VF 1.2
Document Number 85810 www.vishay.com Rev. 1.8, 13-Apr-05
