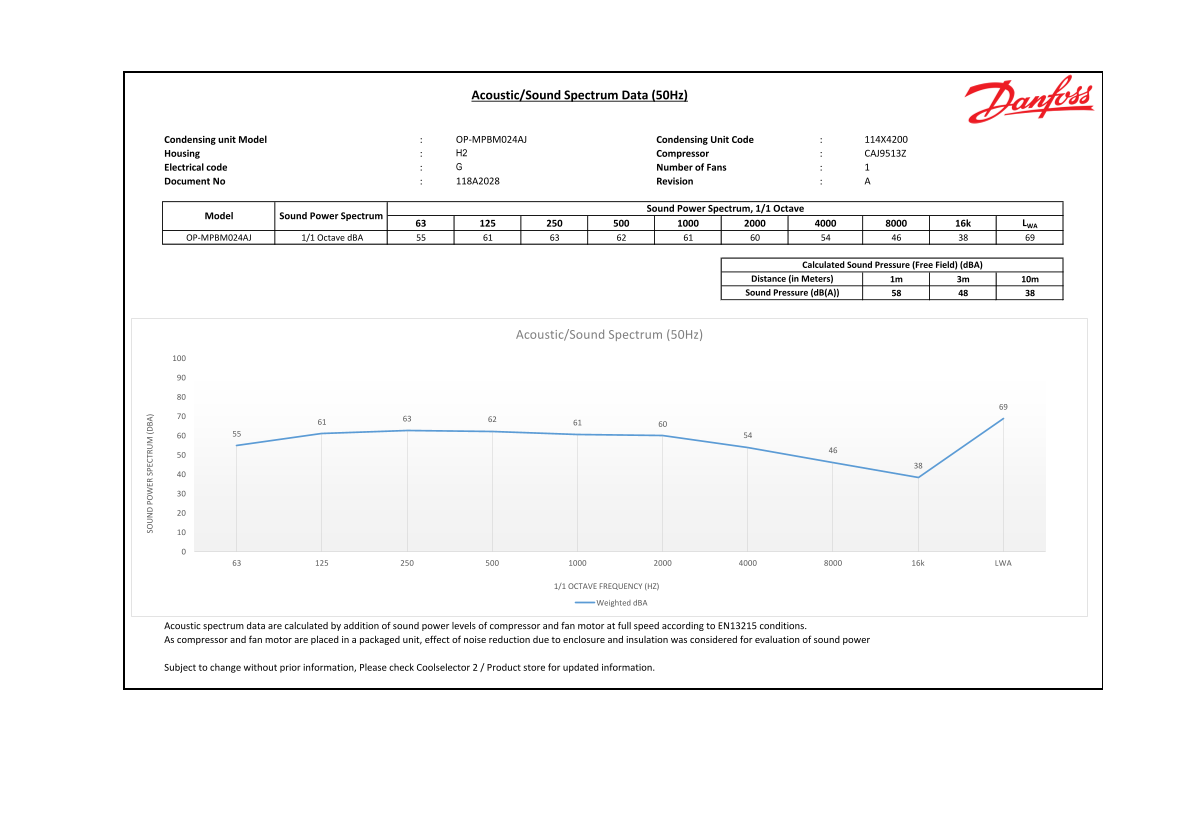

Acoustic/Sound Spectrum Data (50Hz)
Condensing unit Model OP-MPBM024AJ Condensing Unit Code : 114X4200
SO ER EC TR
Housing H2 Compressor : CAJ9513Z
Electrical code Number of Fans : 1
Document No 118A2028 Revision : A
Sound Power Spectrum, 1/1 Octave
Model Sound Power Spectrum
16k LWA
OP-MPBM024AJ 1/1 Octave d BA
Calculated Sound Pressure (Free Field) (d BA)
Distance (in Meters) 1m 3m 10m Sound Pressure (d B(A))
Acoustic/Sound Spectrum (50Hz)
16k LWA
1/1 OCTAVE FREQUENCY (HZ)
Weighted d BA
Acoustic spectrum data are calculated by addition of sound power levels of compressor and fan motor at full speed according to EN13215 conditions. As compressor and fan motor are placed in a packaged unit, effect of noise reduction due to enclosure and insulation was considered for evaluation of sound power
Subject to change without prior information, Please check Coolselector 2 / Product store for updated information.
