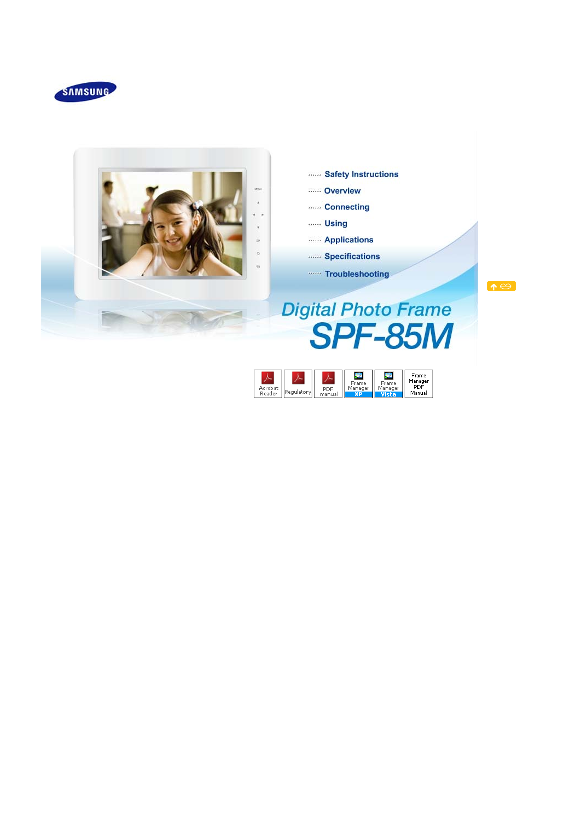

Samsung SPF-85M Digital Picture Frame User's Manual
Summary
Comprehensive safety and usage guide for your electronic appliance. This manual provides critical, step-by-step instructions covering safe power connection, proper installation techniques, routine cleaning procedures, and handling precautions. It is essential reading for all users to ensure maximum safety during setup, operation, and maintenance, preventing electric shock, physical damage, or fire hazards.
Page Summary Contents For Samsung SPF-85M Digital Picture Frame User's Manual
Page 2
Using and | Safety Symbols | Power | Installation Cleaning Safety Symbols Make sure to follow the directions below to prevent accidents and damage to the product. Failure to follow the accompanying di...
Page 3
Do not connect more than one appliance to a single outlet, as an overheated outlet may cause fire. Do not use force to pull the power cord. Don't place anything heavy on the power cord, as this may ca...
Page 4
Using and | Safety Symbols | Power | Installation Cleaning Installation When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Failin...
Page 5
Using and | Safety Symbols | Power | Installation Cleaning Using and Cleaning Do not insert any metal objects such as forks, wire, or gimlets, or flammable items such as paper or matches into the port...
Page 6
If the product needs to be installed in a location that doesn't satisfy general conditions, make sure to contact one of our service engineers about the installation as the product may encounter seriou...
Page 7
| Features | Components | Front | Back | Side Features Expansion of built-in memory using memory cards. Instant view of stored images. Background music function. Provides a Mini-Monitor function. Styl...
Page 8
Warranty Quick Start User Manual (Not available in all locations) Cables USB cable Power cord Power Adapter (A-mini B type) | Features | Components | Front | Back | Side The product color and shape ma...
Page 9
The product color and shape may vary depending on the model. Connect the power adapter to this jack. DC –In Jack Connect the power cord to the power terminal of the power adapter. ] Power Button Turns...
Page 10
You can listen to sound by connecting headphones or earphones to the product. Headphone connection jack MEMORY CARD Allows you to insert an optional memory card. (Only applicable for SD/MS card) Conne...
Page 11
| Power | USB | Memory Card Connecting the Power Connect the adapter cable to the power terminal on the back of the product. Connect the power cord to the power adapter. Plug the power cord for the pr...
Page 12
Up Stream Used to connect your digital photo frame to a PC. Terminal When connecting your digital photo frame to a PC through the up stream terminal, make sure to use the USB cable provided with the p...
Page 13
MEMORY CARD Slide the card in the direction marked on the top of the card. Removing the memory card while playing MP3s, movies, or photos, may cause the product to operate abnormally. In this case, tu...
Page 14
If no button is pressed for ten (10) minutes, Slideshow or Clock mode is activated. However, if a music file is being played, Clock mode is activated and the filename of that music file is displayed. ...
Page 15
If you press the Menu button, the menu of the selected item is displayed on the screen. Menu Description Open Opens the selected folder. Copy Copies the selected folder. Delete Deletes the selected fo...
Page 16
If you press the Menu button, the menu of the selected item is displayed on the screen. This product can only support up to 4,000 pictures. If there are more than 4,000 pictures, slideshow will not be...
Page 17
Direct Functions Menu Description MENU Opens the on-screen menu and exits from the menu. Plays the next file. Plays the previous. Adjusts the volume. Play or pause a Slideshow. Photo | Music | Movie |...
Page 18
If you press the Menu button, the menu of the selected item is displayed on the screen. Sub-Menu Description All musics, Music in Folder, Shuffle all musics, Shuffle music in Folder, Repeat one music ...
Page 19
Sub-Menu Description Play Movie Plays a file. All movies, Movie in Folder, Shuffle all movies, Shuffle movie in Folder, Repeat one movie Play Mode Selects the play mode. Copy Copies the selected file ...
Page 20
Clock & Alarm Sub-Menu Detailed Menu Description Month, Day, Year, Hour, Minute, am/pm (when the Time Format is set to 12 Hours). Date and Time Month, Day, Year, Hour, Minute (when the Time Format...
Page 21
Sub-Menu Detailed Menu Description Language English, Deutsch, Español, Français, Italiano, Nederlands, Polski, Русский, Português, Svenska, Türkçe, 简体中文, 日本語,한국어 You can select the language for the pr...
Page 22
If the product is being used as a Mini-Monitor or a Mass Storage device connected to your PC via a USB cable, the screen will not be turned off even if the Off Time is reached. You can update the prod...
Page 23
The Digital Photo Frame not only allows you to appreciate photos but also provides an additional Mini-Monitor function. The Mini-Monitor is a function for using the Digital Photo Frame as an auxiliary...
Page 24
11. If the video card's driver is updated while Frame Manager is installed, the Mini-Monitor function may not operate properly. In this case, remove Frame Manager and install it again. 12. If the rota...
Page 25
| Specifications | Supported Files Specifications Items Specifications Model Name SPF-85M Type 8 "(20 cm)TFT Resolution 800 x 600 Panel Contrast Ratio 500 : 1 Interface Digital 6 bit JPEG Max Ima...
Page 26
1.7 lbs / 787 g (Without Stand) Weight 1.8 lbs / 827 g (With Stand) The product design may differ according to the model, and specifications are subject to change without prior notice for product perf...
Page 27
| Troubleshooting | Terminology | Service Centers Troubleshooting This section lists various problems and solutions encountered by users while using the digital photo frame. When encountering a proble...
Page 28
Check whether the button lock function is activated. If you hold down the MENU button for more than five (5) seconds, the button I pressed a button, but it does not lock function is activated. If you ...
Page 29
Samsung Electronics web site http://www.samsung.com If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. North America U.S.A 1-800-SAMSU...
Page 30
DENMARK 8 - SAMSUNG (7267864) http://www.samsung.com/dk EIRE 0818 717 100 http://www.samsung.com/ie FINLAND 30 - 6227 515 http://www.samsung.com/fi FRANCE 01 4863 0000 http://www.samsung.com/fr GERMAN...
Page 31
http://www.samsung.com/hk HONG KONG 3698-4698 http://www.samsung.com/hk_en/ INDIA 1800 110011 http://www.samsung.com/in INDONESIA 0800-112-8888 http://www.samsung.com/id JAPAN 0120-327-527 http://www....
Manual Details
| Brand | Samsung |
|---|---|
| Pages | 31 |
| File Size | 758.92 KB |
| Published | June 15, 2026 |
7 views
Enter the captcha to get the download link:
Frequently Asked Questions
What should I do before moving the product?
Turn the power off, disconnect the power plug from the outlet, and disconnect all connection cables.
How should I clean the equipment safely?
First, unplug it, then wipe it with a soft, dry cloth. Avoid using chemicals like benzene or alcohol.
Can this product be used near moisture or outdoors?
No. Keep it away from places exposed to oil, smoke, moisture, water, snow, rain, or in vehicles.
What if I hear burning smells or strange sounds?
Disconnect the power plug immediately and contact a service center.
