Phoenix Contact Mini MCR-SL-I-I(-SP) Mini MCR-SL-U-U(-SP) Data Sheet Manual
Summary
This robust industrial signal amplifier provides reliable electrical isolation, conditioning, and amplification for critical analog signals (including standard outputs like 4–20mA and ±10V). Designed for integration into complex control systems, this unit is ideal for engineers and maintenance technicians building equipment in demanding or hazardous environments. The documentation covers all technical specifications, power supply connections, DIN rail mounting details, and necessary compliance guidelines for professional industrial automation use.

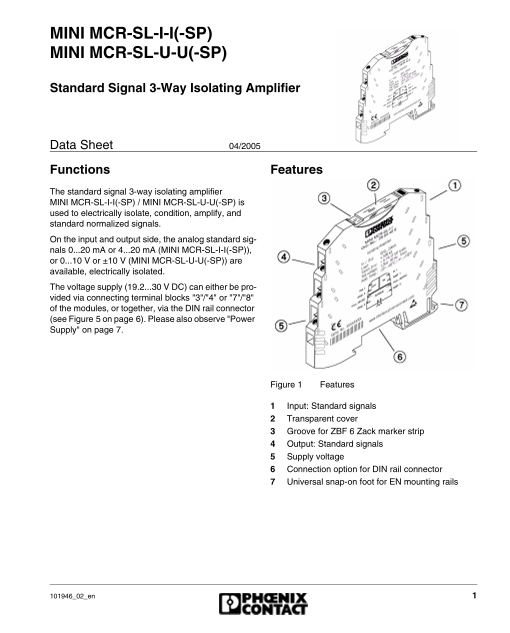

Page 1 Text Content
MINI MCR-SL-I-I(-SP) MINI MCR-SL-U-U(-SP)
Standard Signal 3-Way Isolating Amplifier
04/2005Data Sheet
Functions Features
The standard signal 3-way isolating amplifier MINI MCR-SL-I-I(-SP) / MINI MCR-SL-U-U(-SP) is used to electrically isolate, condition, amplify, and standard normalized signals. On the input and output side, the analog standard sig- nals 0...20 m A or 4...20 m A (MINI MCR-SL-I-I(-SP)), or 0...10 V or ±10 V (MINI MCR-SL-U-U(-SP)) are available, electrically isolated. The voltage supply (19.2...30 V DC) can either be pro- vided via connecting terminal blocks "3"/"4" or "7"/"8" of the modules, or together, via the DIN rail connector (see Figure 5 on page 6). Please also observe "Power Supply" on page 7.
Figure Features
Input: Standard signals Transparent cover Groove for ZBF 6 Zack marker strip Output: Standard signals Supply voltage Connection option for DIN rail connector Universal snap-on foot for EN mounting rails
101946_02_en
Page Summary Contents For Phoenix Contact Mini MCR-SL-I-I(-SP) Mini MCR-SL-U-U(-SP) Data Sheet Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 7 |
| File Size | 1.01 MB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How should I power the MINI MCR-SL unit?
Never connect the supply voltage directly to the DIN rail connector; use a specific terminal block or system power supply.
What are the supported signal ranges for different models?
The MINI MCR-SL-I-I(-SP) supports 0...20 mA / 4...20 mA, while the MINI MCR-SL-U-U(-SP) handles 0...10 V or ±10 V.
What are the mandatory safety considerations for installation?
This equipment is suitable only for use in Class I, Division 2, Groups A, B, C and D or non-hazardous locations.
Is a fuse required when setting up the power supply?
Yes, it is recommended to connect a 2 A fuse upstream before powering the unit.
