PHILIPS UDA1351TS Data Sheet
Summary
Elevate your digital audio systems with this comprehensive manual for the UDA1351TS, a high-performance 96 kHz IEC 958 audio decoder and integrated stereo DAC. Designed for electronic engineers and hardware developers, this guide provides deep technical specifications, detailing everything from L3 control interfaces to advanced filter stream processing and optimal soldering procedures. Use it as an authoritative resource when designing professional-grade, high-fidelity audio equipment requiring robust bitstream conversion.
Page 1 Text Content
查询UDA1351TS供应商
INTEGRATED CIRCUITS
DATA SHEET
UDA1351TS 96 k Hz IEC 958 audio DAC Preliminary specification Mar File under Integrated Circuits, IC01
Page Summary Contents For PHILIPS UDA1351TS Data Sheet

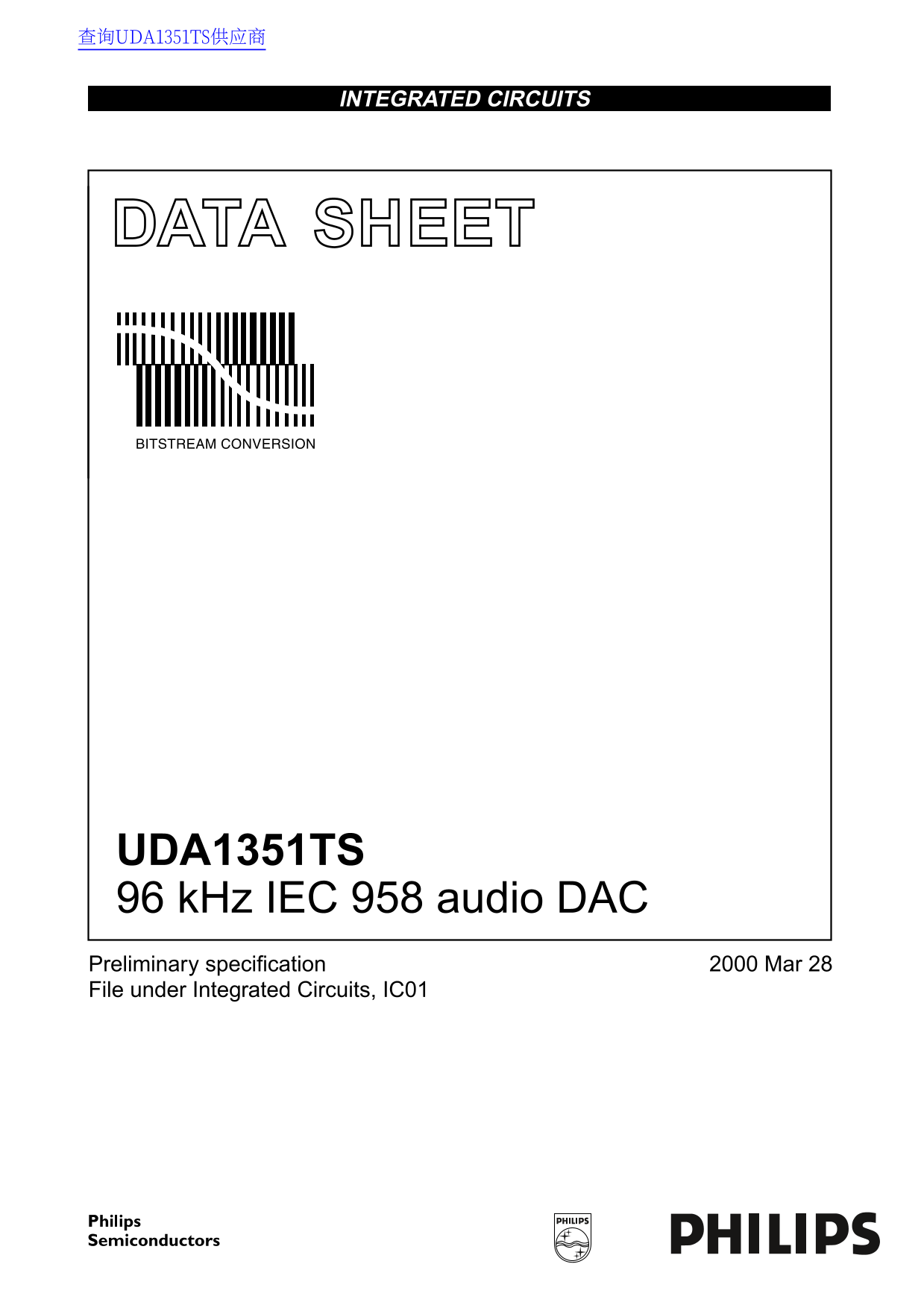

Page 1
查询UDA1351TS供应商 INTEGRATED CIRCUITS DATA SHEET UDA1351TS 96 k Hz IEC 958 audio DAC Preliminary specification Mar File under Integrated Circuits, IC01
Page 2
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS CONTENTS LIMITING VALUES THERMAL CHARACTERISTICS FEATURES CHARACTERISTICS 1.1 General TIMING CHARACTERISTICS 1.2 Co...
Page 3
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS FEATURES 1.1 General 2.7 to 3.6 V power supply Integrated digital filter and Digital-to-Analog Converter (DAC) Mast...
Page 4
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Supplies VDDD digital supply voltage 2.7 3.0 3...
Page 5
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS BLOCK DIAGRAM handbook, full pagewidth VSSA VDDA(DAC) Vref TEST1 TEST3 VDDA VSSA(DAC) TEST2 TEST4 VOUTL VOUTR 24VDD...
Page 6
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS PINNING SYMBOL PIN TYPE(1) DESCRIPTION n.c. not connected n.c. not connected VDDD DS digital supply voltage TEST1 D...
Page 7
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS Table 1 Pin type references PIN TYPE DESCRIPTION DS digital supply DGND digital ground AS analog supply AGND analog...
Page 8
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS FUNCTIONAL DESCRIPTION The UDA1351TS is low cost audio IEC decoder with MGU119 an on-board DAC. The minimum audio i...
Page 9
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS When used in the L3 control mode, it provides the following additional features: Volume control, using 6 bits Bass ...
Page 10
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.5 Control control mode, pins L3MODE and L3DATA are used to select the format for the data output and input interf...
Page 11
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.5.2 L3 CONTROL MODE The L3 control mode allows maximum flexibility in controlling the UDA1351TS. It should be not...
Page 12
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6 L3 interface Basically, two types of data transfers can be defined: Write action: data transfer to the device 8...
Page 13
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 14
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6.4 DATA WRITE MODE For reading data from device, the following six bytes are involved (see Table 7): The data wr...
Page 15
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6.6 INITIALIZATION STRING For proper and reliable operation, the UDA1351TS must be initialized in the L3 control ...
Page 16
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 17
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6.8 WRITABLE REGISTERS −3 d B point for maximum setting is 300 Hz. The default value is ‘0000’. 8.6.8.1 Restoring...
Page 18
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6.8.8 Volume control 8.6.8.10 PLL reset 6-bit value to program the and channel volume 1-bit value to reset the PL...
Page 19
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 8.6.9.4 Audio sample frequency detection 8.6.9.6 Pre-emphasis detection 2-bit value indicating the audio sample fre...
Page 20
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth(j-a) thermal resistance from junction to ambient...
Page 21
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Digital-to-analog converter; note Vref reference voltage measured w...
Page 22
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS TIMING CHARACTERISTICS VDDD VDDA 2.7 to 3.6 V; Tamb −40 to +85 °C; RL kΩ; all voltages measured with respect to gro...
Page 23
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS handbook, full pagewidth L3MODE th(L3)A tsu(L3)A t CLK(L3)L tsu(L3)A t CLK(L3)H th(L3)A L3CLOCK Tcy(CLK)(L3) th(L3)...
Page 24
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 25
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS PACKAGE OUTLINE SSOP28: plastic shrink small outline package; 28 leads; body width 5.3 mm SOT341-1 pin 1 index deta...
Page 26
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS SOLDERING If wave soldering is used the following conditions must be observed for optimal results: 15.1 Introductio...
Page 27
Philips Semiconductors Preliminary specification 96 k Hz IEC 958 audio DAC UDA1351TS 15.5 Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE WAVE R...
Page 28
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
Manual Details
| Brand | Philips |
|---|---|
| Pages | 28 |
| File Size | 131.35 KB |
| Published | July 22, 2026 |
0 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the volume adjustment range available for this DAC?
Volume control provides 1 dB steps, starting from 0 dB down to −60 dB.
Is the UDA1351TS compatible with older models?
Yes, the UDA1351TS is fully pin and function compatible with the UDA1350ATS.
What does the LOCK signal indicate status-wise?
Pin LOCK indicates both lock indication for the IEC 958 decoder and whether PCM data is applied to the input.
What temperature range can this device operate in?
The ambient temperature operating range, T amb, is specified from −40 °C to +85 °C.
