Philips UDA1324TS Data Sheet
Summary
This ultra low-voltage stereo DAC is specifically designed for integration into portable digital audio equipment that requires high linearity and low power consumption. The manual provides comprehensive coverage of its features, detailing two distinct operating modes—advanced L3 mode and simple Static Pin Mode—to accommodate diverse digital processing needs, including multiple I²S input formats (16-20 bits). Ideal for engineers building sophisticated, compact audio playback functions.
Page 1 Text Content
查询UDA1324TS供应商
INTEGRATED CIRCUITS
DATA SHEET
UDA1324TS Ultra low-voltage stereo filter DAC Preliminary specification Jan Supersedes data of 1999 Oct File under Integrated Circuits, IC01
Page Summary Contents For Philips UDA1324TS Data Sheet

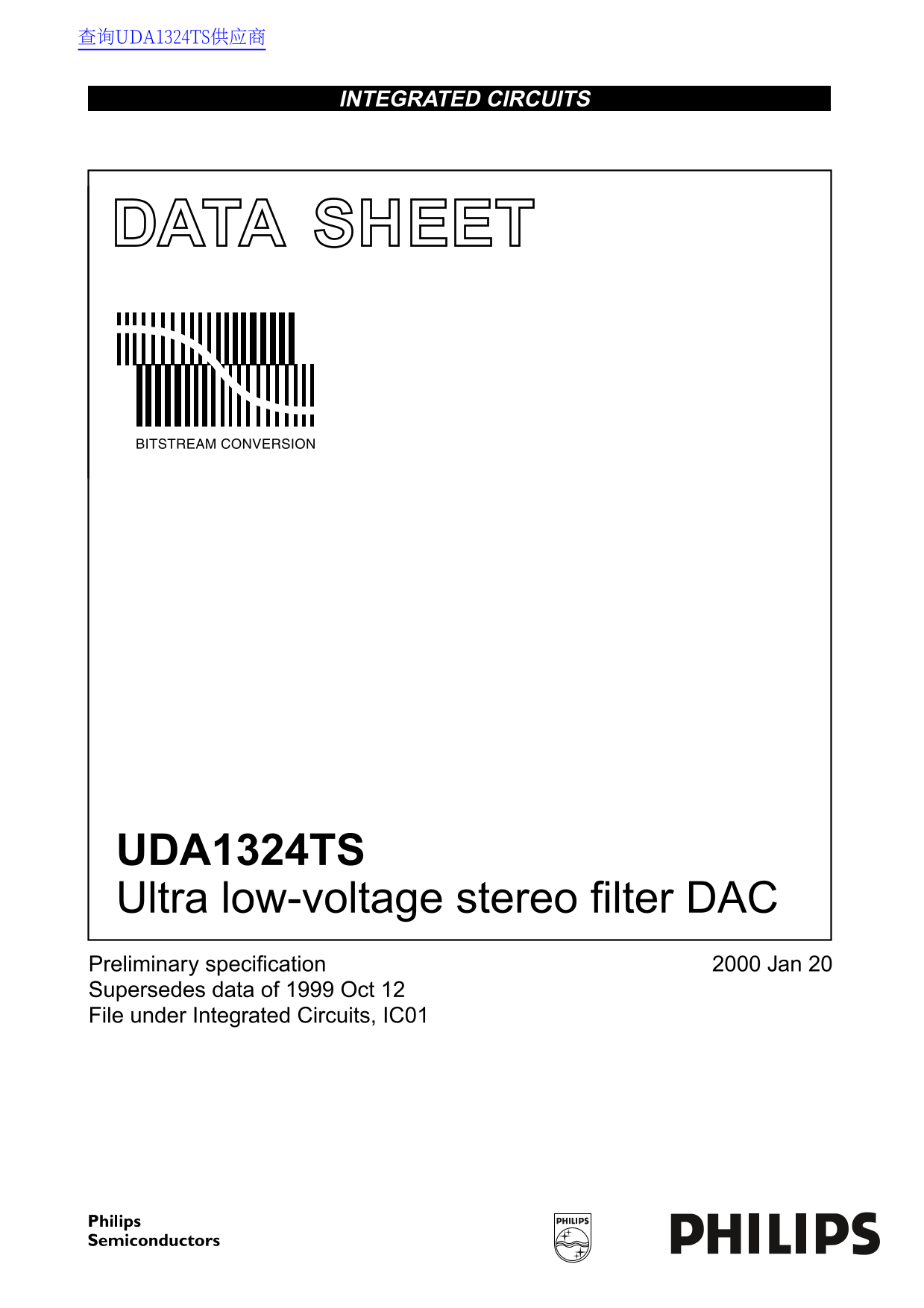

Page 1
查询UDA1324TS供应商 INTEGRATED CIRCUITS DATA SHEET UDA1324TS Ultra low-voltage stereo filter DAC Preliminary specification Jan Supersedes data of 1999 Oct File under Integrated Circuits, IC01
Page 2
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS FEATURES General Low power consumption Ultra low power supply voltage from 1.9 to 2.7 Selectable control ...
Page 3
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Supplies VDDA analog supply voltage ...
Page 4
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS PINNING FUNCTIONAL DESCRIPTION System clock SYMBOL PIN DESCRIPTION BCK bit clock input The UDA1324TS oper...
Page 5
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS In the L3 mode, pin APPL0 must be set to LOW. It should Interpolation filter be noted that when the L3 mo...
Page 6
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 7
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS L3 INTERFACE The fundamental timing of data transfers (see Fig.5) is essentially the same as the address ...
Page 8
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS handbook, full pagewidth L3MODE th(L3)A tsu(L3)A t CLK(L3)L tsu(L3)A t CLK(L3)H th(L3)A L3CLOCK Tcy(CLK)(...
Page 9
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS tstp(L3) handbook, full pagewidth L3MODE L3CLOCK L3DATA address data byte #2 addressdata byte #1 MGL725 F...
Page 10
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS SYSTEM CLOCK FREQUENCY VOLUME CONTROL The system clock frequency is a 2-bit value to select the The volum...
Page 11
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 60134). SYMBOL PARAMETER CONDI...
Page 12
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Digital inputs: pins BCK, WS, DATAI, SYSCLK, APPL0, APPL1...
Page 13
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS TIMING VDDD VDDA 1.9 to 2.7 V; Tamb −40 to +85 °C; RL kΩ; all voltages referenced to ground (pins VSSA an...
Page 14
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS handbook, full pagewidth t CWH MGR984 t CWL Tsys Fig.7 System clock timing. handbook, full pagewidth th(W...
Page 15
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS APPLICATION INFORMATION handbook, full pagewidth analog digital supply voltage supply voltage VSSA VDDA V...
Page 16
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS PACKAGE OUTLINE SSOP16: plastic shrink small outline package; 16 leads; body width 4.4 mm SOT369-1 pin 1 ...
Page 17
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS SOLDERING If wave soldering is used the following conditions must be observed for optimal results: Introd...
Page 18
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE W...
Page 19
Philips Semiconductors Preliminary specification Ultra low-voltage stereo filter DAC UDA1324TS NOTES
Page 20
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
