Philips TEA1206T Data Sheet
Summary
Discover the TEA1206T, a high-efficiency, fully integrated DC/DC converter designed for reliable power management. This manual provides comprehensive technical details covering operational parameters, pin configuration, and performance data for stable up/down voltage conversion. Ideal for engineers developing portable electronics, including cellular phones, PDAs, battery backup systems, and cameras that require low quiescent power consumption and guaranteed Li-ion compatibility.
Page 1 Text Content
查询TEA1206供应商
INTEGRATED CIRCUITS
DATA SHEET
TEA1206T High efficiency DC/DC converter Preliminary specification Sep Supersedes data of 1998 Mar File under Integrated Circuits, IC03
Page Summary Contents For Philips TEA1206T Data Sheet

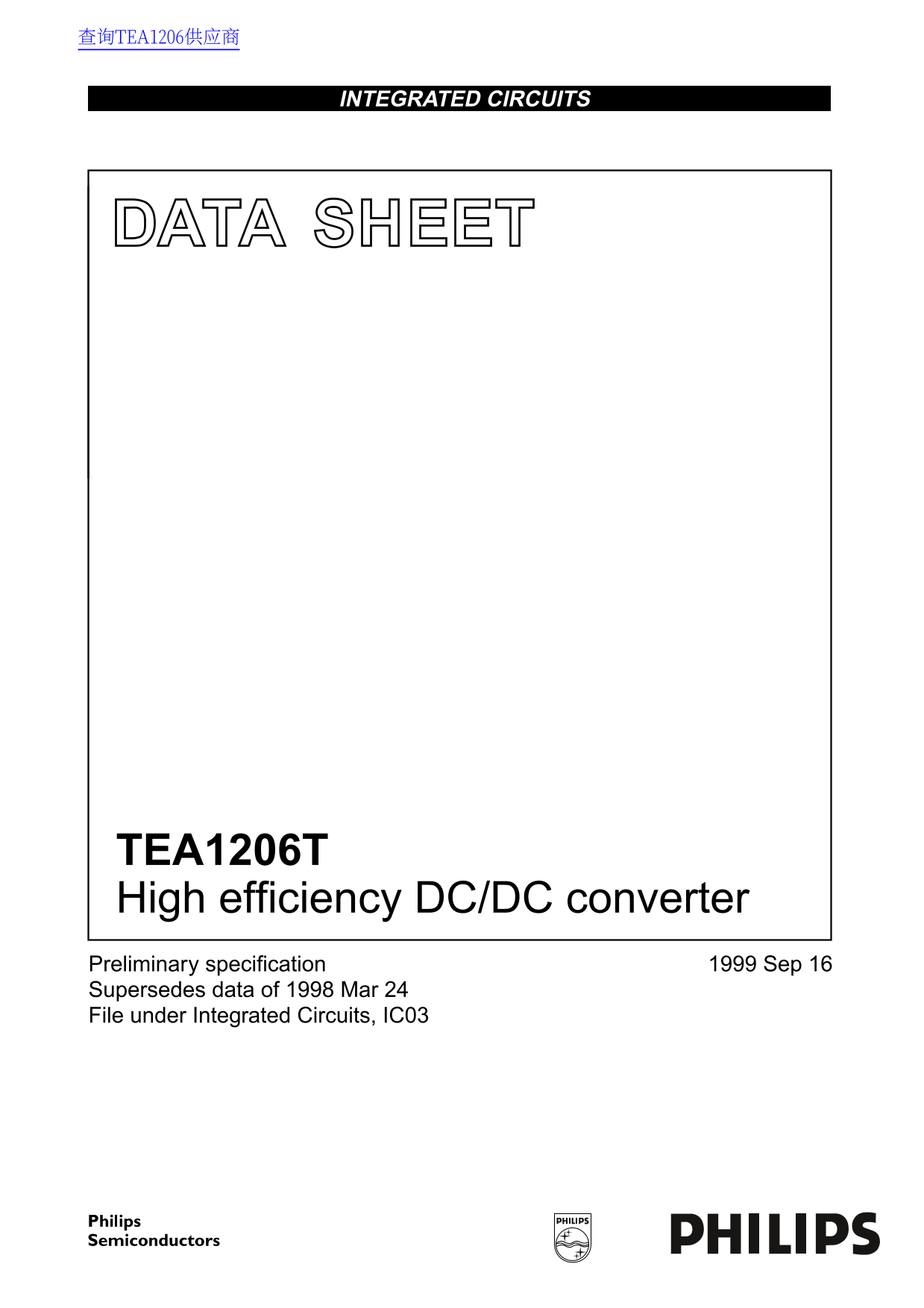

Page 1
查询TEA1206供应商 INTEGRATED CIRCUITS DATA SHEET TEA1206T High efficiency DC/DC converter Preliminary specification Sep Supersedes data of 1998 Mar File under Integrated Circuits, IC03
Page 2
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T FEATURES APPLICATIONS Fully integrated DC/DC converter circuit Cellular and cordless phones, PDAs and others U...
Page 3
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Voltage levels VO(up) output voltage rang...
Page 4
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to be ro ta te ...
Page 5
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T PINNING SYMBOL PIN DESCRIPTION U/D conversion mode selection input handbook, halfpage U/D SHDWN ILIM current l...
Page 6
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T Start-up Current limiters Start-up from low input voltage in boost mode is realised If the current in one of t...
Page 7
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T handbook, full pagewidth start corrective actionload increase high window limit low window limit time MGK925 F...
Page 8
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS M...
Page 9
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T CHARACTERISTICS Tj −40 to +80 °C; all voltages with respect to ground; positive currents flow into the IC; unl...
Page 10
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Temperature Tamb operating ambient temperature −40 +25 +80 °C ...
Page 11
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T APPLICATION INFORMATION handbook, full pagewidth UPOUT/DNIN VO VI TEA1206TLX GNDU/D SYNC SHDWN ILIM MGM670 Fig...
Page 12
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T External component selection OUTPUT VOLTAGE SETTING INDUCTOR The output voltage level is determined by the res...
Page 13
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T PACKAGE OUTLINE SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 (A )3 AA1 pin 1 index d...
Page 14
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T SOLDERING For packages with leads on two sides and a pitch (e): larger than or equal to 1.27 mm, the footprint...
Page 15
Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1206T Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE WAVE R...
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
