Philips TEA1205AT Data Sheet

Summary

The TEA1205AT is a highly efficient, fully integrated DC/DC converter circuit designed for reliable power management in portable electronics. Perfect for applications like cellular phones, PDAs, and cameras, this component supplies stable 3.3V or 5.5V from various battery types (NiCd or Li-ion). The accompanying datasheet provides comprehensive details on its operation, covering electrical specifications, block diagrams, synchronization methods, and functional pin configuration, enabling engineers to design robust power solutions with minimal external components.

📄 Preview ‹ PAGE OF 16 ›

‹

›

Page 1 Text Content

查询TEA1205供应商

INTEGRATED CIRCUITS

DATA SHEET

TEA1205AT High efficiency DC/DC converter

Preliminary specification Mar

File under Integrated Circuits, IC03

Page Summary Contents For Philips TEA1205AT Data Sheet

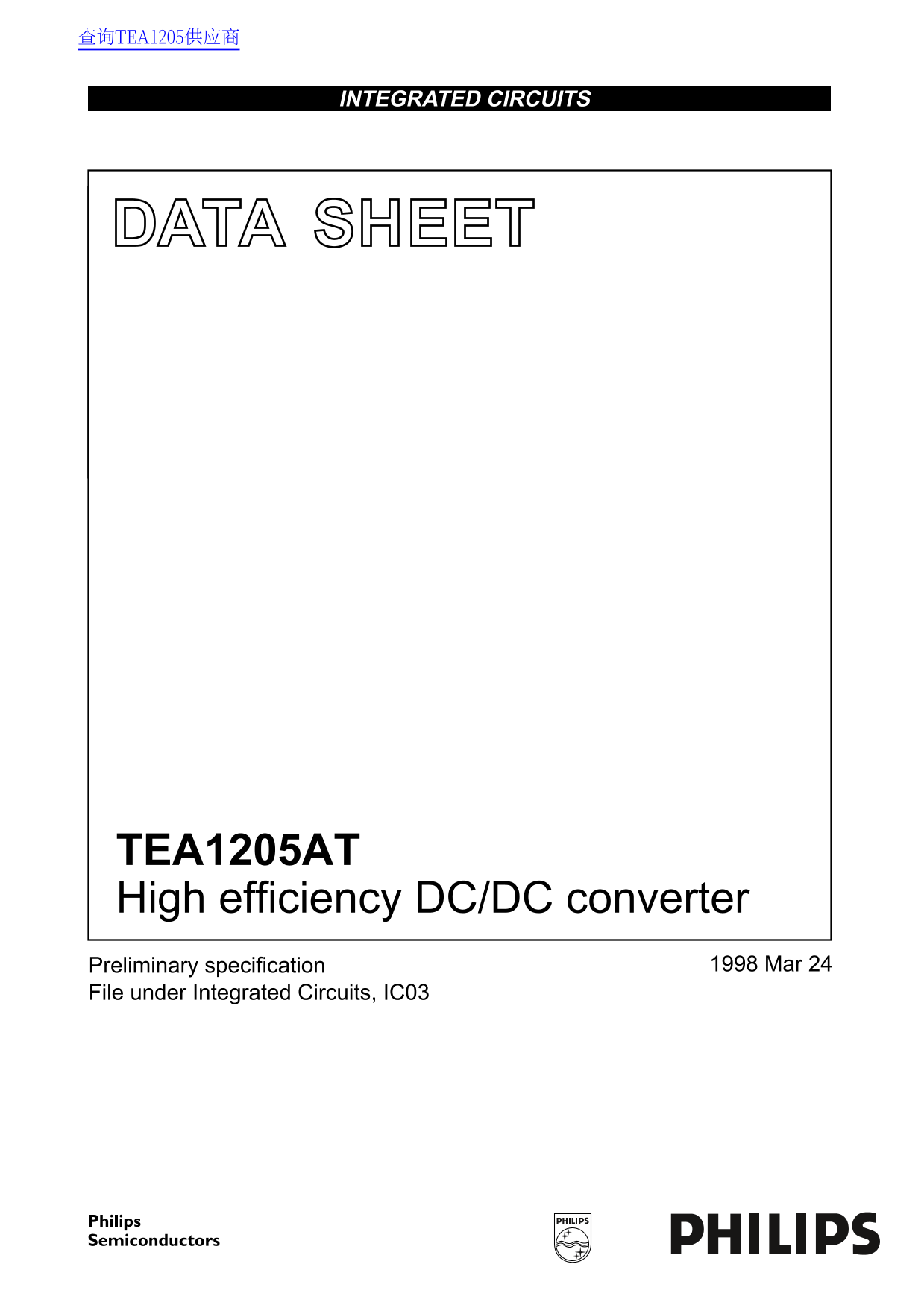

Page 1 查询TEA1205供应商 INTEGRATED CIRCUITS DATA SHEET TEA1205AT High efficiency DC/DC converter Preliminary specification Mar File under Integrated Circuits, IC03

Page 2 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT FEATURES GENERAL DESCRIPTION Fully integrated DC/DC converter circuit The TEA1205AT (see Fig.1) is a fully in...

Page 3 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Supplies VO output voltage VSEL LOW 5.23...

Page 4 hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to ro ta te co ...

Page 5 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT PINNING SYMBOL PIN DESCRIPTION handbook, halfpage VSEL output voltage selection input VSEL SHDWN SYNC synchro...

Page 6 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT Synchronisation function Behaviour at input voltage exceeding the specified range In continuous conduction mo...

Page 7 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT handbook, full pagewidth start corrective actionload increase high window limit low window limit time MGK925 ...

Page 8 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS ...

Page 9 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Timing fsw switching frequency k Hz tres response time from s...

Page 10 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT MGM699 handbook, full pagewidth efficiency IL (m A) Using a Coilcraft DO3308P 10 µH inductor and a Sprague 59...

Page 11 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT APPLICATION INFORMATION handbook, full pagewidth OUT VO VI SENSE TEA1205ATLX GND ILIM VSEL SYNC SHDWN C2 MGM7...

Page 12 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT PACKAGE OUTLINE SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 (A )3 AA1 pin 1 index ...

Page 13 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT SOLDERING Wave soldering Introduction Wave soldering techniques can be used for all SO packages if the follow...

Page 14 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications ...

Page 15 Philips Semiconductors Preliminary specification High efficiency DC/DC converter TEA1205AT NOTES

Page 16 Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
