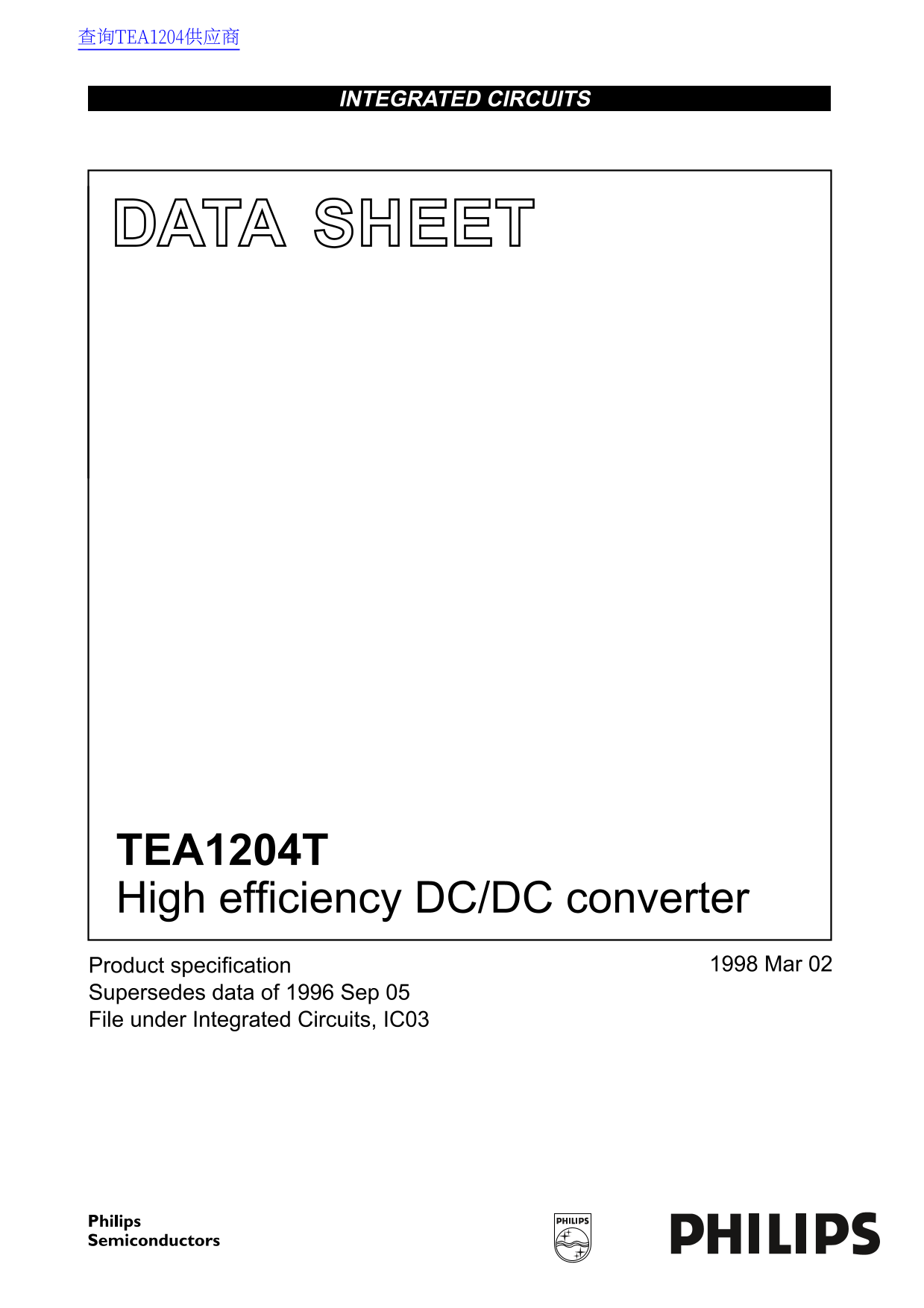

Page 1
查询TEA1204供应商 INTEGRATED CIRCUITS DATA SHEET TEA1204T High efficiency DC/DC converter Product specification Mar Supersedes data of 1996 Sep File under Integrated Circuits, IC03
Page 2
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T FEATURES GENERAL DESCRIPTION Fully integrated DC/DC converter circuit The TEA1204T is a fully integrated DC/DC con...
Page 3
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VO(up) output voltage in up mode U/D LOW, VSE...
Page 4
hi te xt is er in hi te to fo rc la nd sc ap pa ge to ro ta te co rr ec tly he br ow si ng th ro ug th pd f i th cr ob at ea de r. hi te xt is er in _w hi te to fo rc la nd sc ap pa ge to ro ta te co ...
Page 5
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T PINNING SYMBOL PIN DESCRIPTION U/D conversion mode selection input handbook, halfpage U/D SHDWN VSEL output voltag...
Page 6
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T Burst mode trigger input Behaviour at input voltage exceeding the specified range For burst-mode applications, in ...
Page 7
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T andbook, full pagewidth start corrective actionload increase high window limit low window limit time MGK925 Fig.4 ...
Page 8
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. ...
Page 9
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Current levels Iq quiescent current at pin up mode µA ISHDWN shut-...
Page 10
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T APPLICATION INFORMATION handbook, full pagewidth UPOUT/DNIN VO VI SENSE TEA1204TLX GND U/D VSEL BURST SHDWN MGK928...
Page 11
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T A typical component choice for an upconverter from More application information can be found in the Ni Cd cells or...
Page 12
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T MGM601 handbook, full pagewidth efficiency IL (m A) Using a Coilcraft DO3316P 10 µH inductor and a Sprague 595D 33...
Page 13
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T MGM603 handbook, full pagewidth efficiency IL (m A) Using a Coilcraft DO3316P 10 µH inductor and a Sprague 595D 33...
Page 14
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T PACKAGE OUTLINE SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 (A )3 AA1 pin 1 index detai...
Page 15
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T SOLDERING Wave soldering Introduction Wave soldering techniques can be used for all SO packages if the following c...
Page 16
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications for p...
Page 17
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T NOTES
Page 18
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T NOTES
Page 19
Philips Semiconductors Product specification High efficiency DC/DC converter TEA1204T NOTES
Page 20
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
