PHILIPS TDA7000 Data Sheet
Summary
Philips TDA7000 is a monolithic integrated FM radio circuit for mono portable radios, designed for minimum peripheral component count to reduce size and cost. It incorporates an FLL system with 70kHz intermediate frequency using active RC filters for selectivity, requiring only oscillator alignment for frequency selection. The IC integrates RF input stage, mixer, local oscillator, IF amplifier/limiter, phase demodulator, and mute circuit that eliminates spurious reception and noisy signals. Operating from 2.7 to 10V supply with 8mA typical current at 4.5V, it covers 1.5 to 110MHz RF range and is designed for portable radio manufacturers seeking compact FM receiver solutions.

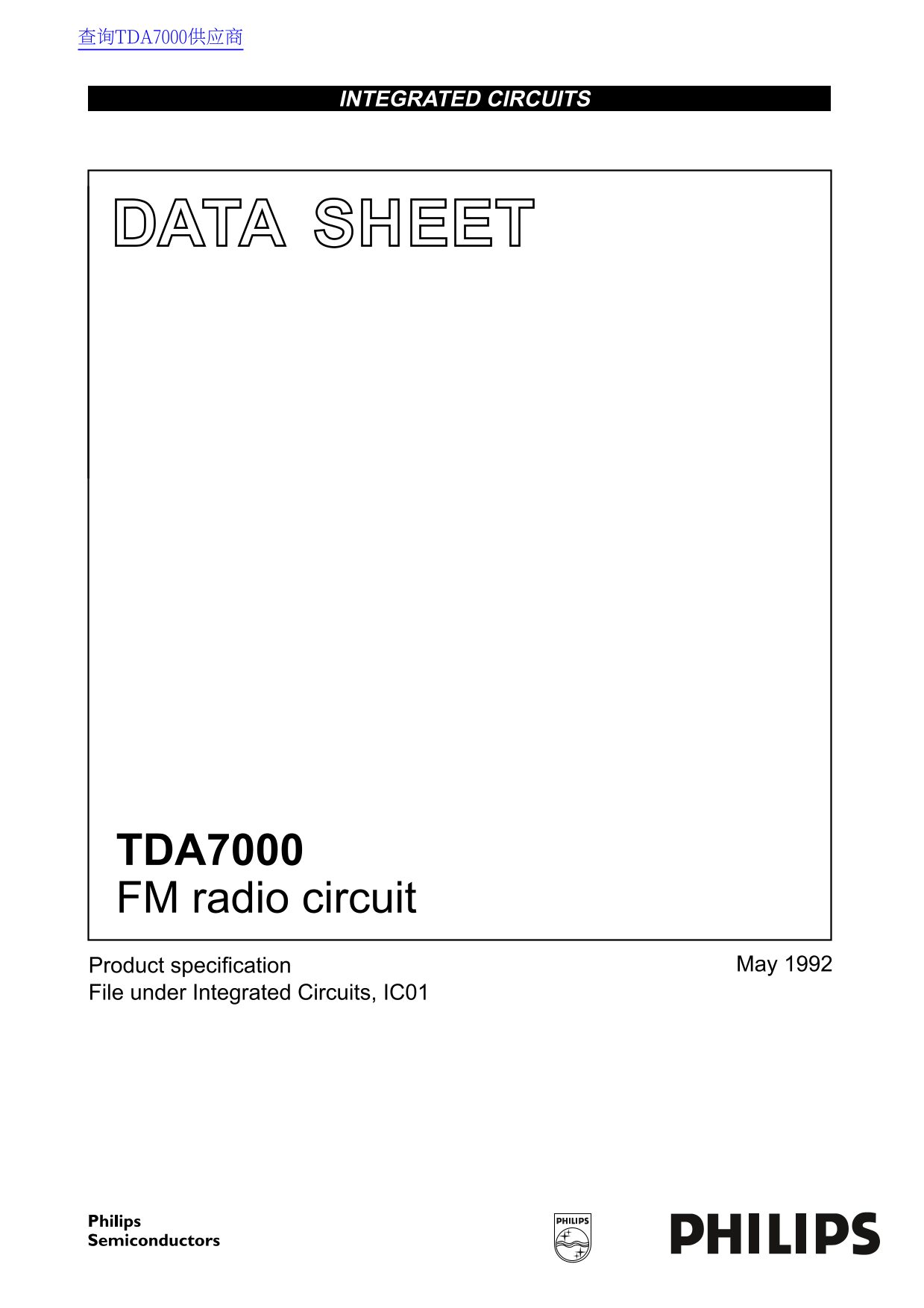

Page 1 Text Content
查询TDA7000供应商
INTEGRATED CIRCUITS
DATA SHEET
TDA7000 FM radio circuit
Product specification May
File under Integrated Circuits, IC01
Page Summary Contents For PHILIPS TDA7000 Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 10 |
| File Size | 229.88 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the supply voltage range for the TDA7000?
The supply voltage range is 2.7 to 10 V, with a maximum absolute rating of 12 V.
What temperature range can the TDA7000 operate in?
The operating ambient temperature range is 0 to +60 °C.
How can the TDA7000's muting system be disabled?
Feed a current of about 20 μA into pin 1 to disable the muting system.
What package does the TDA7000 use?
It uses an 18-lead DIL plastic package, SOT102HE.
