Philips TDA1545A Data Sheet
Summary
This Philips TDA1545A stereo continuous calibration digital-to-analog converter datasheet provides complete technical specifications for high-fidelity audio reproduction applications in portable consumer electronic equipment requiring low power consumption and compact physical dimensions. Covers innovative continuous calibration architecture where largest bit-currents are repeatedly generated from single current reference source using internal charge storage principle with accuracy insensitive t
Page 1 Text Content
INTEGRATED CIRCUITS
DATA SHEET
TDA1545A Stereo continuous calibration DAC
Preliminary specification Sep
Supersedes data of March 1993 File under Integrated Circuits, IC01
Page Summary Contents For Philips TDA1545A Data Sheet
Page 1

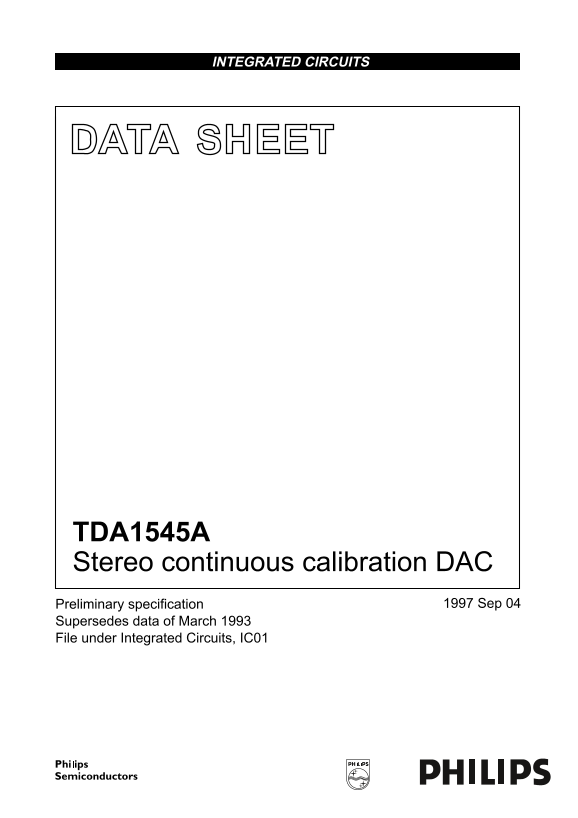

INTEGRATED CIRCUITS DATA SHEET TDA1545A Stereo continuous calibration DAC Preliminary specification Sep Supersedes data of March 1993 File under Integrated Circuits, IC01
Page 2
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A FEATURES GENERAL DESCRIPTION Space saving packages The TDA1545A is the first device of a new generation of t...
Page 3
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A QUICK REFERENCE DATA SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT VDD supply voltage 5.5 IDD supply curre...
Page 4
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A 3. kΩ IO le ft LE IG n F LE IT IT IG IT IT ut rig ht -B IT 5- IT 5- IT -B IT IV LI LI IV IV ID IV ID LI LI L...
Page 5
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A PINNING SYMBOL DESCRIPTIONSOT96-1; SOT402-1 SOT97-1 BCK bit clock input WS word select input DATA data input...
Page 6
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A FUNCTIONAL DESCRIPTION The TDA1545A accepts input serial data formats of 16-bit word length. Left and right ...
Page 7
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A out out handbook, full pagewidth IREF IREF IREF Vgs Vgs Cgs Cgs MCD289 - 1 Fig.4 Calibration principle; (a) ...
Page 8
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A CHARACTERISTICS VDD V; Tamb °C; measured in the circuit of Fig.1; unless otherwise specified. SYMBOL PARAMET...
Page 9
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT THD total harmonic distortion including noise at 0 d B; −88 ...
Page 10
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A TEST AND APPLICATION INFORMATION handbook, full pagewidth HD;WS SU;WS HB LB HD;DAT SU;DAT LSB MSBDATA MLB001...
Page 11
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A LS LS LE IG handbook, full pagewidth ig .6 or at f i np ut ig na ls
Page 12
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A APPLICATION INFORMATION MGA054 full pagewidth THD (d B) (1) frequency (Hz) (1) Measured including all distor...
Page 13
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A MGA055 MGA056 handbook, halfpage handbook, halfpage THD THD (d B) (d B) signal level (d B) V (V)DD (1) Measu...
Page 14
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A se at in pl an PACKAGE OUTLINES DIP8: plastic dual in-line package; 8 leads (300 mil) SOT97-1 pin 1 index 10...
Page 15
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 (A )3 AA1 pin 1 index detail X 2.5 5 ...
Page 16
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A TSSOP14: plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 pin 1 index detail ...
Page 17
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A SOLDERING Typical reflow temperatures range from 215 to °C. Preheating is necessary to dry the paste and eva...
Page 18
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications...
Page 19
Philips Semiconductors Preliminary specification Stereo continuous calibration DAC TDA1545A NOTES
Page 20
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
Page 21
WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
