PHILIPS TDA1522 Data Sheet
Summary
This datasheet describes the Philips TDA1522 stereo cassette head preamplifier and equalizer designed for car radio/cassette player applications. The device contains two independent amplifiers with 90dB typical open-loop gain and internal DC feedback via 140kΩ resistors, eliminating the need for input coupling capacitors since the head input references DC ground. AC equalization characteristics are set externally via an RC network, with stability maintained down to a gain of 30dB. Key specificat
Page 1 Text Content
INTEGRATED CIRCUITS
DATA SHEET
TDA1522 Stereo cassette head preamplifier and equalizer
Product specification Feb
File under Integrated Circuits, IC01
Page Summary Contents For PHILIPS TDA1522 Data Sheet
Page 1

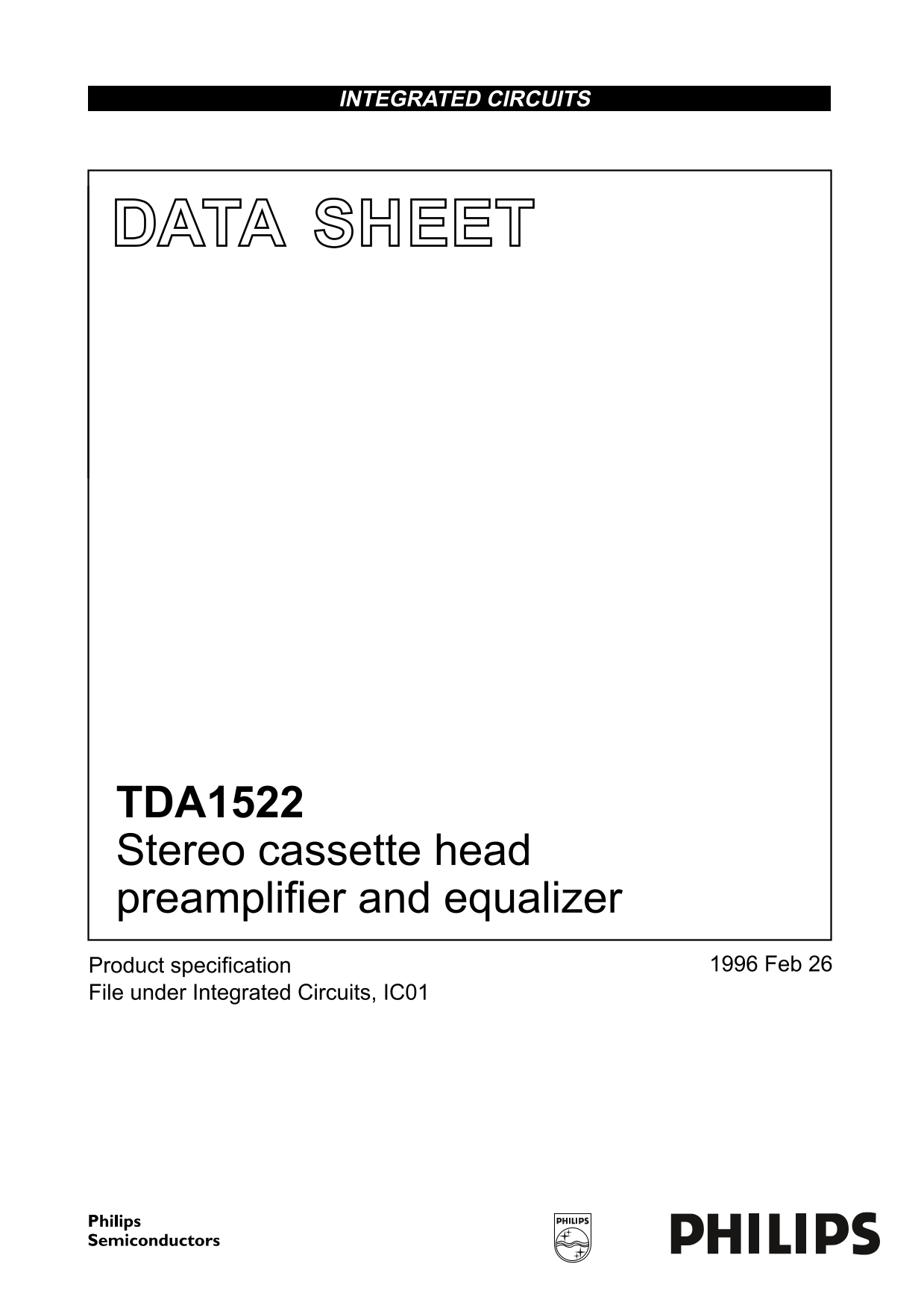

INTEGRATED CIRCUITS DATA SHEET TDA1522 Stereo cassette head preamplifier and equalizer Product specification Feb File under Integrated Circuits, IC01
Page 2
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer FEATURES GENERAL DESCRIPTION Two independent amplifiers with open-loop gain of The TDA1522 is a pla...
Page 3
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer BLOCK DIAGRAM handbook, full pagewidth µF TDA1522 feedback 1 Cc1 output 1 AMP 1 Vo1 Vi1 4.7 kΩ L = ...
Page 4
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer PINNING SYMBOL PIN DESCRIPTION Vo1 output voltage handbook, halfpage MUTE mute input FB1 feedback V...
Page 5
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134); note 1. SYMBOL PAR...
Page 6
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT Mute on/off (pin 2); see Fig.4 Vmute(on) mute on vo...
Page 7
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer MLD339 handbook, halfpage Vo (d B) Fig.4 Muting depth as a function of control voltage at pin 2. ML...
Page 8
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer MLD341 handbook, full pagewidth Ini (p A/ Hz) f (Hz) Fig.6 Noise input current as a function of fre...
Page 9
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer PRINTED-CIRCUIT BOARD handbook, full pagewidth RM1 R201 D201 R202 CC2RL2 Vo2 C201 CVP1 IC1 MUTE RS1...
Page 10
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer APPLICATION INFORMATION handbook, full pagewidth µF TDA1522 feedback 1 Cc1 output 1 AMP 1 Vo1 Vi1 4...
Page 11
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer handbook, full pagewidth 1N4148 µF TDA1522 feedback 1 Cc1 output 1 AMP 1 Vo1 Vi1 4.7 kΩ L = 80 m HS...
Page 12
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer se at in pl an PACKAGE OUTLINE SIL9MP: lastic single in-line medium power package; 9 leads handbook...
Page 13
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer SOLDERING The device may be mounted up to the seating plane, but the temperature of the plastic bod...
Page 14
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer NOTES
Page 15
Philips Semiconductors Product specification Stereo cassette head TDA1522 preamplifier and equalizer NOTES
Page 16
