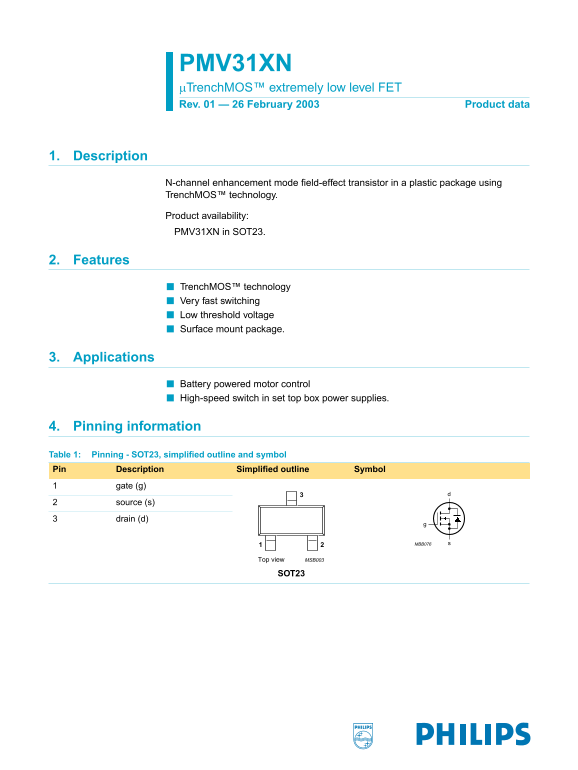

PMV31XN µTrench MOS™ extremely low level FET Rev. 01 — 26 February 2003 Product data
1. Description
N-channel enhancement mode field-effect transistor in a plastic package using Trench MOS™ technology.
Product availability: PMV31XN in SOT23.
2. Features
Trench MOS™ technology Very fast switching Low threshold voltage Surface mount package.
3. Applications
Battery powered motor control High-speed switch in set top box power supplies.
4. Pinning information Table 1: Pinning - SOT23, simplified outline and symbol Pin Description Simplified outline Symbol
gate (g) source (s) drain (d)
MBB076
MSB003Top view
SOT23
