Philips PDTC115EE Data Sheet
Summary
The PDTC115EE is an NPN resistor-equipped transistor from Philips with built-in 100kOhm bias resistors in a SOT416 (SC-75) package. This integrated configuration reduces external components and PCB area, handling 50V collector-emitter voltage and 20mA output current. It is ideal for space reduction in interface and driver circuits, enabling inverter configurations without external resistors. The transistor targets designers of compact interface circuits, driver applications, and space-constrained PCB layouts in consumer electronics and industrial control systems.
Page 1 Text Content

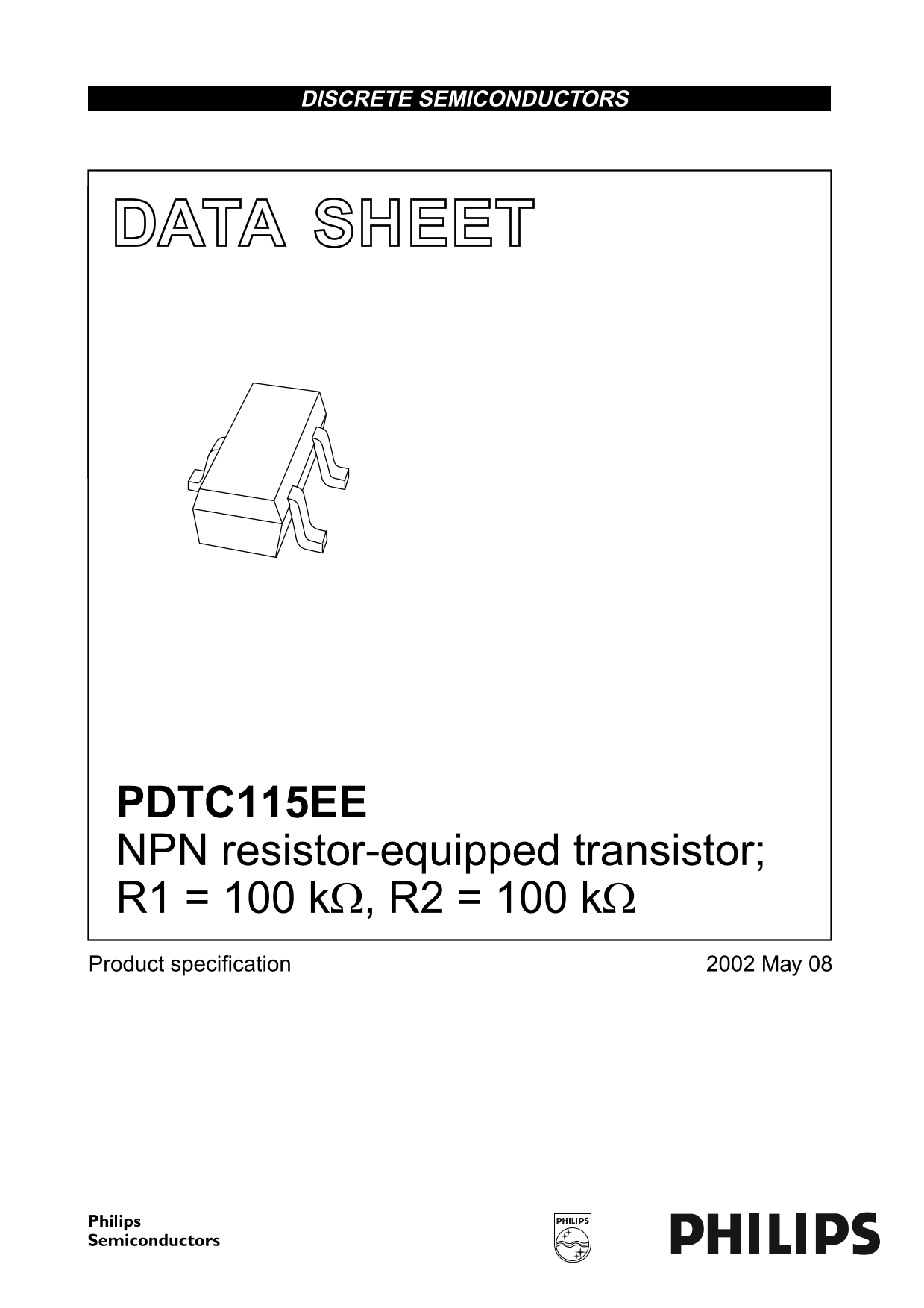

DISCRETE SEMICONDUCTORS
DATA SHEET
PDTC115EE NPN resistor-equipped transistor; R1 kΩ, R2 kΩ Product specification May
Page Summary Contents For Philips PDTC115EE Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 8 |
| File Size | 166.07 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What package does the PDTC115EE use?
It uses the SOT416 (SC-75) plastic surface mounted package.
What is the maximum collector-emitter voltage?
The maximum collector-emitter voltage is 50 V.
What are the typical values of bias resistors R1 and R2?
Both R1 and R2 have a typical value of 100 kΩ.
What is the maximum DC output current?
The maximum DC output current is 20 mA.
