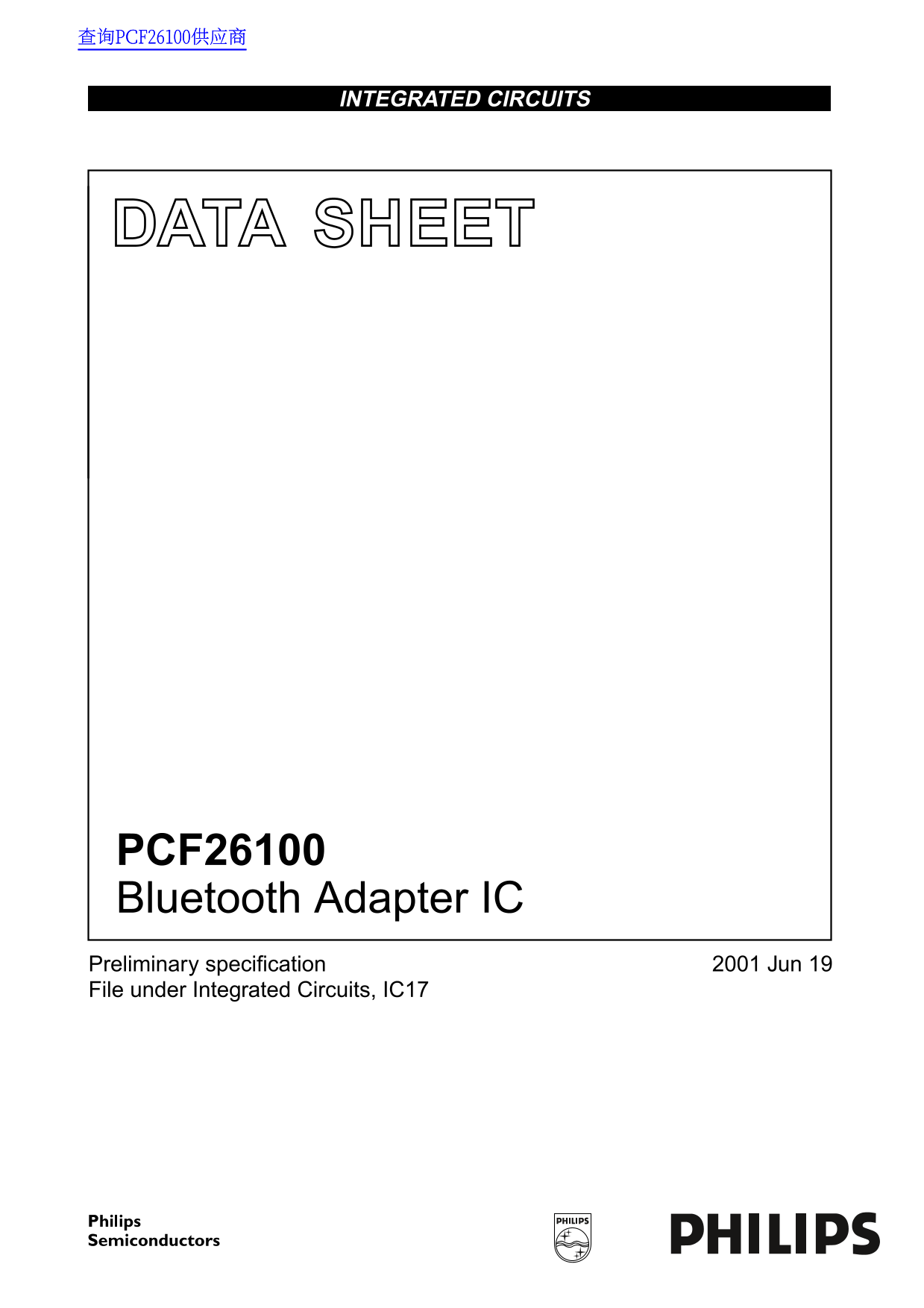

Philips PCF26100 Bluetooth Adapter IC Data Manual
Summary
Philips Semiconductors preliminary specification for the PCF26100 Bluetooth adapter IC, a mixed-signal device interfacing UAA3558 radio with PCF26002/PCF26003 baseband controllers. Provides JTAG radio ID, clock generation, power-on reset, serial interface conversion, timing control, and DAC conversion. Covers pinning, registers, limiting values, DC/AC characteristics, applications, and soldering guidelines. For hardware engineers developing Bluetooth systems with Philips components.
Manual Details
| Brand | Philips |
|---|---|
| Pages | 28 |
| File Size | 129.61 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the PCF26100 package type?
It comes in a TFBGA48 plastic thin fine-pitch ball grid array package with 48 balls.
Which Philips radio does the PCF26100 adapt to?
It adapts to the Philips UAA3558 radio.
What is the function of the PCF26100?
It is a Bluetooth Adapter IC that adapts the baseband interface between the UAA3558 radio and PCF26002/26003 baseband controllers.
What interface does it provide for radio ID?
It provides radio ID through the serial JTAG interface.
Is this a final datasheet?
No, this is a preliminary specification document.
