PHILIPS PCF1171C 4-digit LCD Car Clock User Guide
Summary
The PCF1171C is a CMOS single-chip car clock IC designed to drive 3 1/2 or 4-digit LCD displays. It features a 4.19 MHz oscillator, internal voltage regulation, and operates within a -40 to +85°C temperature range. This 40-lead SMD component is ideal for automotive electronics requiring precise timekeeping and easy time-setting functionality.
Page 1 Text Content

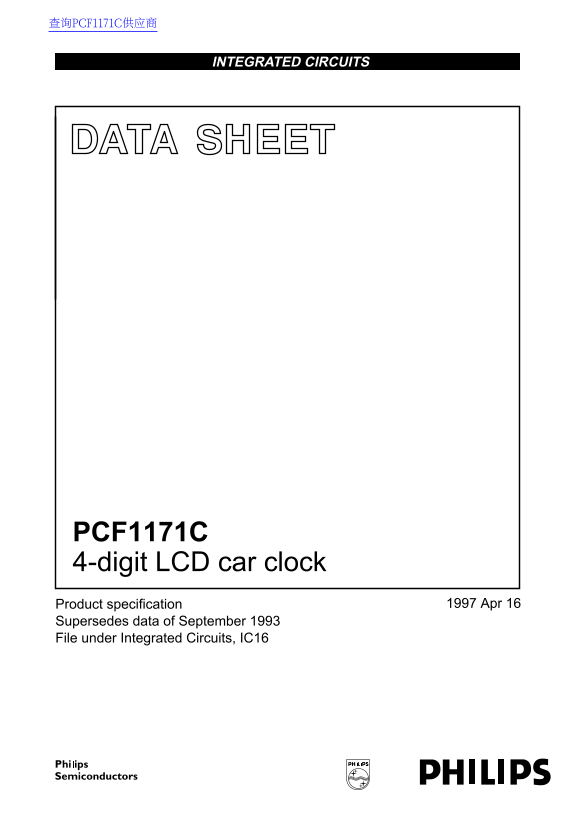

查询PCF1171C供应商
INTEGRATED CIRCUITS
DATA SHEET
PCF1171C 4-digit LCD car clock
Product specification Apr
Supersedes data of September File under Integrated Circuits, IC16
Page Summary Contents For PHILIPS PCF1171C 4-digit LCD Car Clock User Guide
Page 1
查询PCF1171C供应商 INTEGRATED CIRCUITS DATA SHEET PCF1171C 4-digit LCD car clock Product specification Apr Supersedes data of September File under Integrated Circuits, IC16
Page 2
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C FEATURES GENERAL DESCRIPTION Driving standard 31⁄2 or a 4-digit LCD The PCF1171C is a single chip, 4.19 MHz CMOS car clock c...
Page 3
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C PINNING SYMBOL PIN DESCRIPTION SYMBOL PIN DESCRIPTION OSC OUT oscillator output TR test reset; connect to (VDD) OSC IN oscil...
Page 4
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C MSA984 Fig.2 Segment designation of LCD. MSA985 Fig.3 Display mode (24-hour mode shown). OPERATIONAL INPUTS Set minutes/rese...
Page 5
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C Time correction ±2 minutes, switch S3 12/24-hour mode, switch S5 This switch operates in two ranges: For 12-hour display mod...
Page 6
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C CHARACTERISTICS VDD V; VSS V; Tamb −40 to +85 °C; crystal: f 4.194304 MHz; Rs Ω; CL p F; unless otherwise specified. SYMBOL ...
Page 7
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C CHIP DIMENSIONS AND BONDING PAD LOCATIONS 2.66 mm PCF1171CU F2 ADEG1 MSA983 2.36 mm Chip area: 6.28 mm2. Bonding pad dimensi...
Page 8
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C Table 1 Bonding pad locations (dimensions in µm) All x/y coordinates are referenced to the pad G2, see Fig.4. PAD PAD OSC OU...
Page 9
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C APPLICATION INFORMATION R = 4.7 kΩ to 8.2 kΩ battery C = 5 p F to 25 p FT 4.19 MHz OSC OSC TR TS (V )DDVDD IN OUT S6 VDD S6 ...
Page 10
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C PACKAGE OUTLINE VSO40: plastic very small outline package; 40 leads; face down SOT158-2 pin 1 index detail X 10 mm scale DIM...
Page 11
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C SOLDERING Wave soldering Introduction Wave soldering techniques can be used for all VSO packages if the following conditions...
Page 12
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications for product dev...
Page 13
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C NOTES
Page 14
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C NOTES
Page 15
Philips Semiconductors Product specification 4-digit LCD car clock PCF1171C NOTES
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
