Philips PBSS8110Z Data Sheet
Summary
The PBSS8110Z is a high-performance NPN low V transistor housed in an SOT223 package, engineered for demanding power electronics applications. Designed with high efficiency and low saturation voltage ($V_{CESat}$), it reliably handles 100V and 1A of collector current. This component is ideal for critical industrial, automotive, and telecom infrastructure uses, including driving LEDs/lamps, converting DC-to-DC power, or managing inductive loads like relays and motors. The accompanying manual provides comprehensive technical details, covering electrical characteristics, thermal limits, suggested mounting methods, and detailed usage guidelines for system integration.
Page 1 Text Content
查询PBSS8110Z供应商

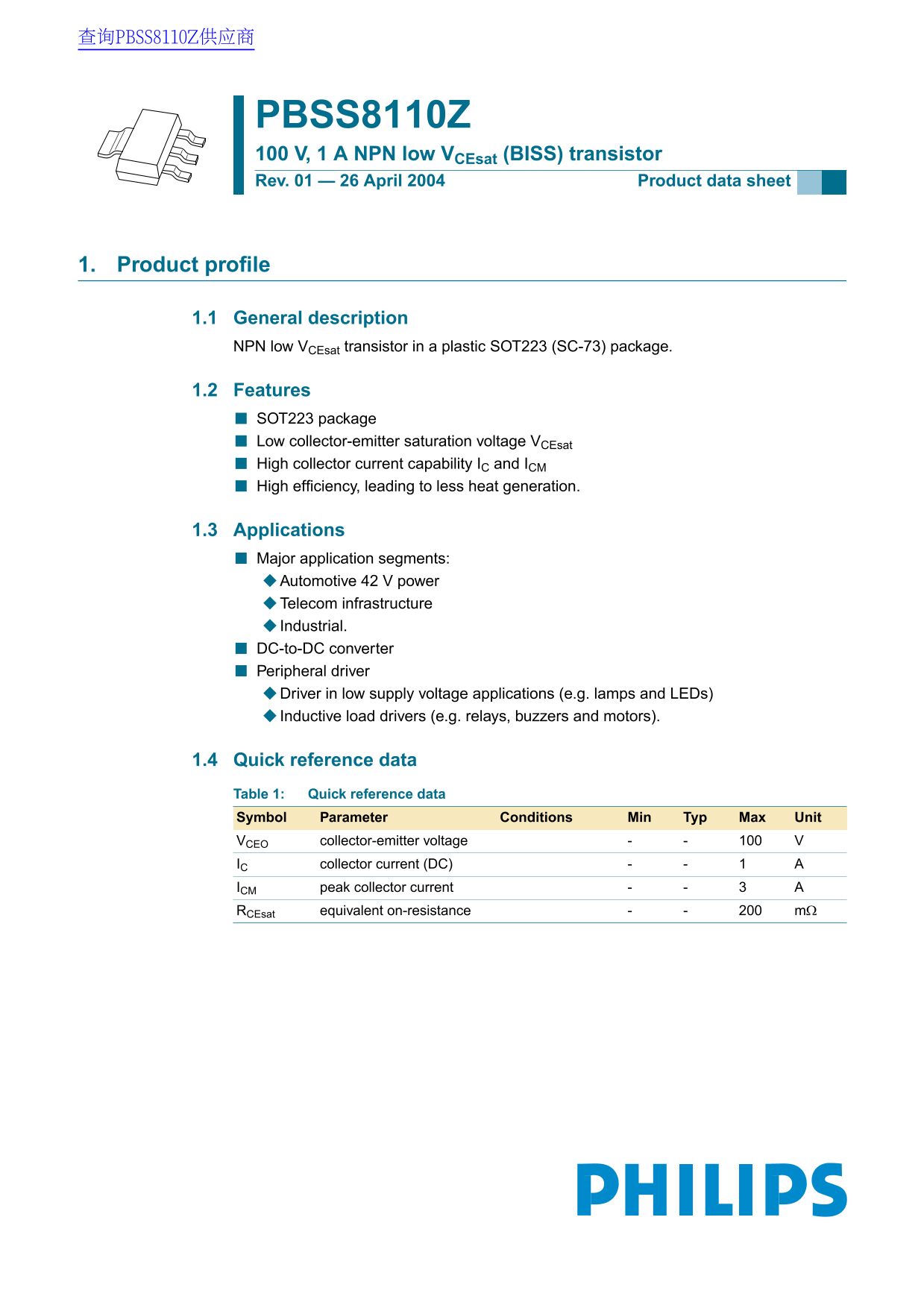

PBSS8110Z 100 V, 1 A NPN low VCEsat (BISS) transistor Rev. 01 — 26 April 2004 Product data sheet
1. Product profile
1.1 General description NPN low VCEsat transistor in a plastic SOT223 (SC-73) package.
1.2 Features SOT223 package Low collector-emitter saturation voltage VCEsat High collector current capability IC and ICM High efficiency, leading to less heat generation.
1.3 Applications Major application segments:
Automotive 42 V power Telecom infrastructure Industrial. DC-to-DC converter Peripheral driver Driver in low supply voltage applications (e.g. lamps and LEDs) Inductive load drivers (e.g. relays, buzzers and motors).
1.4 Quick reference data Table 1: Quick reference data Symbol Parameter Conditions Min Typ Max Unit
VCEO collector-emitter voltage IC collector current (DC) ICM peak collector current RCEsat equivalent on-resistance mΩ
