Philips PBSS2515F Data Sheet
Summary
Discover the PBSS2515F, a low voltage NPN transistor designed for reliable switching and driving applications in portable electronics. This manual provides comprehensive specifications, including detailed electrical characteristics, thermal performance curves, and absolute maximum ratings essential for component selection. Ideal for embedding in battery-powered devices, LCD backlighting systems, or general signal conditioning circuits requiring high efficiency and low saturation voltage.
Page 1 Text Content
查询PBSS2515F供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
PBSS2515F V low VCEsat NPN transistor Product specification Sep Supersedes data of 2001 Jan
Page Summary Contents For Philips PBSS2515F Data Sheet
Page 1

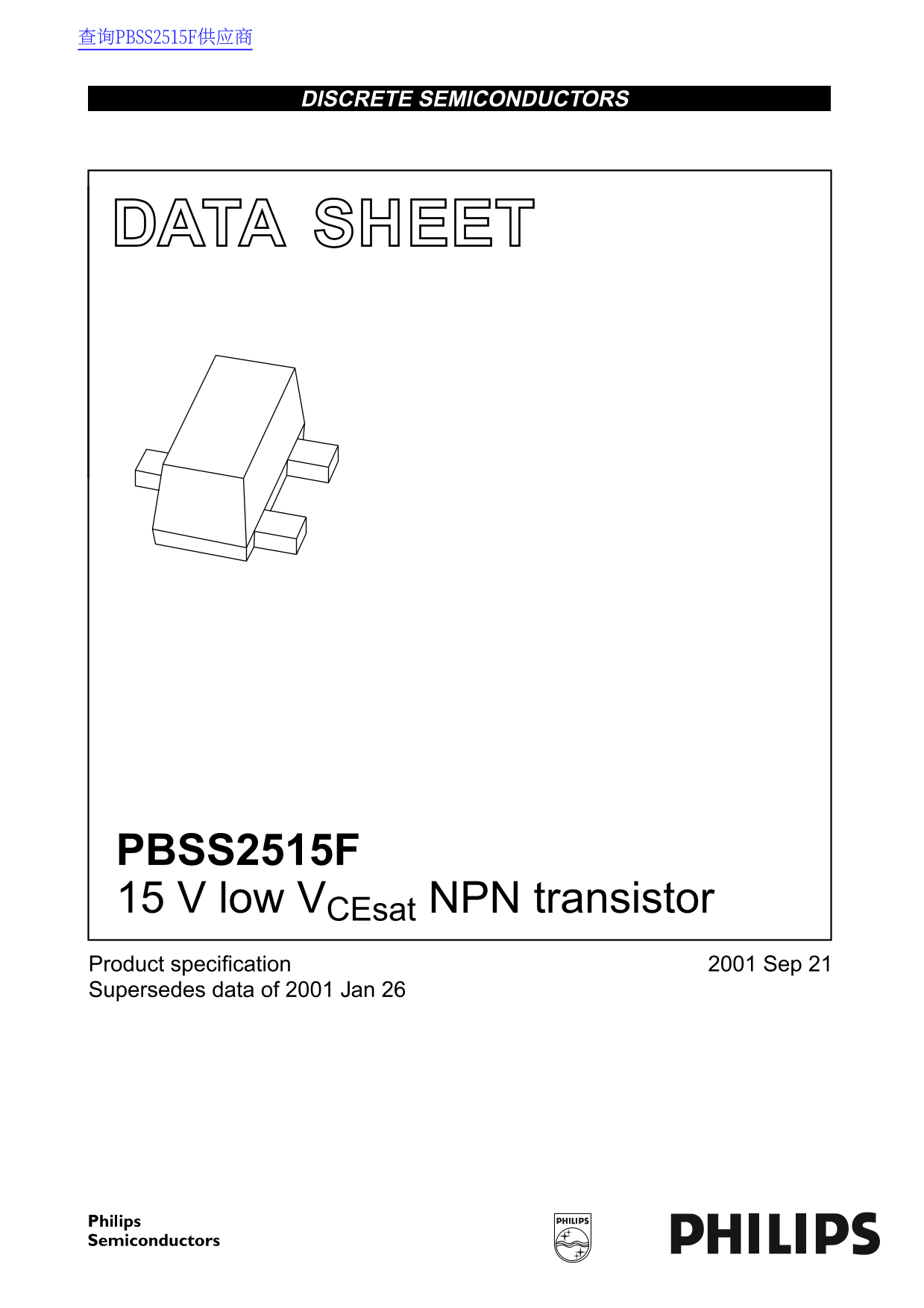

查询PBSS2515F供应商 DISCRETE SEMICONDUCTORS DATA SHEET PBSS2515F V low VCEsat NPN transistor Product specification Sep Supersedes data of 2001 Jan
Page 2
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F FEATURES QUICK REFERENCE DATA Low collector-emitter saturation voltage SYMBOL PARAMETER MAX. UNIT High current capabi...
Page 3
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-a thermal resistance from junction to in free ai...
Page 4
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F MLD671 MLD673 handbook, halfpage handbook, halfpage IC (m A) IC (m A) VCE V. VCE V. (1) Tamb °C. (1) Tamb °C. (2) Tam...
Page 5
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F MLD672 MLD676 handbook, halfpage handbook, halfpage IC RCEsat (m A) (Ω) IC (m A) VCE (V) IC/IB 20. Tamb °C. (1) Tamb ...
Page 6
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT490 e1 bp detail X scale DIMENSIONS (mm are the original ...
Page 7
Philips Semiconductors Product specification V low VCEsat NPN transistor PBSS2515F DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet conta...
Page 8
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
