Page 1

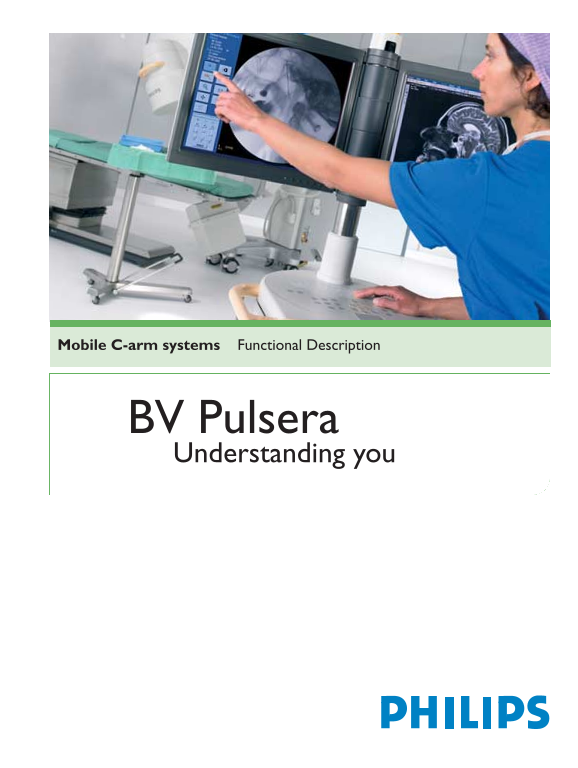

4522_962_08181.qxd 1/3/06 1:26 PM Page 1 Mobile C-arm systems Functional Description BV Pulsera Understanding you
Page 2
4522_962_08181.qxd 1/3/06 1:26 PM Page 2 Contents BV Pulsera Options Laser alignment tool System overview Laser aiming device Medical DVD Recorder Advanced functionality Video paper/transparency print...
Page 3
4522_962_08181.qxd 1/3/06 1:26 PM Page 3 BV Pulsera Understanding you The BV Pulsera is a powerful mobile fluoroscopy system for the most challenging surgical-and interventional procedures. The powerf...
Page 4
4522_962_08181.qxd 1/3/06 1:27 PM Page 4 System overview BV Pulsera Mobile View Station Touchscreen Live monitor color LCD Reference monitor color LCD Height adjustment Cable storage Video paper/ (at ...
Page 5
4522_962_08181.qxd 1/3/06 1:27 PM Page 5 C-arm stand 1Kx1K CCD/TV camera Ergonomic C-arc handles Compact Image Intensifier Ergonomic handgrips ensure easy parallel movement Fully counter-balanced C-ar...
Page 6
4522_962_08181.qxd 1/3/06 1:27 PM Page 6 Advanced functionality Everything you want to do Remote control Laser alignment tool The BV Pulsera consists of a mobile C-arm stand Ergonomically designed C-a...
Page 7
4522_962_08181.qxd 1/3/06 1:27 PM Page 7 X-ray collimation Image processing Full lead shutters can be rotated and moved Smart Vision, a highly advanced, full digital 1Kx1K together or independently to...
Page 8
4522_962_08181.qxd 1/3/06 1:28 PM Page 8 Advanced functionality Vascular imaging functionality Subtracted fluoroscopy mode displays images in subtracted mode. Trace-subtract shows maximum opacificatio...
Page 9
4522_962_08181.qxd 1/3/06 1:29 PM Page 9 Mobile View Station with unique Height of the LCD monitors can be intelligent viewing concept increased/decreased with 25 cm (10”). This stepless The ultra com...
Page 10
4522_962_08181.qxd 1/3/06 1:29 PM Page 10 Advanced functionality Safer treatment environment With every new system Philips Medical Systems look at how we can incorporate better shielding and improve o...
Page 11
4522_962_08181.qxd 1/3/06 1:29 PM Page 11 Handheld Remote Control The remote control unit is a handheld infrared keypad used to control the main image handling functions. For sterile operation, it can...
Page 12
4522_962_08181.qxd 1/3/06 1:29 PM Page 12 Options Handy extras Laser alignment tool The Laser Alignment Tool is an optional positioning device integrated into the X-ray tank unit. It projects an image...
Page 13
4522_962_08181.qxd 1/3/06 1:29 PM Page 13 Accessories Making work easier C-arm spring bow for sterilizable covers The spring bow holds the sterilizable covers of the C-arm in position while allowing f...
Page 14
4522_962_08181.qxd 1/3/06 1:29 PM Page 14 Technical Specifications X-ray tube / tank unit • Tube type Rotating anode • Nominal focal spot values (IEC 336) 0.3 IEC and 0.6 IEC • Nominal X-ray tube volt...
Page 15
4522_962_08181.qxd 1/3/06 1:29 PM Page 15 • Pulse widths 24, 40 ms • Pulse rate 12.5 pps Half Dose Fluoroscopy • k V range 40-120 k V • m A peak range 0.4 - 12 m A • Pulse widths 10, 16.6, 24 and 40 m...
Page 16
4522_962_08181.qxd 1/3/06 1:29 PM Page 16 Technical Specifications • Entrance screen = Input screen Cesium Iodine • Detection Quantum Efficiency (DQE) 9": typical [%] according to IEC 1262-5 12''...
Page 17
4522_962_08181.qxd 1/3/06 1:29 PM Page 17 • Angulation (orbital movement) option +90°, -45° • Source to image distance (SID) 99.5 cm (39.2") • Free space within C-arc 78 cm (30.7") • C-arc d...
Page 18
4522_962_08181.qxd 1/3/06 1:29 PM Page 18 Dimensions BV Pulsera 9" system Dimensions in cm.
Page 19
4522_962_08181.qxd 1/3/06 1:29 PM Page 19 12" system Dimensions in cm. ption) 45° (o 25°
Page 20
4522_962_08181.qxd 1/3/06 1:29 PM Page 20 Philips Medical Systems is part Asia Tel: +852 2821 5888 of Royal Philips Electronics Europe, Middle East, Africa Interested? Tel: +31 40 27 87246 Would you l...
