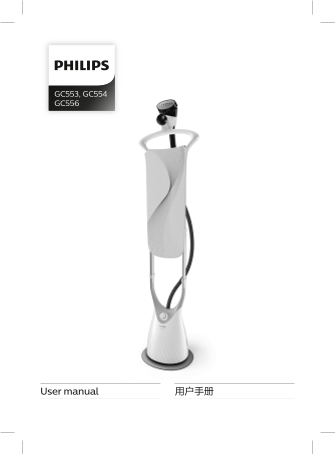

Page 1
GC553, GC554 GC556 User manual 用户手册
Page 3
GC553, GC554 GC556
Page 4
a Flex Head h De-calc knob b Flex Head holder i Water tank c Hang&lock j Board cover d Pole lock clip k Board e Pole l Steam supply hose f Steam knob m Glove g Base n Brush a Flex Head 灵动熨烫 h 除垢旋钮...
Page 7
EN The board provides backing support to enhance the steaming performance. Note: Do not wash the board cover as it may damage the foam material. SC 熨衣板可以提供背面支撑以增强熨烫效果。
Page 8
EN Your appliance has been designed to be used with tap water. In case you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use water without minerals su...
Page 10
EN Flex Head Flex Head allows you to have contact with your garment from top to bottom to avoid steam escape and for less kneeling and bending. Note: Do not shake the steamer head vigorously. SC Flex ...
Page 11
EN Multi steam settings are provided to save water and energy. You can increase the steam setting for more steam power at any point of time. This appliance is safe to use on all fabrics at any setting...
Page 12
GC556 EN Auto shut-off The ring flashes after the water tank is empty for 10 minutes. SC 自动关闭功能 水箱为空 10 分钟后,该环闪烁。 >10 min. >10
Page 13
EN Refill the water tank and insert it back. You can resume steaming after turning the steam knob. The ring should stop flashing. SC 为水箱加水并将其插回。您可以在转动蒸汽旋钮后 恢复蒸煮。环应停止闪烁。 EN If the water tank is not ref...
Page 14
EN For garments which require a formal look and crisp result, such as shirts, jackets and pants, it is recommended to use the board. SC 对于衬衫、夹克和裤子等要求具有正式造型和挺括 效果的衣物,建议使用熨衣板。
Page 15
EN To make crisp pleats, start steaming from the bottom half of the pants and move onto the top half to prevent accidental wrinkles on parts which have already been steamed. SC 要打造笔挺的裤缝,可先从裤子的下半部开始蒸汽 ...
Page 16
EN Put the glove on the hand you are using to hold a garment. The glove protects your hand against the steam from the steamer head. SC 将防烫手套戴在拿着衣物的手上。防烫手套可保护 您的手不被蒸汽喷头所喷出的蒸汽烫伤。
Page 17
EN The brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment. Caution: Do not attach or detach the brush while the steam...
Page 18
EN To maintain optimal steam performance and prolong the lifetime of the appliance, it is important to remove scale and impurities inside the appliance regularly. Therefore, it is recommended to perfo...
Page 19
EN Note: Clean the appliance and wipe any deposits off the steamer head with a damp cloth and non-abrasive liquid cleaning agent. Always empty the water tank after usage, to prevent calc build-up and ...
Page 20
Problem Possible cause Solution The appliance The steamer has Let the appliance heat produces not heated up up for approximately no steam or sufficiently. 45 seconds. irregular steam. Steam has Lift t...
Page 21
Problem Possible cause Solution Low water level Refill the water tank and in the tank or the insert it properly. tank is not inserted properly. Too much scale Perform de-calc process. has built up in ...
Page 23
部件名称 铅及其 汞及其 镉及其 六价铬 多溴 多溴 化合物 化合物 化合物 化合物 联苯 二苯醚 (Pb) (Hg) (Cd) Cr (PBB) (PBDE) 主机 Main Body 电源线 Power cord 蒸汽喷头 Steamer Head 蒸汽输送管 Steam supply hose 本表格依据 SJ/T 11364 的规定编制。 ○: 表示该有害物质在该部件所有均质材料中的含量均...
Page 24
产品: 飞利浦蒸汽挂烫机 型号: GC553, GC554, GC556 额定电压: 220 V~ 额定频率: 50 Hz 额定输入功率: 2000 W 生产日期: 请见产品本体 产地: 中国浙江慈溪 本产品根据国标 GB4706.1-2005, GB4706.84-2007 制造 © 2021 Philips Domestic Appliances Holding B.V. All rights...
