BLF245 VHF power MOS transistor
Product specification September 1992
Page Summary Contents For PHILIPS BLF245 Data Sheet
Page 1

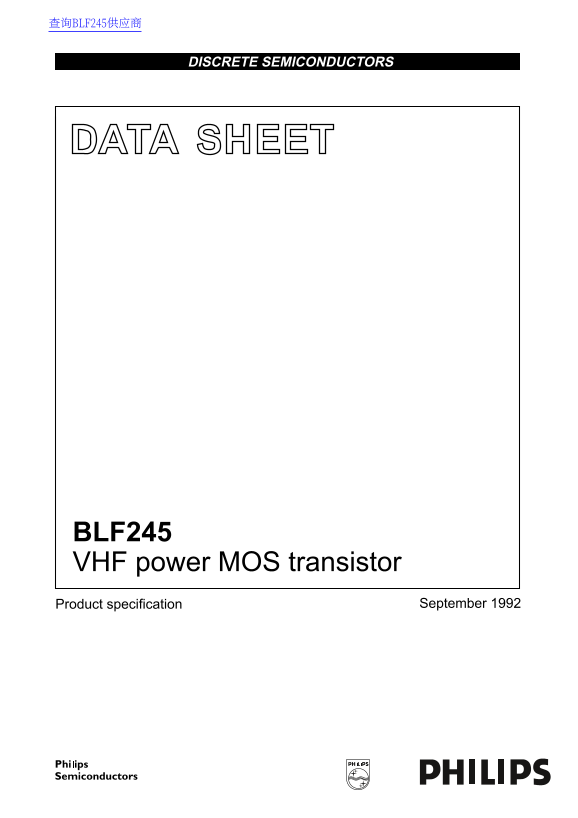

查询BLF245供应商 DISCRETE SEMICONDUCTORS DATA SHEET BLF245 VHF power MOS transistor Product specification September 1992
Page 2
Philips Semiconductors Product specification VHF power MOS transistor BLF245 FEATURES PIN CONFIGURATION High power gain lfpage Low noise figure Easy power control Good thermal stability Withstands ful...
Page 3
Philips Semiconductors Product specification VHF power MOS transistor BLF245 LIMITING VALUES In accordance with the Absolute Maximum System (IEC 134). SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT VDS dr...
Page 4
Philips Semiconductors Product specification VHF power MOS transistor BLF245 CHARACTERISTICS Tj = 25 °C unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT V(BR)DSS drain-sourc...
Page 5
Philips Semiconductors Product specification VHF power MOS transistor BLF245 MGP170 MGP171 0.8 handbook, halfpage handbook, halfpage RDS(on) 0.2 Cos Tj (°C) VDS (V) VGS V; ID 1.5 A. VGS 0; f MHz. Fig....
Page 6
Philips Semiconductors Product specification VHF power MOS transistor BLF245 APPLICATION INFORMATION FOR CLASS-B OPERATION Th = 25 °C; Rth mb-h = 0.3 K/W; R1 kΩ. RF performance in CW operation in a co...
Page 7
Philips Semiconductors Product specification VHF power MOS transistor BLF245 MGP173 MEA737 handbook, halfpage handbook, halfpage Gp ηD PL PL (W) PIN (W) Class-B operation; VDS 12.5 V; IDQ m A; Class-B...
Page 8
Philips Semiconductors Product specification VHF power MOS transistor BLF245 List of components (class-B test circuit) COMPONENT DESCRIPTION VALUE DIMENSIONS CATALOGUE NO. C1 film dielectric trimmer 4...
Page 9
Philips Semiconductors Product specification VHF power MOS transistor BLF245 handbook, full pagewidth copper straps rivets copper strap copper straps MGP175 The circuit and components are situated on ...
Page 10
Philips Semiconductors Product specification VHF power MOS transistor BLF245 MGP177 MGP178 handbook, halfpage handbook, halfpage Zi ZL (Ω) (Ω) f (MHz) f (MHz) Class-B operation; VDS V; IDQ m A; Class-...
Page 11
Philips Semiconductors Product specification VHF power MOS transistor BLF245 PACKAGE OUTLINE Flanged ceramic package; 2 mounting holes; 4 leads SOT123A 10 mm scale DIMENSIONS (millimetre dimensions ar...
Page 12
Philips Semiconductors Product specification VHF power MOS transistor BLF245 DEFINITIONS Data Sheet Status Objective specification This data sheet contains target or goal specifications for product de...
