Philips BGA2011 Data Sheet
Summary
The BGA2011 is a high-performance 900 MHz Low Noise Amplifier (LNA) MMIC, engineered for demanding RF front end applications. This comprehensive datasheet provides detailed specifications, including operating thresholds, thermal characteristics, and practical application circuitry setups. It is specifically designed for electrical engineers building systems that require exceptional linearity, low noise figures, and high power gain in fields such as CDMA or detection equipment.

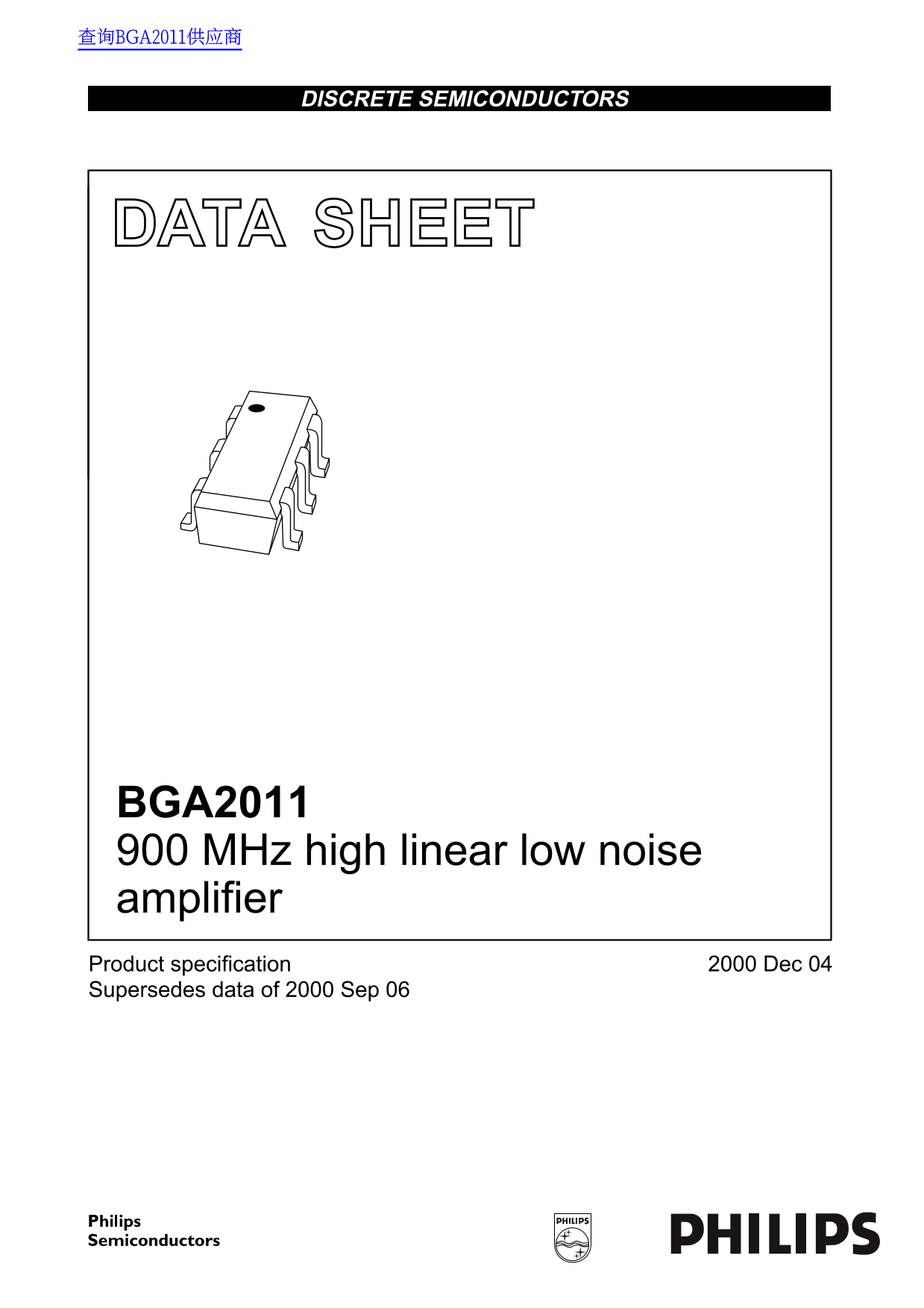

Page 1 Text Content
查询BGA2011供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
book, halfpage
MBD128
BGA2011 900 MHz high linear low noise amplifier Product specification Dec Supersedes data of 2000 Sep 06
Page Summary Contents For Philips BGA2011 Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 84.83 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended DC supply voltage range for operation?
The operating DC supply voltage must be between 3 V and 4.5 V (RF input AC coupled).
What environmental sensitivity should I consider when using this module?
The maximum total power dissipation under normal conditions is listed as 135 mW, suitable up to 100°C.
Is placement on a PCB critical for performance gain and linearity?
Yes; specific data sheet parameters require the use of defined stripline configurations (e.g., w = 0.7 mm).
What is the typical noise figure at 900 MHz?
The typical Noise Figure (NF) usually ranges from 1.6 dB to 1.7 dB, depending on the application setup.
