PHILIPS BFQ166 Data Sheet
Summary
The BFQ166 is a high-performance NPN video transistor housed in an SOT223 package, designed for critical signal handling applications like video amplifiers and cascode drivers. This comprehensive datasheet provides professional engineers with detailed electrical characteristics, including high gain bandwidth ($f_T$), low output capacitance, robust thermal stability data, and absolute maximum ratings. Ideal for complex electronics design involving colour graphics monitors and demanding power dissipation requirements.
Page 1 Text Content
查询BFQ166供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
BFQ166 NPN video transistor Product specification Oct Supersedes data of November File under Discrete Semiconductors, SC05
Page Summary Contents For PHILIPS BFQ166 Data Sheet
Page 1

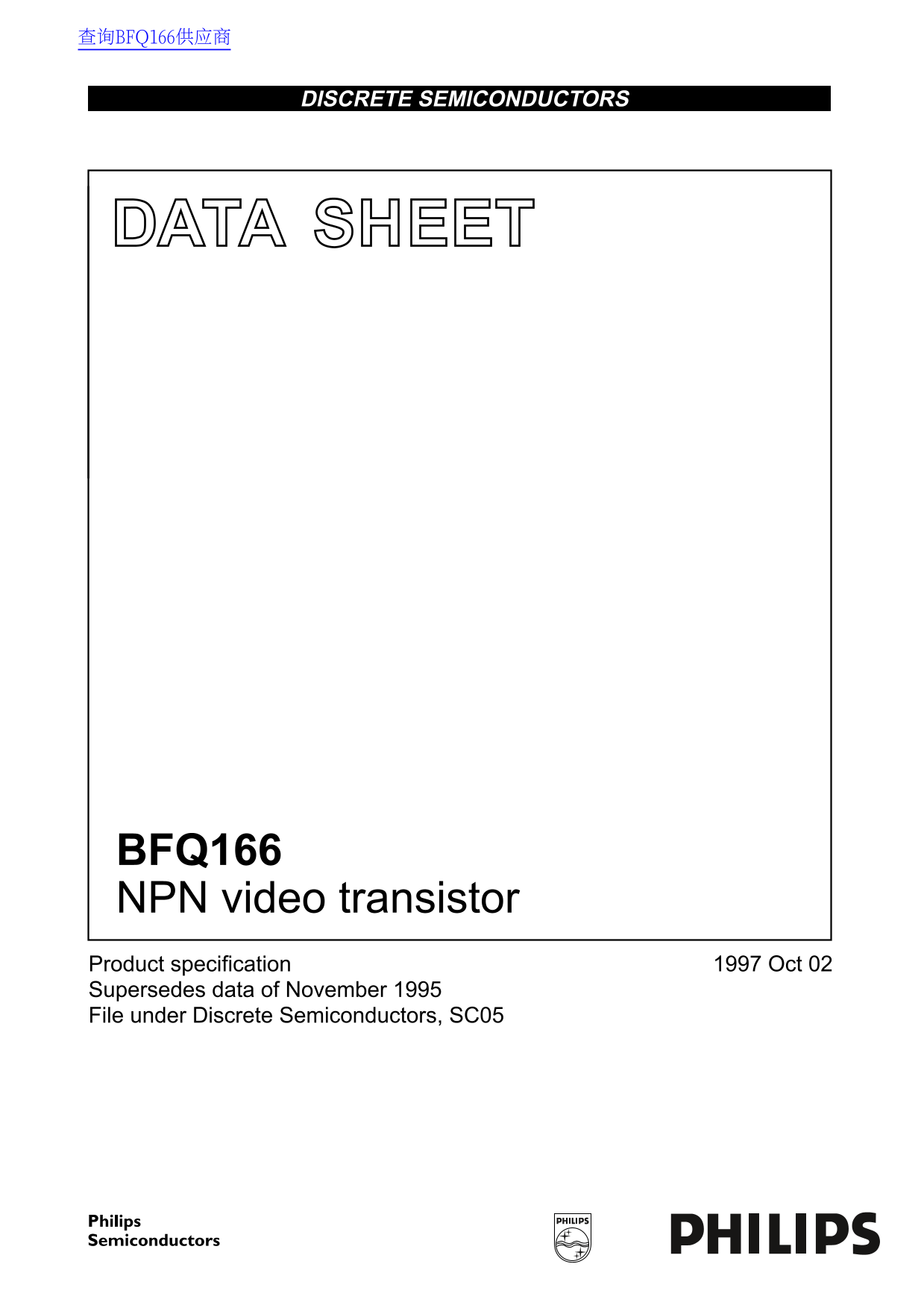

查询BFQ166供应商 DISCRETE SEMICONDUCTORS DATA SHEET BFQ166 NPN video transistor Product specification Oct Supersedes data of November File under Discrete Semiconductors, SC05
Page 2
Philips Semiconductors Product specification NPN video transistor BFQ166 FEATURES DESCRIPTION •Low output capacitance NPN video transistor in a SOT223 plastic package. High gain bandwidth Good thermal...
Page 3
Philips Semiconductors Product specification NPN video transistor BFQ166 THERMAL CHARACTERISTICS SYMBOL PARAMETER CONDITIONS VALUE UNIT Rth j-s thermal resistance from junction to soldering point Ts °...
Page 4
Philips Semiconductors Product specification NPN video transistor BFQ166 MRA601 MRA600 handbook, halfpage handbook, halfpage VCER (V) Ts (o C) RBE Ω. Fig.2 DC SOAR. Fig.3 Power derating curve. MBB436 ...
Page 5
Philips Semiconductors Product specification NPN video transistor BFQ166 MRA599 handbook, halfpage Ccb (p F) VCB (V) IC 0; f MHz. Fig.6 Collector-base capacitance as a function of collector-base volta...
Page 6
Philips Semiconductors Product specification NPN video transistor BFQ166 PACKAGE OUTLINE Plastic surface mounted package; collector pad for good heat transfer; 4 leads SOT223 e1 Mbp detail X scale DIM...
Page 7
Philips Semiconductors Product specification NPN video transistor BFQ166 DEFINITIONS Data sheet status Objective specification This data sheet contains target or goal specifications for product develo...
Page 8
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 34 Waterloo Road, NORTH RYDE, NSW...
