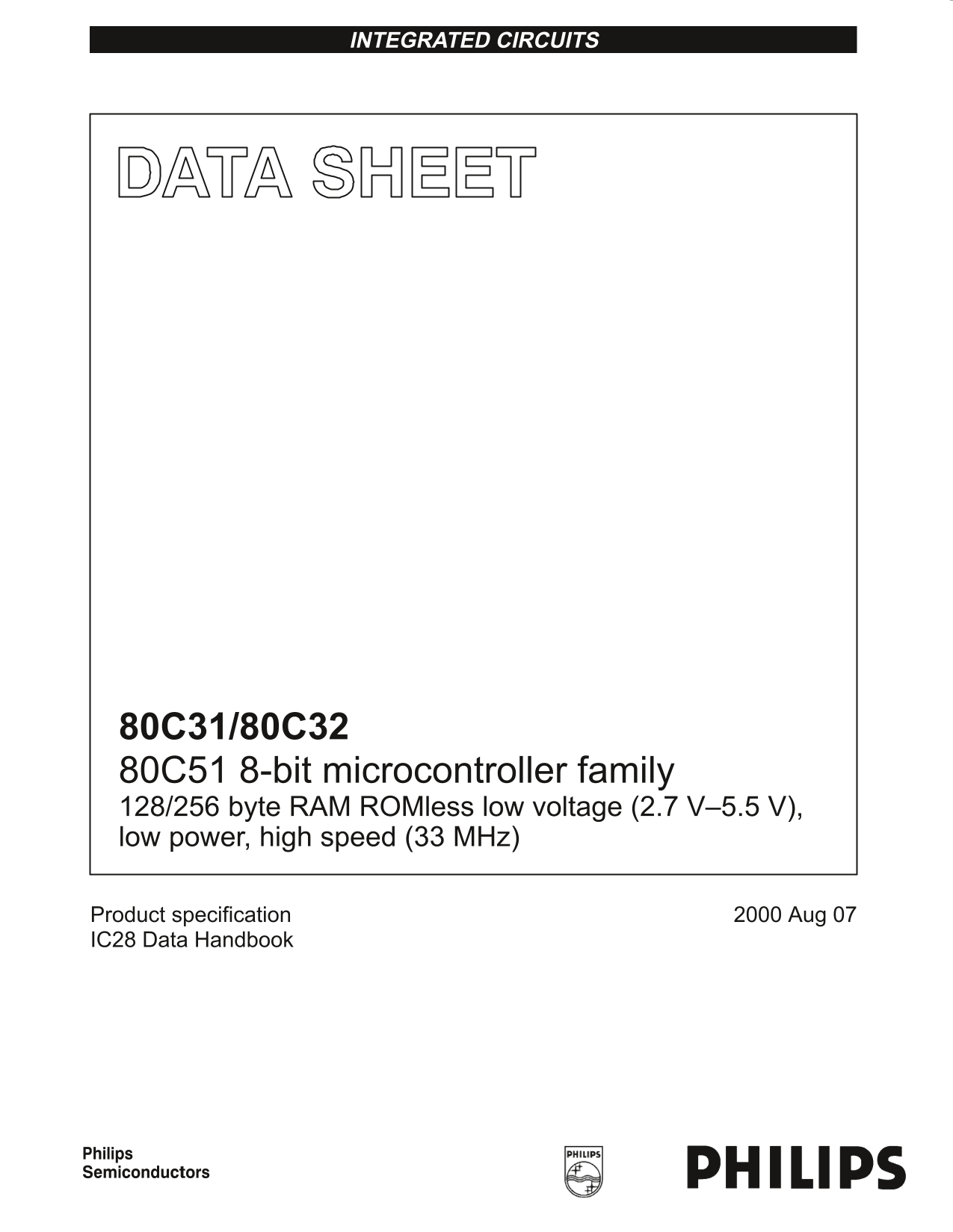

Philips 80C31 80C32 Data Sheet
Summary
This documentation details the robust 80C31/80C32 microcontroller family—a high-performance, static evolution of the classic 80C51 architecture. These ROMless microcontrollers are ideal for embedded systems requiring low voltage (2.7 V–5.5 V), low power consumption, and high speed up to 33 MHz. The manual provides comprehensive technical specifications, including details on available RAM sizes (128/256 bytes), advanced features like multiple timers, full-duplex UART, and deep sleep modes. It is essential for engineers designing reliable, energy-efficient controllers for diverse demanding applications.
Page 1 Text Content
INTEGRATED CIRCUITS
80C31/80C32 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7 V–5.5 V), low power, high speed (33 MHz)
Product specification 2000 Aug 07 IC28 Data Handbook
Page Summary Contents For Philips 80C31 80C32 Data Sheet
Page 1
INTEGRATED CIRCUITS 80C31/80C32 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7 V–5.5 V), low power, high speed (33 MHz) Product specification 2000 Aug 07 IC28 Data Handbo...
Page 2
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) DESCRIPTION FEATURES The Ph...
Page 3
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) 80C51/87C51 AND 80C31 ORDER...
Page 4
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) BLOCK DIAGRAM IN IO IS PORT...
Page 5
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) LOGIC SYMBOL PLASTIC LEADED...
Page 6
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) PIN DESCRIPTIONS PIN NUMBER...
Page 7
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Table 1. 8XC51/80C31 Specia...
Page 8
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) OSCILLATOR CHARACTERISTICS ...
Page 9
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Programmable Clock-Out TH2,...
Page 10
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) (MSB) (LSB) TF2 EXF2 RCLK T...
Page 11
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) T2MOD Address = 0C9H Reset ...
Page 12
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) (DOWN COUNTING RELOAD VALUE...
Page 13
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Baud Rate Generator Mode un...
Page 14
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Table 5. Timer 2 as a Timer...
Page 15
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) and 1 and exclude Slave 2 u...
Page 16
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) START DATA BYTE ONLY IN STO...
Page 17
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Interrupt Priority Structur...
Page 18
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) PT0PX1PT1PSPT2—— PX0IP (0B8...
Page 19
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Reduced EMI Mode Note that ...
Page 20
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) ABSOLUTE MAXIMUM RATINGS1, ...
Page 21
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) DC ELECTRICAL CHARACTERISTI...
Page 22
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) DC ELECTRICAL CHARACTERISTI...
Page 23
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) AC ELECTRICAL CHARACTERISTI...
Page 24
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) AC ELECTRICAL CHARACTERISTI...
Page 25
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) EXPLANATION OF THE AC SYMBO...
Page 26
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) t WHLH t LLWL t WLWH t LLAX...
Page 27
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) VCC–0.5 VLOAD+0.1V TIMING V...
Page 28
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) VCC VCC ICC ICC VCC VCC VCC...
Page 29
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) DIP40: plastic dual in-line...
Page 30
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) PLCC44: plastic leaded chip...
Page 31
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) QFP44: plastic quad flat pa...
Page 32
Philips Semiconductors Product specification 80C51 8-bit microcontroller family 128/256 byte RAM ROMless low voltage (2.7V–5.5V), 80C31/80C32 low power, high speed (33 MHz) Data sheet status Data shee...
