Philips 74LVC07A Data Sheet
Summary
The 74LVC07A is a high-performance, low-power Hex buffer with open-drain outputs. This Si-gate CMOS device supports 5V tolerance, offering a wide supply range (1.65 to 5.5V) and direct TTL compatibility, making it ideal for mixed-voltage logic translation and active-LOW wired-OR functions.
Page 1 Text Content
查询74LVC07A供应商
INTEGRATED CIRCUITS
DATA SHEET
74LVC07A Hex buffer with open-drain outputs Product specification Mar File under Integrated Circuits, IC24
Page Summary Contents For Philips 74LVC07A Data Sheet
Page 1

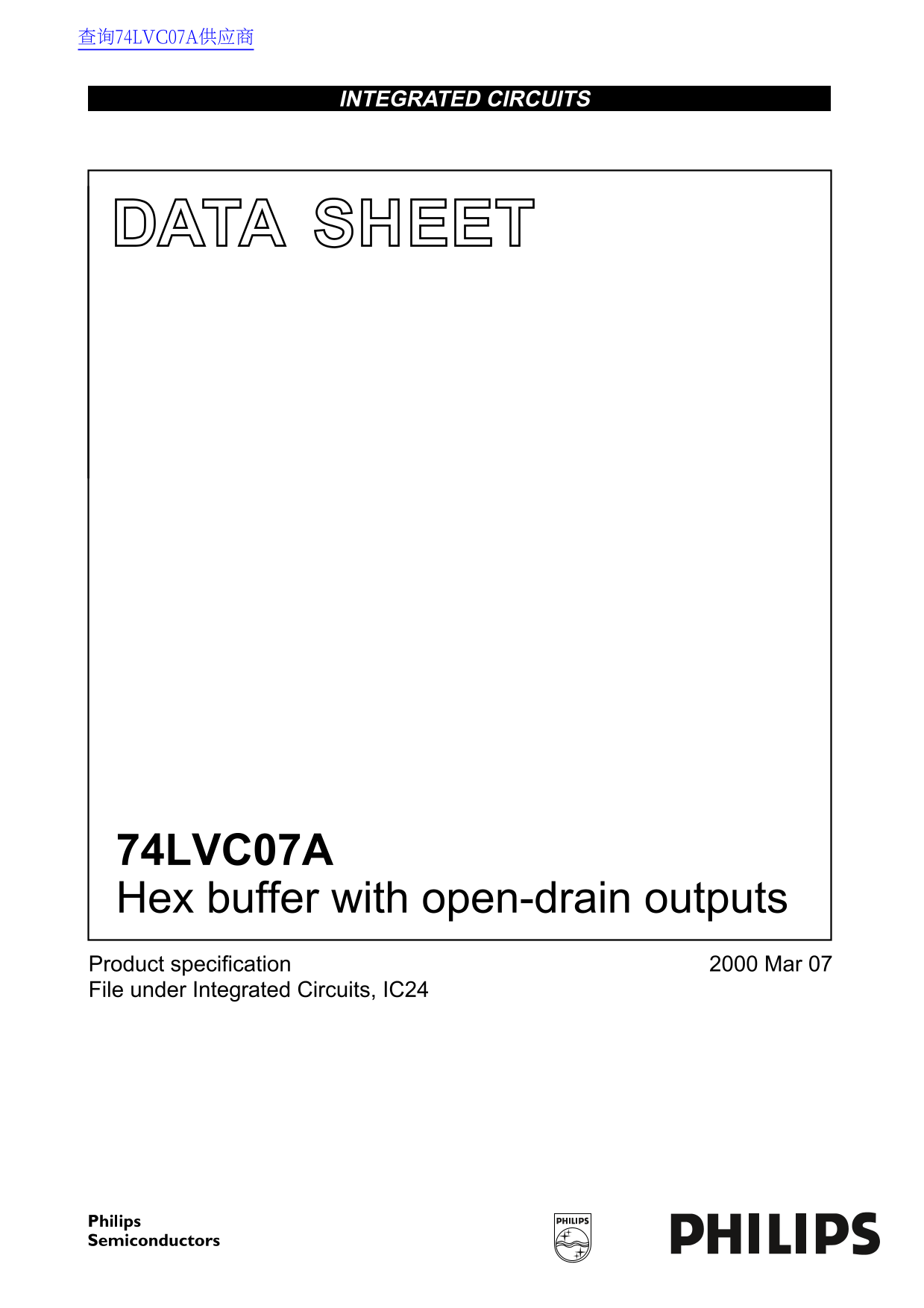

查询74LVC07A供应商 INTEGRATED CIRCUITS DATA SHEET 74LVC07A Hex buffer with open-drain outputs Product specification Mar File under Integrated Circuits, IC24
Page 2
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A FEATURES DESCRIPTION V tolerant inputs and outputs (open drain) for The 74LVC07A is a high-performance, low-pow...
Page 3
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A ORDERING INFORMATION PACKAGES TYPE NUMBER TEMPERATURE RANGE PINS PACKAGE MATERIAL CODE 74LVC07AD −40 to +85 °C ...
Page 4
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A handbook, halfpage 3A 3Y handbook, halfpage MNA533 MNA534 Fig.3 IEC logic symbol. Fig.4 Logic diagram (one gate...
Page 5
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A RECOMMENDED OPERATING CONDITIONS LIMITS SYMBOL PARAMETER CONDITIONS UNIT MIN. MAX. VCC DC supply voltage 1.65 5...
Page 6
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A DC CHARACTERISTICS Over recommended operating conditions; voltages are referenced to GND (ground V). TEST CONDI...
Page 7
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A AC CHARACTERISTICS GND V; VCC 2.7 V and tr tf ns; VCC 2.7 V and tr tf 2.5 ns. TEST CONDITIONS Tamb (°C) SYMBOL ...
Page 8
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A handbook, full pagewidth Vext VI VO PULSE GENERATOR CLRT RL MNA530 VCC Vext VI CL RL 1.65 to 1.95 VCC VCC p F k...
Page 9
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A PACKAGE OUTLINES SO14: plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 (A )3 AA1 pin 1 inde...
Page 10
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A TSSOP14: plastic thin shrink small outline package; 14 leads; body width 4.4 mm SOT402-1 pin 1 index detail X 2...
Page 11
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A SOLDERING If wave soldering is used the following conditions must be observed for optimal results: Introduction...
Page 12
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE WAVE RE...
Page 13
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A NOTES
Page 14
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A NOTES
Page 15
Philips Semiconductors Product specification Hex buffer with open-drain outputs 74LVC07A NOTES
Page 16
Philips Semiconductors – a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Tel. +31 82785, Fax. +31 Australia: 3 Figtree Drive, HOMEBUSH, NSW 21...
