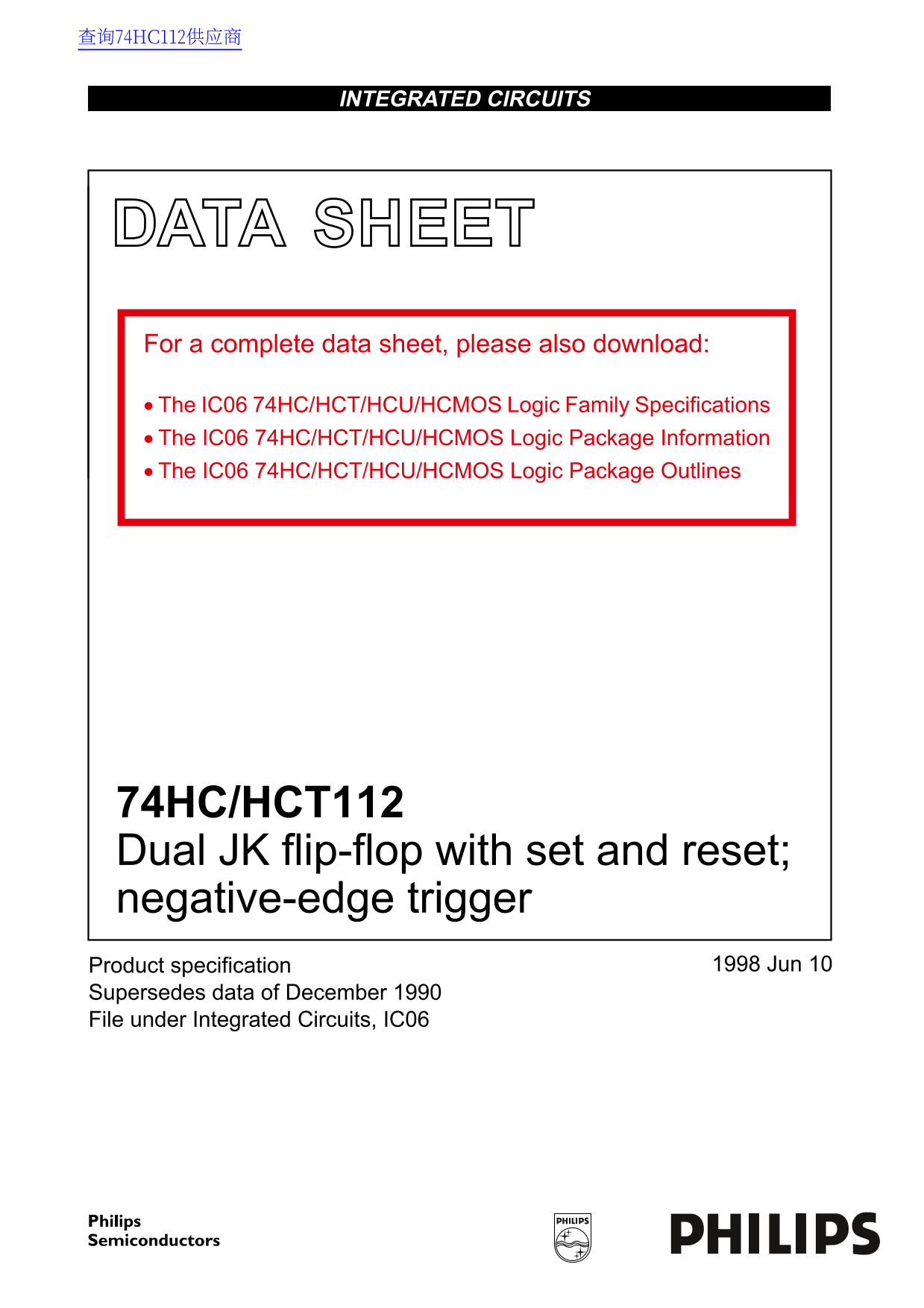

DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Information The IC06 74HC/HCT/HCU/HCMOS Logic Package Outlines
74HC/HCT112 Dual JK flip-flop with set and reset; negative-edge trigger
Product specification Jun
Supersedes data of December File under Integrated Circuits, IC06
Page Summary Contents For Philips 74HC HCT112 Data Handbook
Page 1
查询74HC112供应商 INTEGRATED CIRCUITS DATA SHEET For a complete data sheet, please also download: The IC06 74HC/HCT/HCU/HCMOS Logic Family Specifications The IC06 74HC/HCT/HCU/HCMOS Logic Package Informati...
Page 2
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger FEATURES The set and reset inputs, when LOW, set or reset the outputs as shown in t...
Page 3
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger ORDERING INFORMATION PACKAGE TYPE NUMBER NAME DESCRIPTION VERSION 74HC112D; SO16 pl...
Page 4
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger FUNCTION TABLE INPUTS OUTPUTS OPERATING MODE n SD n RD n CP n J n K n Q n Q asynchr...
Page 5
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger DC CHARACTERISTICS FOR 74HC For the DC characteristics see “74HC/HCT/HCU/HCMOS Logi...
Page 6
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger AC CHARACTERISTICS FOR 74HC GND 0 V; tr tf 6 ns; CL 50 p F Tamb (°C) TEST CONDITION...
Page 7
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger DC CHARACTERISTICS FOR 74HCT For the DC characteristics see “74HC/HCT/HCU/HCMOS Log...
Page 8
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger AC CHARACTERISTICS FOR 74HCT GND 0 V; tr tf 6 ns; CL 50 p F Tamb (°C) TEST CONDITIO...
Page 9
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger AC WAVEFORMS (1) HC : VM 50%; VI GND to VCC. HCT: VM 1.3 V; VI GND to 3 V. The shad...
Page 10
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger PACKAGE OUTLINES SO16: plastic small outline package; 16 leads; body width 3.9 mm S...
Page 11
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger SSOP16: plastic shrink small outline package; 16 leads; body width 5.3 mm SOT338-1 ...
Page 12
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; se at in pl an 74HC/HCT112 negative-edge trigger DIP16: plastic dual in-line package; 16 leads (300 mil); long body S...
Page 13
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger TSSOP16: plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT...
Page 14
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger SOLDERING between 50 and seconds depending on heating method. Introduction Typical ...
Page 15
Philips Semiconductors Product specification Dual JK flip-flop with set and reset; 74HC/HCT112 negative-edge trigger one operation within 2 to 5 seconds between and °C. DEFINITIONS Data sheet status O...
