Philips 74F776 Pi-bus transceiver integrated circuit data sheet provides complete specifications for this octal latched transceiver designed for high-performance backplane applications. Features 100mA open collector B-port drivers capable of driving impedances down to 10 ohms, reduced 1V voltage swing for low noise and power consumption, built-in precision band-gap reference for accurate receiver thresholds, controlled output ramp for minimal ground bounce, and glitch-free power sequencing. Comp
Page 1 Text Content

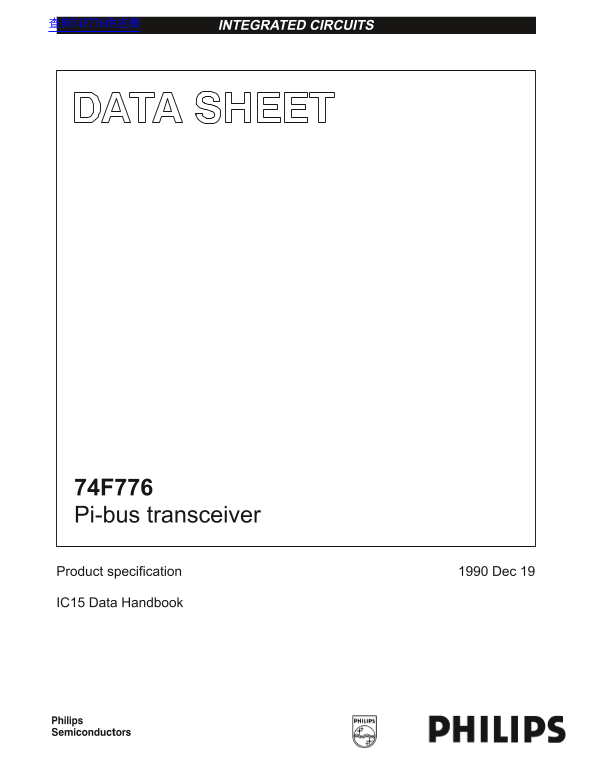

INTEGRATED CIRCUITS查询74F776供应商
74F776 Pi-bus transceiver
Product specification 1990 Dec 19
IC15 Data Handbook
Page Summary Contents For PHILIPS 74F776 Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 12 |
| File Size | 115.35 KB |
| Published | June 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the 74F776 transceiver?
It is an octal bidirectional latched transceiver designed to provide the electrical interface for a high-performance wired–OR bus.
How does the B port differ from the A port in operation?
The B port uses low-capacitance open collector drivers with controlled ramp, while the A port uses TTL 3-state drivers and receivers.
Is this transceiver suitable for high bandwidth applications?
Yes, it features reduced voltage swing (1V to 2V) on the B port, resulting in excellent noise immunity and high bandwidth operation.
What is the specified industrial operating temperature range?
The device supports an industrial temperature range of –40°C to +85°C.
