PHILIPS 74AHC1G32 74AHCT1G32 DATA SHEET
Summary
Integrated circuit datasheet for the Philips 74AHC1G32 and 74AHCT1G32 single 2-input OR gate in 5-pin packages (SC-88A SOT353 and SC-74A SOT753). Si-gate CMOS with symmetrical output impedance, high noise immunity, and ESD protection exceeding 2000V HBM/200V MM/1000V CDM. Balanced propagation delays of 3.2-3.3ns at 5V with 15pF load. Low power dissipation: 16-17pF power dissipation capacitance at 1MHz. Specified over -40 to +125 degrees C full temperature range. Multiple small packaging options for space-constrained designs.
Page 1 Text Content

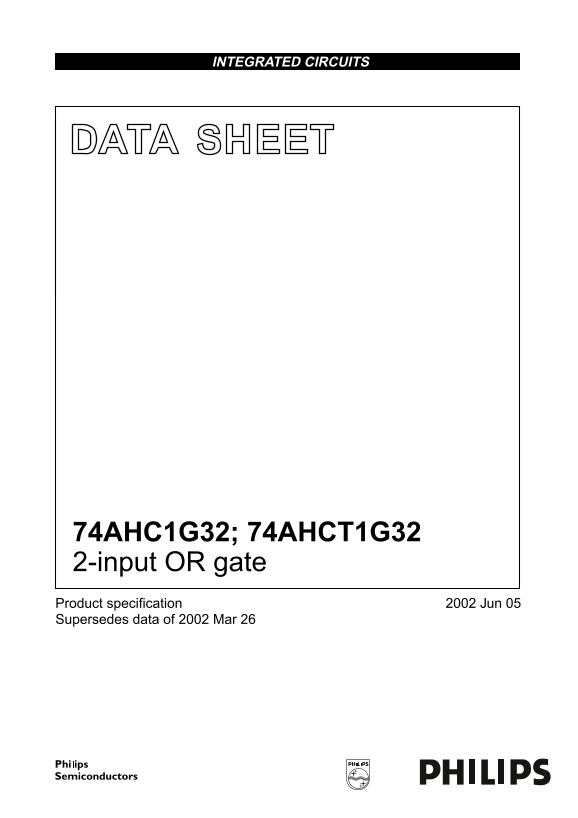

INTEGRATED CIRCUITS
DATA SHEET
74AHC1G32; 74AHCT1G32 2-input OR gate Product specification Jun Supersedes data of 2002 Mar
Page Summary Contents For PHILIPS 74AHC1G32 74AHCT1G32 DATA SHEET
Page 1
INTEGRATED CIRCUITS DATA SHEET 74AHC1G32; 74AHCT1G32 2-input OR gate Product specification Jun Supersedes data of 2002 Mar
Page 2
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 FEATURES DESCRIPTION Symmetrical output impedance The 74AHC1G/AHCT1G32 is high-speed Si-gate CMOS device. High noise ...
Page 3
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 FUNCTION TABLE See note 1. INPUTS OUTPUT Note 1. HIGH voltage level; LOW voltage level. ORDERING INFORMATION PACKAGE ...
Page 4
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 handbook, halfpage handbook, halfpage MNA165 MNA166 Fig.3 IEC logic symbol. Fig.4 Logic diagram. RECOMMENDED OPERATIN...
Page 5
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 DC CHARACTERISTICS Family 74AHC1G Over recommended operating conditions; voltages are referenced to GND (ground V). T...
Page 6
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 Family 74AHCT1G Over recommended operating conditions; voltages are referenced to GND (ground V). TEST CONDITIONS Tam...
Page 7
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 AC CHARACTERISTICS Type 74AHC1G32 GND V; tr tf 3.0 ns. TEST CONDITIONS Tamb (°C) SYMBOL PARAMETER −40 to +85 −40 to +...
Page 8
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 AC WAVEFORMS handbook, halfpage A, B input VM t PHL t PLH Y output VM MNA167 VI INPUT VM FAMILY VM INPUT REQUIREMENTS...
Page 9
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 PACKAGE OUTLINES Plastic surface mounted package; 5 leads SOT353 e1 BMbp Lp detail X scale DIMENSIONS (mm are the ori...
Page 10
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 Plastic surface mounted package; 5 leads SOT753 detail X scale DIMENSIONS (mm are the original dimensions) UNIT A1 bp...
Page 11
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 SOLDERING If wave soldering is used the following conditions must be observed for optimal results: Introduction to so...
Page 12
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 Suitability of surface mount IC packages for wave and reflow soldering methods SOLDERING METHOD PACKAGE(1) WAVE REFLO...
Page 13
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 DATA SHEET STATUS PRODUCT DATA SHEET STATUS(1) DEFINITIONS STATUS(2) Objective data Development This data sheet conta...
Page 14
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 NOTES
Page 15
Philips Semiconductors Product specification 2-input OR gate 74AHC1G32; 74AHCT1G32 NOTES
Page 16
Philips Semiconductors – a worldwide company Contact information For additional information please visit http://www.semiconductors.philips.com. Fax: +31 For sales offices addresses send e-mail to: sal...
Manual Details
| Brand | Philips |
|---|---|
| Pages | 16 |
| File Size | 74.62 KB |
| Published | June 16, 2026 |
1 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the ESD protection levels for this device?
ESD protection exceeds 2000 V (HBM), 200 V(MM), and 1000 V (CDM).
What is the recommended operating temperature range?
The component is specified to operate from −40 to +125 °C.
How do I calculate dynamic power dissipation?
P = C × V × f +(C ×V × f ), using appropriate input and output capacitance values.
What are the minimum supply voltage requirements for operation?
The minimum specified operating Vcc is 2.0V, with a maximum of 5.5V.
