PHILIPS 1PS10SB82 Data Sheet
Summary
Optimize your miniature electronics with the 1PS10SB82 Schottky barrier diode. Featuring a low forward voltage and compact leadless SOD882 package, this component is engineered for demanding applications such as mobile communication circuits, UHF mixers, modulators, and digital cameras. The manual provides comprehensive data—including detailed electrical, thermal resistance, and packaging specifications—allowing designers to efficiently integrate reliable, high-performance signal handling into even the smallest circuit designs.

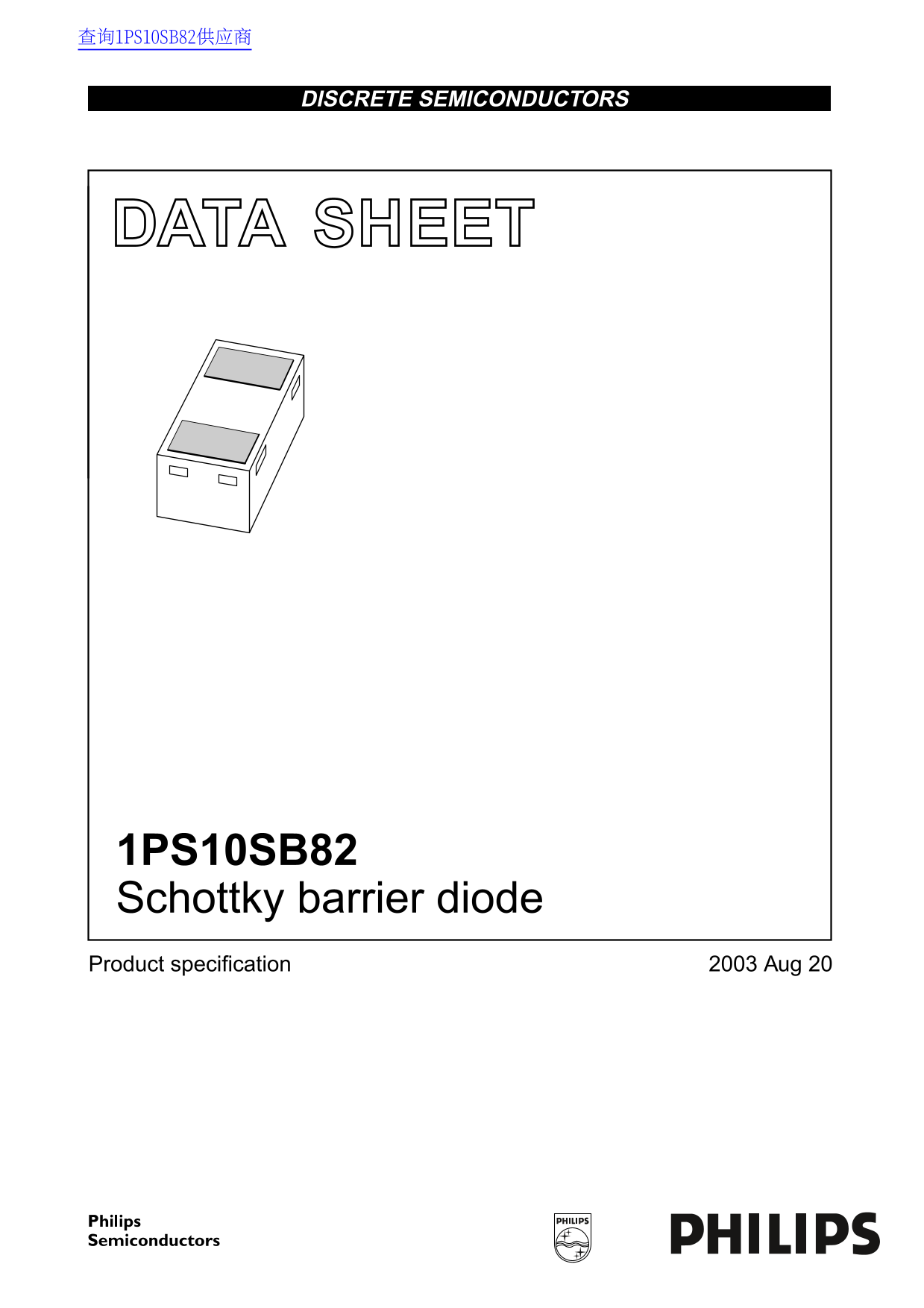

Page 1 Text Content
查询1PS10SB82供应商
DISCRETE SEMICONDUCTORS
DATA SHEET
BOTTOM VIEW
1PS10SB82 Schottky barrier diode Product specification Aug
Page Summary Contents For PHILIPS 1PS10SB82 Data Sheet
Manual Details
| Brand | Philips |
|---|---|
| Pages | 7 |
| File Size | 47.54 KB |
| Published | July 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How is the product packaged and what are its dimensions?
It uses a leadless ultra small plastic package (SOD882) with body dimensions of 1.0 mm × 0.6 mm × 0.5 mm.
What soldering method is recommended for installation?
Reflow soldering is the only recommended soldering method.
What are the basic operating parameters for reverse voltage and forward current?
Maximum continuous reverse voltage is -15 V, and maximum continuous forward current is -30 mA.
Where can this Schottky barrier diode be used in applications?
It can be used in UHF mixers, sampling circuits, modulators, phase detectors, mobile communication, cameras, PDA’s, and PCMCIA cards.
