Summary
Experience robust switching capabilities with this logic-level TOPFET power MOSFET. Designed for general-purpose applications, it seamlessly integrates 5V logic control while providing critical safety features including overvoltage clamping, short-circuit, and overtemperature protection. The accompanying manual offers comprehensive technical specifications, detailed thermal models, và absolute maximum ratings necessary for reliable system design, making it ideal for driving inductive or high-power loads directly from microcontrollers.

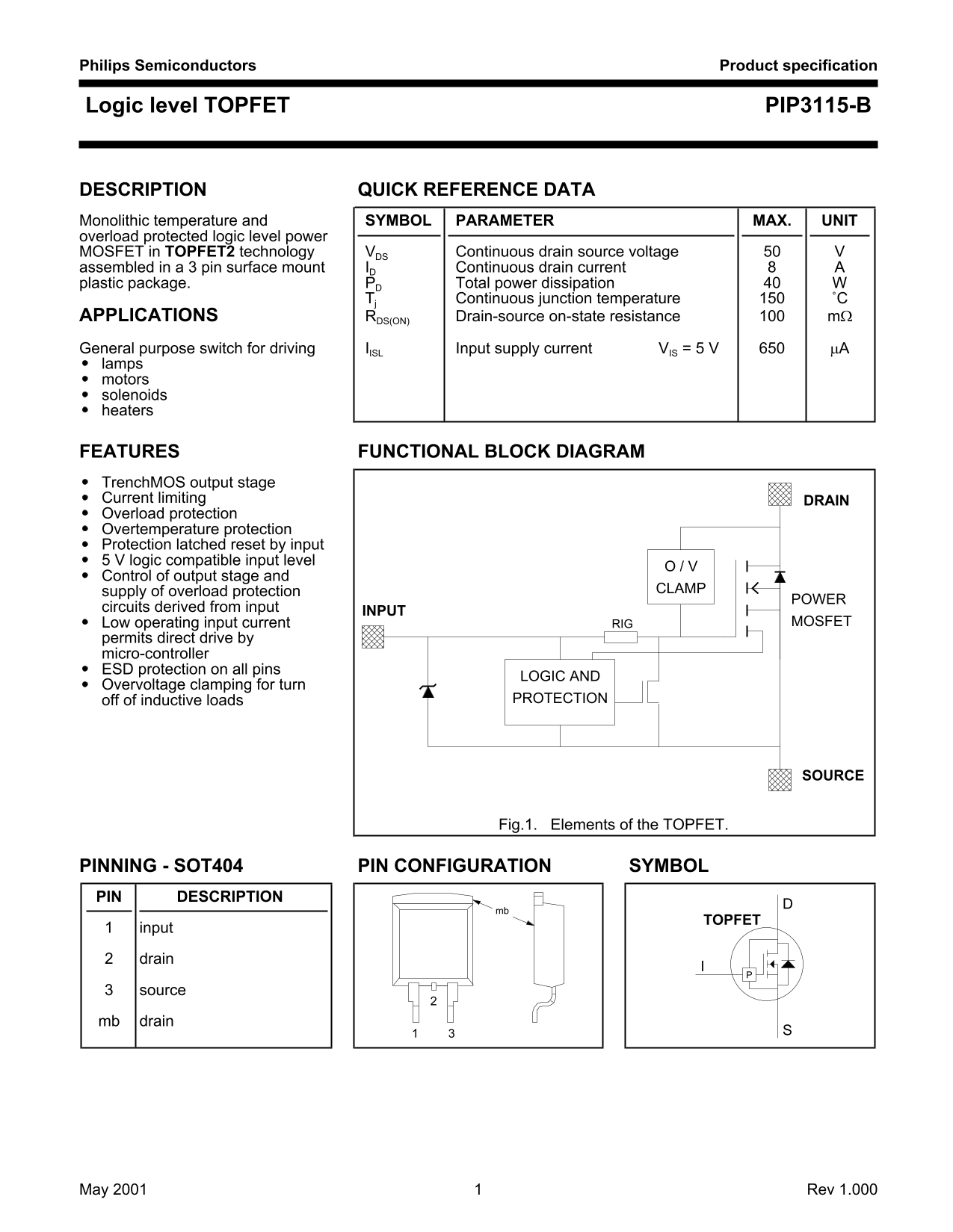

Page 1 Text Content
Philips Semiconductors Product specification
Logic level TOPFET PIP3115-B
DESCRIPTION QUICK REFERENCE DATA Monolithic temperature and SYMBOL PARAMETER MAX. UNIT overload protected logic level power
MOSFET in TOPFET2 technology VDS Continuous drain source voltage
assembled in a 3 pin surface mount ID Continuous drain current plastic package. PD Total power dissipation
Tj Continuous junction temperature ˚C
APPLICATIONS RDS(ON) Drain-source on-state resistance mΩ
General purpose switch for driving IISL Input supply current VIS = 5 V µA
lamps motors solenoids heaters
FEATURES FUNCTIONAL BLOCK DIAGRAM Trench MOS output stage Current limiting DRAIN Overload protection Overtemperature protection Protection latched reset by input 5 V logic compatible input level
Control of output stage and
supply of overload protection CLAMP
POWER
circuits derived from input
INPUT
Low operating input current RIG MOSFET
permits direct drive by micro-controller ESD protection on all pins
LOGIC AND
Overvoltage clamping for turn
off of inductive loads PROTECTION
SOURCE
Fig.1. Elements of the TOPFET.
PINNING - SOT404 PIN CONFIGURATION SYMBOL PIN DESCRIPTION
TOPFET
input drain
source mb drain
May 2001 Rev 1.000
Page Summary Contents For NXP - Philips Semiconductors Product Specification Logic Level TOPFET PIP3115-B Owner's Manual
Manual Details
| Brand | Philips |
|---|---|
| Pages | 6 |
| File Size | 30.16 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How is the TOPFET protected from damage during operation?
It features internal overload protection and overtemperature trip circuits to safeguard the switch.
What are the primary electrical limits of this component?
The device handles a continuous drain source voltage up to 50V and a continuous current of 8A at V=5V.
Does this product suit mission-critical or life support applications?
No, these products are explicitly not designed for use in life support appliances or critical systems.
What kind of external circuitry is required for optimal performance?
It requires an adequate protection supply provided via the input pin to ensure full overload protection function.
